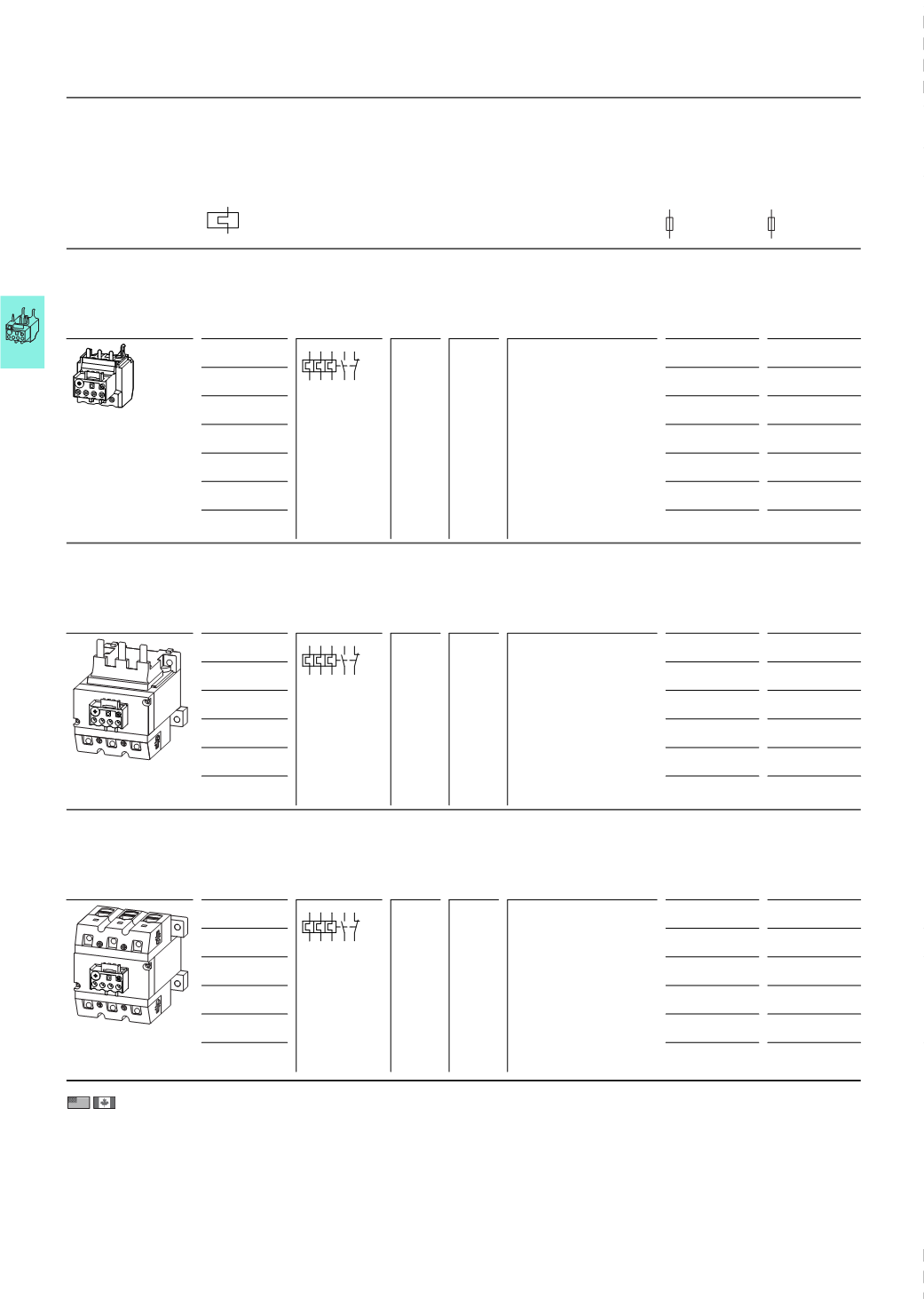

6/10 Overload relays
Overload relays up to 150A
2010 CA08103002Z-EN
Setting range of
overload
releases
Circuit symbol Auxiliary contact For use with Short-circuit protection
N/O=normallyopencontact
NC=normallyclosedcontact
Type “1”
coordination
Type “2”
coordination
Ir gG/gL gG/gL
A A A
ZB65 overload relay
• Phase failure sensitivity to IEC/EN 60947, VDE 0660 Part 102
• Test/off pushbutton
• Reset pushbutton manual/auto
• Trip-free release
• Direct mounting
6 – 10 1 N/O 1 NC DILM40, DILM50,
DILM65,
DILM72,
DILMF40,
DILMF50,
DILMF65,
DIULM40, DIULM50,
DIULM65,
SDAINLM70,
SDAINLM90,
SDAINLM115
50 25
10 – 16 63 35
16 – 24 63 50
24 – 40 125 63
40 – 57 160 80
50 – 65 160 100
65 – 75 250 160
ZB150 overload relay
• Phase failure sensitivity to IEC/EN 60947, VDE 0660 Part 102
• Test/off pushbutton
• Reset pushbutton manual/auto
• Trip-free release
• Direct mounting
35 – 50 1 N/O 1 NC DILM80, DILM95,
DILM115, DILM150,
DILM170
DILMF80,
DILMF95,
DILMF115,
DILMF150,
DIULM80, DIULM95,
DIULM115, DIULM150,
SDAINLM140,
SDAINLM165,
SDAINLM200,
SDAINLM260
160 125
50 – 70 250 160
70 – 100 315 200
95 – 125 315 250
120 – 150 315 250
145 – 175 315 250
ZB150 overload relay
• Phase failure sensitivity to IEC/EN 60947, VDE 0660 Part 102
• Test/off pushbutton
• Reset pushbutton manual/auto
• Trip-free release
• Separate mounting
35 – 50 1 N/O 1 NC DILM80, DILM95,
DILM115, DILM150,
DILM170
DILMF80,
DILMF95,
DILMF115,
DILMF150,
DIULM80, DIULM95,
DIULM115, DIULM150,
SDAINLM140,
SDAINLM165,
SDAINLM200,
SDAINLM260
160 125
50 – 70 250 160
70 – 100 315 200
95 – 125 315 250
120 – 150 315 250
145 – 175 400 315
Information relevant for export to North America
Product Standards UL 508; CSA-C22.2 No. 14; IEC/EN 60947-4-1; CE marking
UL File No. E29184
UL CCN NKCR
CSA File No. 12528
CSA Class No. 3211-03
NA Certification UL Listed, CSA certified
Suitable for Branch circuits
Max. Voltage Rating 600 V AC
Degree of Protection IEC: IP00, UL/CSA Type: -
See also ￫Page 6/29
2 4 6 98 96
97 95
2 4 6 98 96
97 95
2 4 6 98 96
97 95
