Optical sensors 3/101

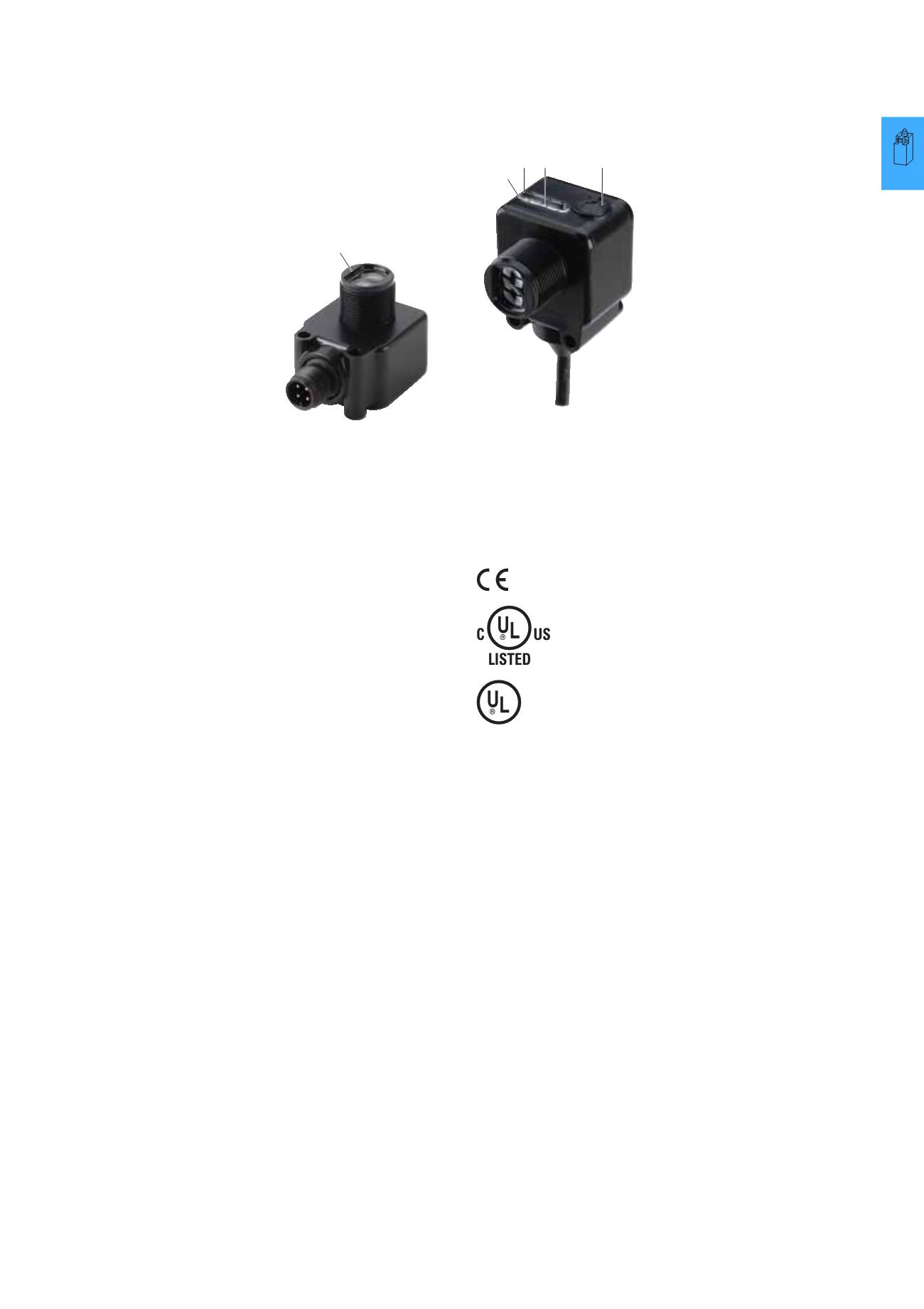

Optical sensorsE65SMSeriesDescription
① 18 mm thread
② Power lamp (green)
③ Output lamp (red)
④ Targetlock™ lamp (orange)
⑤ Gain adjustment
a
b
c d e
Short description
Eaton’s SM series photoelectric
sensors offer a high performance
and simple use in a compact, cost-
effective design. Regardless howgood
a sensor’s performance just a slight
maladjustment or incorrectly posi-
tioned target will sooner or later
impact reliability.
In addition to simplifying sensor setup,
TargetLock™ provides visual confir-
mation of the correct mounting posi-
tion for optimum reliability.
In addition TargetLock™ outputs diag-
nostic information during operation,
which provides an early warning about
potential problems to help prevent
costly downtimes. No other sensor is
easier to use.
The SM sensors offer numerous
performance features that simplify
their use. A visible sensing beam
shows you exactly where the sensor is
pointing. The durable enclosure
features multiple fixing possibilities to
easily fit on your equipment in the
tightest of spaces. Full protection from
overvoltage, reverse polarity and short
circuits reduces the chance of
damage. Bright 360° LED indicators
clearly show sensor status.
Product features
• Bright indicators for power, output,
and TargetLock™.
• TargetLock™ simplifies setup
and ensures a high operational
reliability.
• The Perfect Prox® models detect
targets with different colors at the
same range while ignoring back-
ground objects.
• AC/DC models work with
18 – 264 V AC or 18 – 50 V DC.
• DC-only models feature PNP and
NPN outputs.
• Visible sensing beam on all models
lets you see where the beam is
aimed for quick flush mounting and
alignment.
• Compact design for space-saving
flush mounting.
• Range of fixing possibilities,
including standard 18 mm thread.
• Short-circuit, overload and protec-
tion against polarity reversal.
• Full family includes thru-beam,
polarized reflex, diffuse reflective
and Perfect Prox® background
rejection.
Approvals
