120 / 336
Position Switches
Safety position switches
2010 CA08103002Z-EN
www.eaton.comLS-Titan
3/7

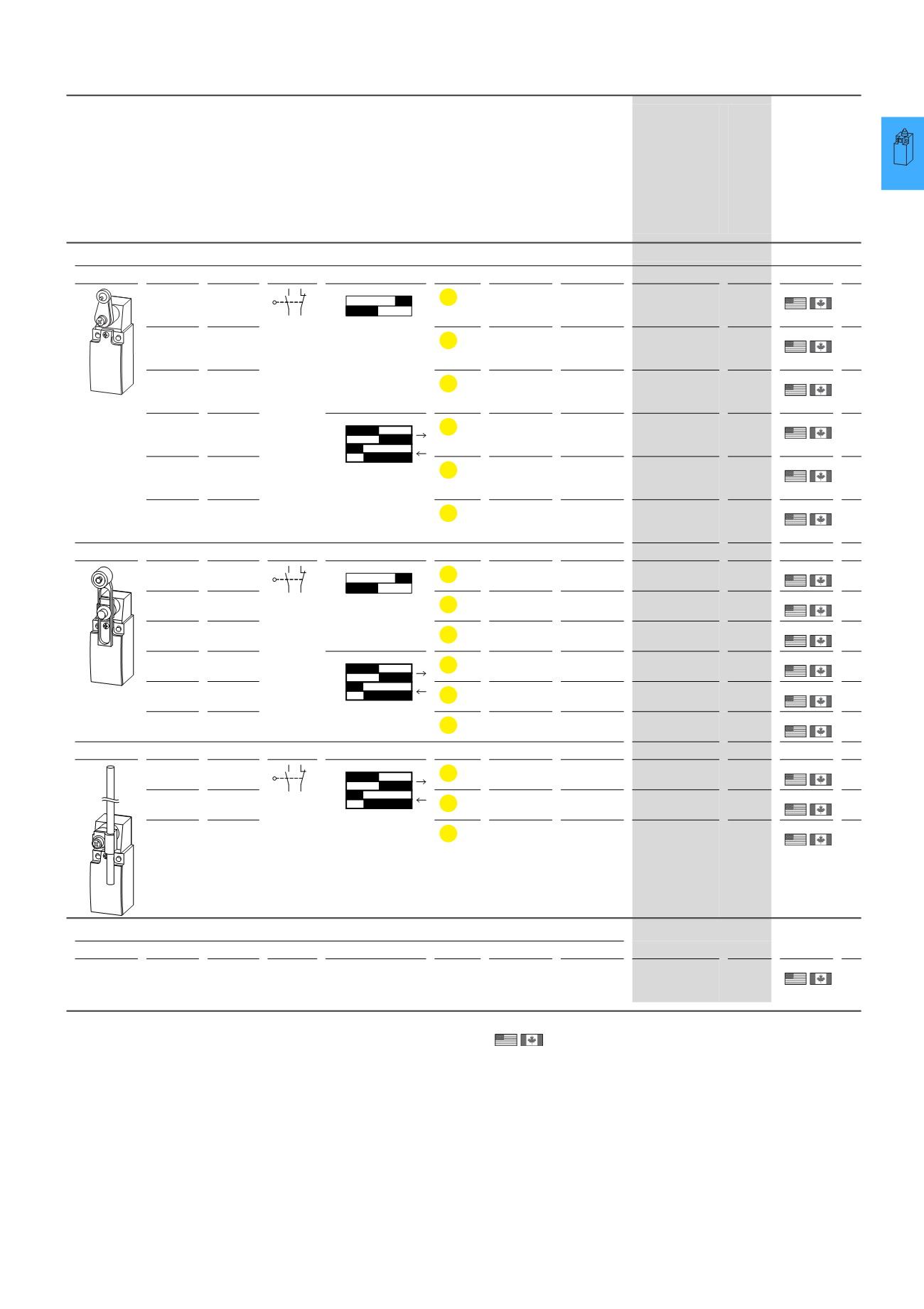

LS-TitanSafetyposition switches
Contact configuration Circuit
symbol
Contact travel
■ = Contact closed
□ = Contact open
Color
Enclosure
covers
Enclosure Connection
type
Part no.
Article no.
Price
See
price
list
Std. pack
Positive opening
safety function
according to
IEC/EN 60947-5-1
N/O =
normally open
contact
NC =
normally
closed contact
Complete units
Rotary lever, IP66, IP67
1 N/O 1 NC
plastic
EN 50047
Form A
Cage Clamp
LS-11/RL
266111
2 off
1) 2)
1 N/O 1 NC
metal
EN 50047
Form A
Cage Clamp
LSM-11/RL
266146
2 off
1) 2)
1 N/O 1 NC
plastic
EN 50047
Form A
Screwed
terminal
LS-S11/RL
106789
2 off
2)
1 N/O 1 NC
plastic
EN 50047
Form A
Cage Clamp
LS-11S/RL
266117
2 off
1) 2)
1 N/O 1 NC
plastic
EN 50047
Form A
Screwed
terminal
LS-S11S/RL
106802
2 off
2)
1 N/O 1 NC
metal
EN 50047
Form A
Cage Clamp
LSM-11S/RL
266152
2 off
1) 2)
Adjustable roller levers, IP66, IP67
1 N/O 1 NC
plastic
Cage Clamp
LS-11/RLA
266113
2 off
1) 2)
1 N/O 1 NC
plastic
Screwed
terminal
LS-S11/RLA
106790
2 off
2)
1 N/O 1 NC
metal
Cage Clamp
LSM-11/RLA
266148
2 off
1) 2)
1 N/O 1 NC
plastic
Cage Clamp
LS-11S/RLA
266119
2 off
1) 2)
1 N/O 1 NC
plastic
Screwed
terminal
LS-S11S/RLA
106803
2 off
2)
1 N/O 1 NC
metal
Cage Clamp
LSM-11S/RLA
266154
2 off
1) 2)
Actuating rodIP66, IP67
1 N/O 1 NC
plastic
Cage Clamp
LS-11S/RR
266106
4 off
1) 2)
1 N/O 1 NC
plastic
Screwed
terminal
LS-S11S/RR
106804
4 off
2)
1 N/O 1 NC
metal
Cage Clamp
LSM-11S/RR
266141
4 off
1) 2)
Customer specific complete units IP66, IP67
(*) Use-definable customer ID or stock no.: up to 10 characters
plastic
–
LS-
COMBINATION-*
266168
1 off
1) 2)
Notes
1)
Cage Clamp is a registered trademark of Wago Kontakttechnik,
32432 Minden, Germany.
Accessories for the Cage Clamp terminals from Wago:
Jumper insert, grey, Wago article no. 264-402
2)
The operating head can be rotated at 90° intervals to adapt to
the specified operating direction.
Information relevant for export to North America
Product Standards
IEC/EN 60947-5; UL 508; CSA-C22.2 No. 14;
CE marking
UL File No.
E29184
UL CCN
NKCR
CSA File No.
12528
CSA Class No.
3211-03
NA Certification
UL Listed, CSA certified
Degree of Protection
IEC: IP66, 67, UL/CSA Type 3R, 4X
(indoor use only), 12, 13
14 22
21
13
13-14
21-22
NO
NC
Zw= 48˚
32˚
0˚
46˚
65˚
13-14
13-14
21-22
21-22
Zw= 60˚
15˚
0˚
30˚
65˚
14 22
21
13
13-14
21-22
NO
NC
Zw= 48˚
32˚
0˚
46˚
65˚
13-14
13-14
21-22
21-22
Zw= 60˚
15˚
0˚
30˚
65˚
14 22
21
13
13-14
13-14
21-22
21-22
Zw= 60˚
15˚
0˚
30˚
65˚
HPL03007EN
