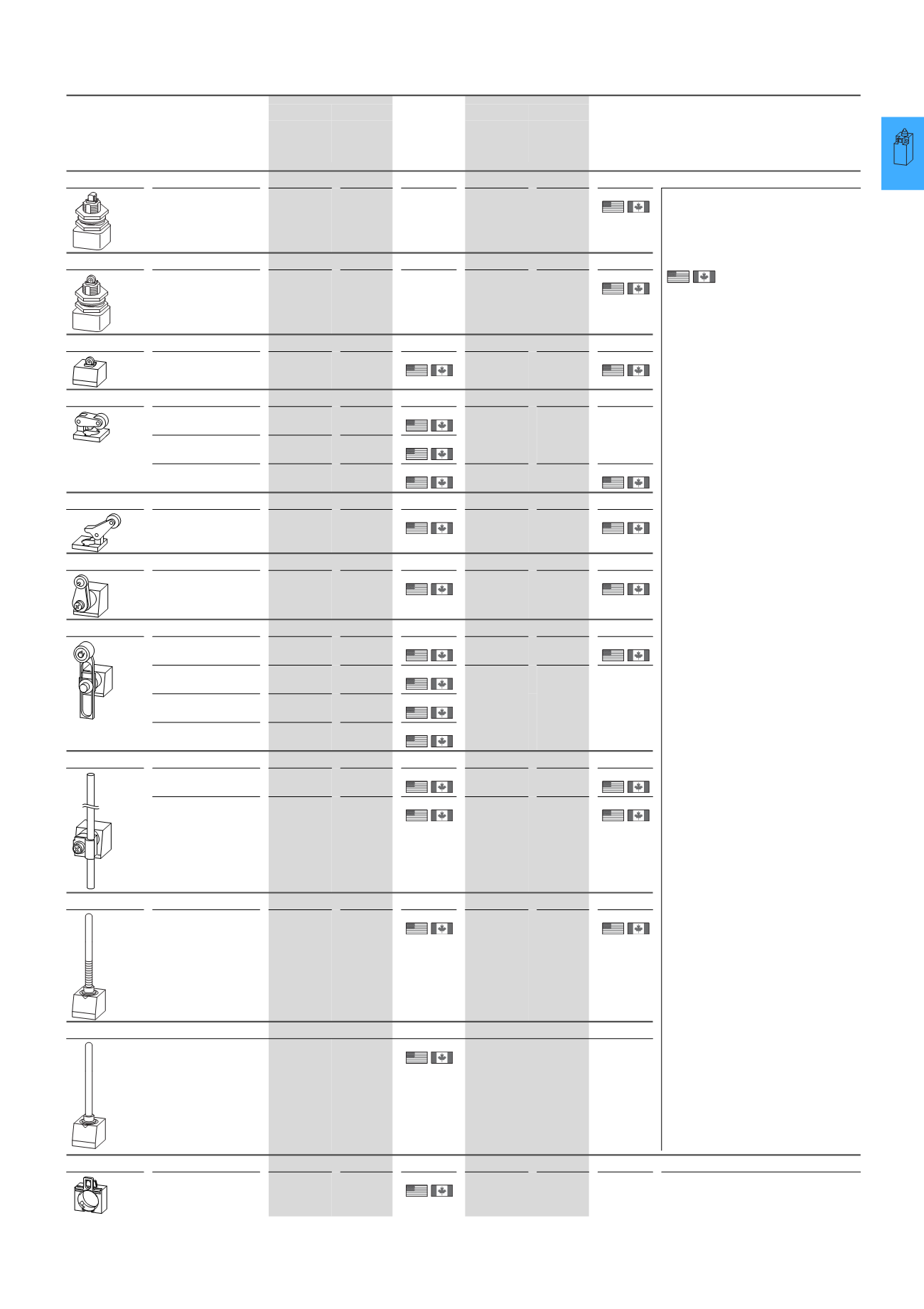

122 / 336
Position Switches
Operating heads
2010 CA08103002Z-EN
www.eaton.comLS-Titan
3/9
LS-TitanOperatingheads
plastic
metal
Part no.
Article no.
Price
See price
list
Std. pack
Part no.
Article no.
Price
See price
list
Std. pack
Notes
Rounded plunger, center fixing
For installation in
M18 × 1 enclosure
wall or mounting plate
drilling
LS-XZS
114024
1 off
The operating head can be rotated
at 90° intervals to adapt to the specified
operating direction.
Information relevant for export to
North America
Product Standards IEC/EN 60947-5;
UL 508;
CSA-C22.2 No. 14;
CE marking
UL File No.
E29184
UL CCN
NKCR
CSA File No.
12528
CSA Class No.
3211-03
NA Certification
UL Listed,
CSA Certified
Roller plunger, center fixing
For installation in
M18 × 1 enclosure
wall or mounting plate
drilling
LS-XZRS
114025
1 off
Roller plunger
–
LS-XP
266125
10 off
LSM-XP
266158
10 off
Roller lever
Large
LS-XLB
290178
5 off
Short
LS-XLS
290177
1 off
Long
LS-XL
266123
10 off
LSM-XL
266156
10 off
Angled roller lever
–
LS-XLA
266124
10 off
LSM-XLA
266157
10 off
Rotary lever
–
LS-XRL
266126
5 off
LSM-XRL
266159
5 off
Adjustable roller lever
D = 18 mm
LS-XRLA
266127
4 off
LSM-XRLA
266160
4 off
D = 30 mm
LS-XRLA30
266128
5 off
D = 40 mm (rubber)
LS-XRLA40R
266130
5 off
D = 40 mm
LS-XRLA40
266129
5 off
Actuating rod
Rod from insulated
material
LS-XRR
266131
4 off
LSM-XRR
266161
4 off
Metal rod
LS-XRRM
266132
4 off
LSM-XRRM
266162
4 off
Spring rod
Not to be used as a
safety position switch
Use only in conjunc-
tion with snap-action
contact.
LS-XS
266133
5 off
LSM-XS
266163
5 off
Actuating rod
–
LS-XOR
290190
1 off
Fixing adapters
Actuation through
front element
RMQ-Titan
®
M22-LS
266137
10/1 off
UL/CSA certification not required
