3/2 Position Switches
Safety position switches
LS-Titan
2010 CA08103002Z-EN
www.eaton.comSafetyposition switchesLS-Titan

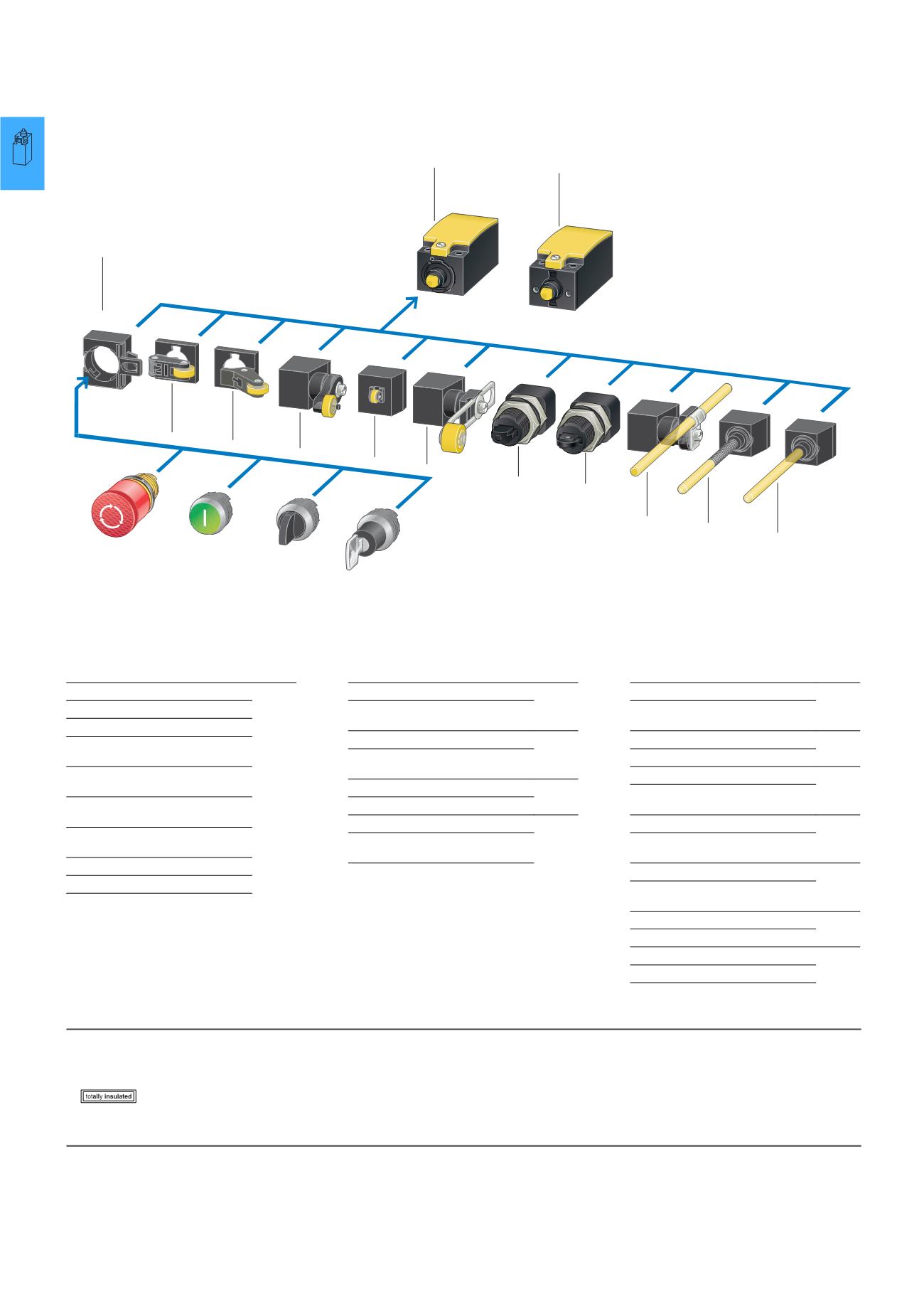

System overview
2
1
1
3
4
5
6
7
8
9
12
11
10
LS, LSM
Basic units
Basic Unit
1
According to EN 50047
With screw-on cover
Contact configuration: 1N/O / 1NC,
2N/O, 2NC
Cage Clamp, Screw terminals
technology
As snap-action or standard-action
switch
As electronic snap-action
switch,(individually adjustable)
As 4-20 mA analog signal encoder
As 0-10 VDC analog signal encoder
￫Page 3/3
Operating heads
Can be rotated by 90°
Fixing adapters
2
Actuation through front element
RMQ-Titan®
Roller lever
3
For one-sided operation with higher
operating speed
Angled roller lever
4
For actuation along the unit axis
Rotary lever
5
For transverse actuation,
for pendulum movements
￫Page 3/5
Operating heads
Can be rotated by 90°
Roller plunger
6
For transverse actuation with low
actuating force
Adjustable roller lever
7
For length adjustment as required
Rounded plunger, center fixing
8
For mounting in enclosure wall or
mounting plate drilling M18 x 1
Roller plunger, center fixing
9
For mounting in enclosure wall or
mounting plate drilling M18 x 1
Actuating rod
10
On conveyor belts for lightweight
goods
Spring rod
11
For flexible actuation from all sides
Actuating rod
12
Withdrawable mechanism from front
￫Page 3/5
LS, LSM product features
• Modular system
• IP65 and IP66 protection type
(except LSM)
• Personnel protection
• Positive operation
• Safety function with
positively opening contacts to
IEC/EN 60947-5-1
up to Category 4 to EN 954-1
• Suitable for use with electronic
units to IEC/EN 61131-2
• Devices for world markets
