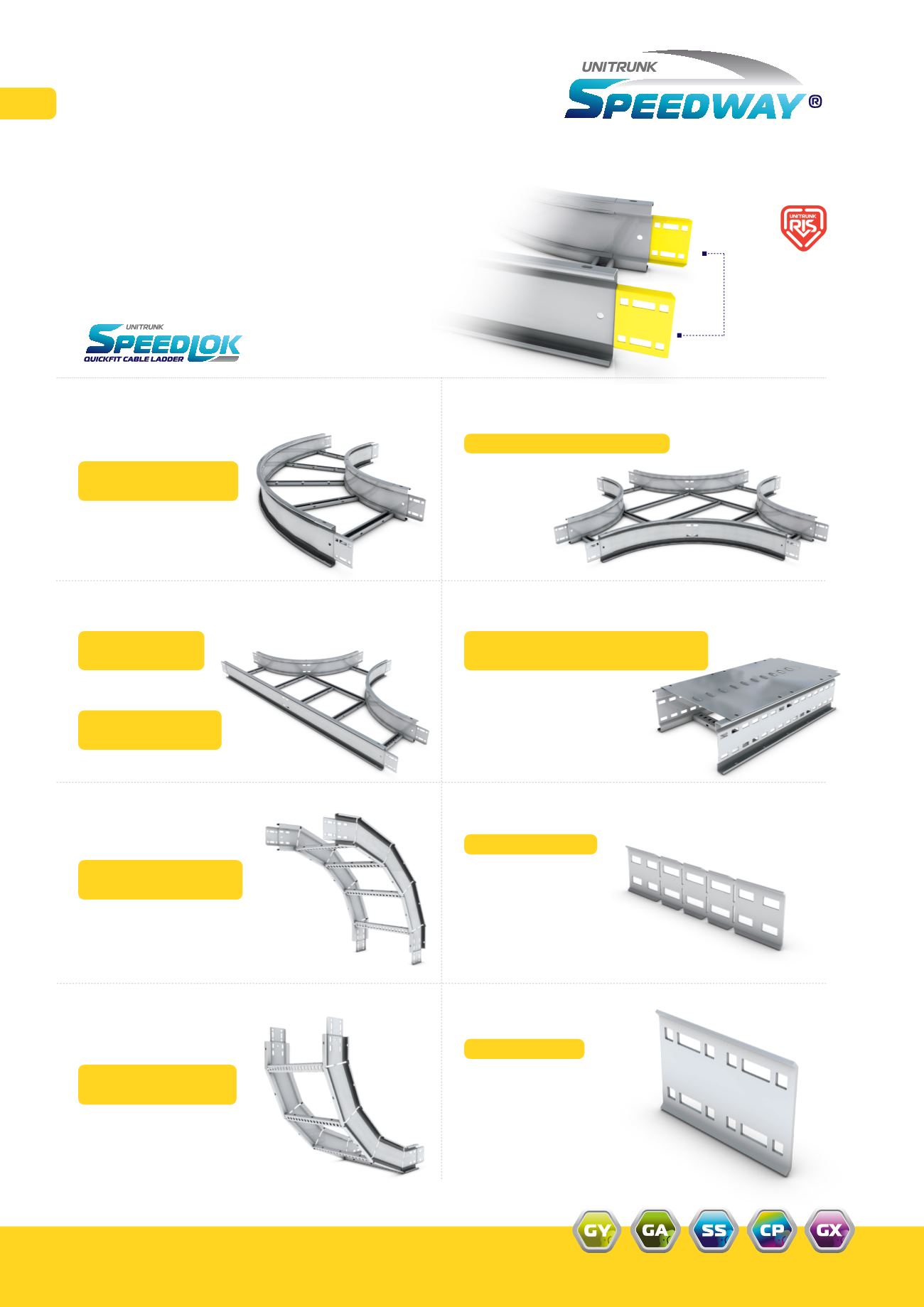

SPEEDWAY CABLE LADDER SYSTEMS
Product Finishing Key (See page 82)
Flat Elbow
30
˚
, 45
˚
, 60
˚
, 90
˚
Ref.SW-/FE Angle/Width
/Radius/Finish
Cross
Ref.SW-/C/Width/Radius/Finish
Equal Tee
Ref.SW-/ET/Width/
Radius/Finish
Ref.SW-/UET/W1/W2/
Radius/Finish
Covers
SW/CC/SL1.5/Width/Finish (Closed)
SW/CL/SL1.5/Width/Finish (Louvered)
Supplied c/w fixings.
Please note straight ladder covers
are supplied in 1.5m lengths.
Riser (Outside)
30
˚
, 45
˚
, 60
˚
, 90
˚
Ref.SW-/OR Angle/Width
/Radius/Finish
Riser (Inside)
30
˚
, 45
˚
, 60
˚
, 90
˚
Ref.SW-/IR Angle/Width
/Radius/Finish
Straight Coupler
Ref.SW-/CS/Finish
Sold in pairs.
Supplied c/w fixings.
1 Pair per ladder.
Short Adjustable Coupler
Ref. SW-/SAC/Finish
Overall length 300mm.
Used as an alternative to
Reducers/unequal tees.
Supplied c/w fixings.
W1
W1
W2
Cable Ladder Fitting with Speedlock
Integral Coupler
Fast fit, total cost saving through reduction of
the number of couplers and fixings required.
The integral coupler has a formed shape which
increases strength and rigidity and reduces joint
hinging.
Can also be manufactured
unequal.
Integral Coupler
