unitrunk.ieSPEEDWAY CABLE LADDER SYSTEMS
W
W1
H
L
300
Speedway SW
4
Cable Ladder

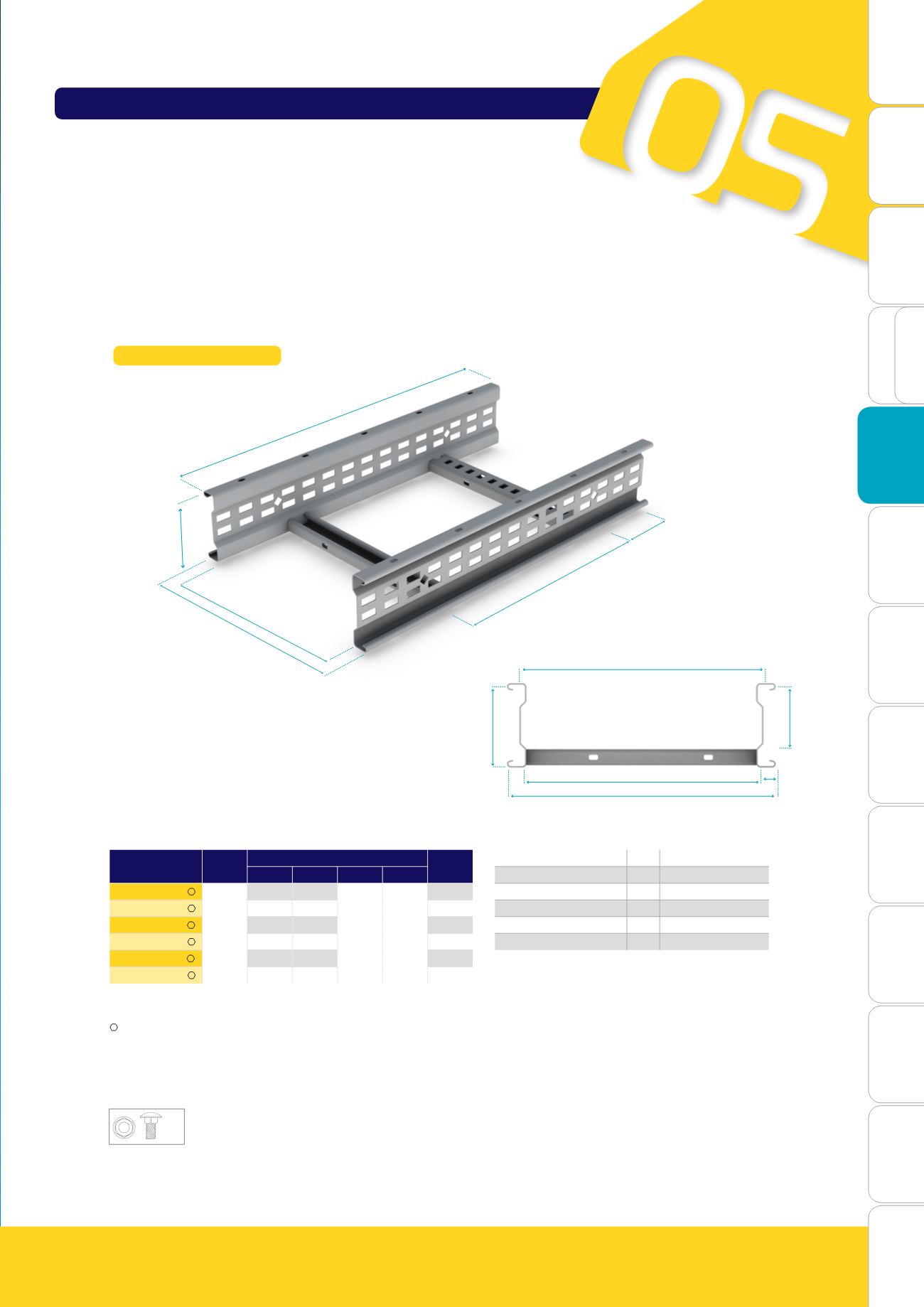

Speedway 4 (SW4) Medium Duty Cable Ladder is manufactured in 3.0m lengths as standard with 6.0m
lengths to order. The cable ladder is available in standard widths of 150mm, 300mm, 450mm, 600mm,
750mm and 900mm, although other widths up to 1050mm are available to order. Rung spacing is
300mm as standard.
Part Number
No. of
Rungs
Dimensions (mm)
Weight
(kg)
W W1
L
H
SW4/SL3/150/
10
150
200
3000 110
13.93
SW4/SL3/300/
300
350
15.55
SW4/SL3/450/
450
500
17.17
SW4/SL3/600/
600
650
18.79
SW4/SL3/750/
750
800
23.12
SW4/SL3/900/
900
950
25.28
Weights shown are for standard hot dip galvanised finish only.
= Select a Finish & Material refer to Page 82
x
0
Supplied with:
Height
H
110mm
Loading Depth
D
85mm
Ladder Width
W 100mm to 1050mm
Maximum Internal Width
W2 W + 14mm
Overall Width
W1 W + 50mm
Flange Width
F
25mm
W2
H
D
W1
W
F
150
Ref.SW4/SL3/Width/Finish
