SPEEDWAY CABLE LADDER SYSTEMS
Product Finishing Key (See page 82)

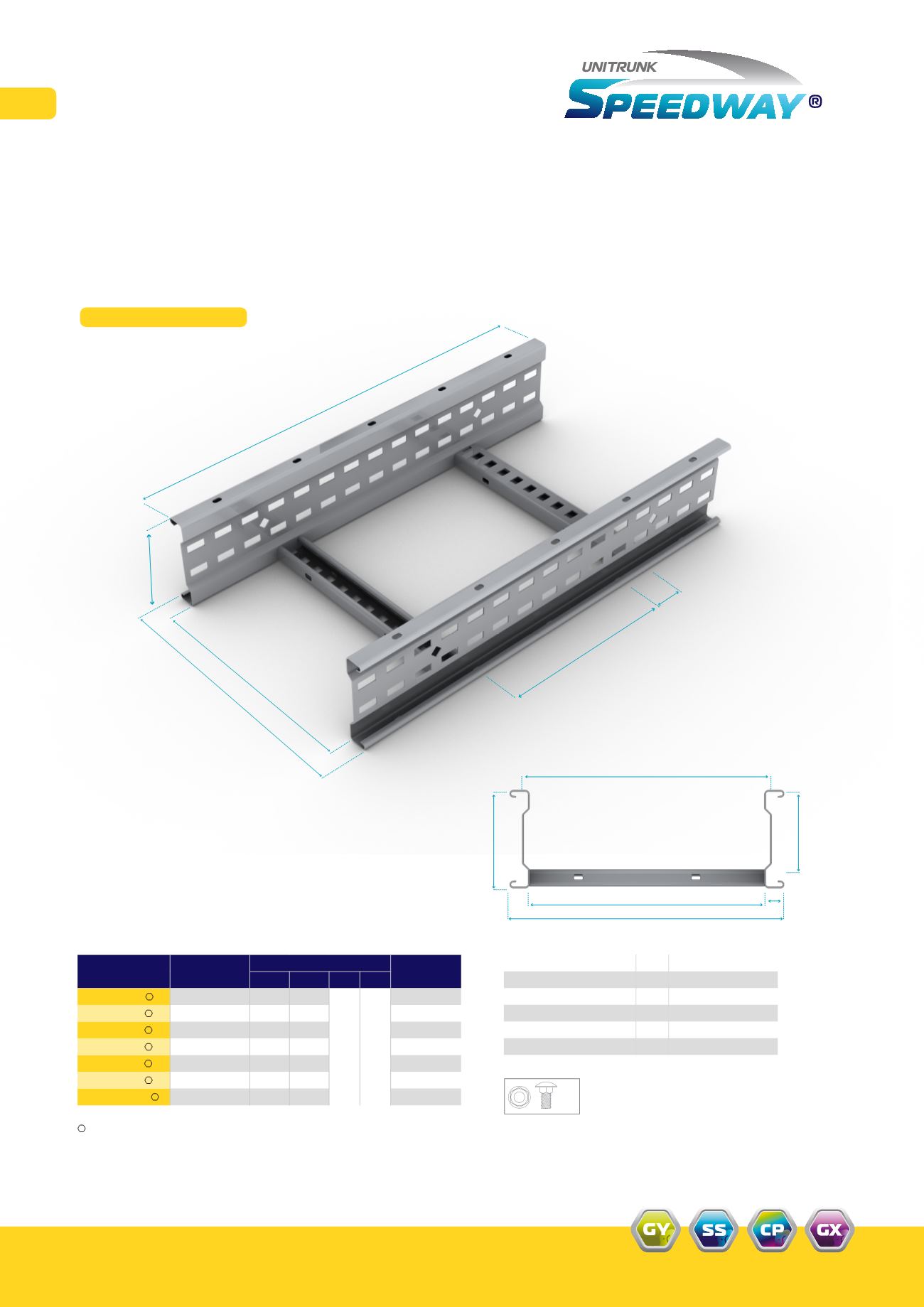

Speedway SW5 Cable Ladder
Speedway 5 (SW5) Heavy Duty Cable Ladder is manufactured in 3.0m lengths as standard with 6.0m lengths
supplied to order. The cable ladder is available in standard widths of 150mm, 300mm, 450mm, 600mm, 750mm,
900mm and 1050mm, although other widths up to 1500mm are available to order. Rung spacing is 300mm
as standard.
Height H 125mm
Loading Depth D 100mm
Ladder Width W 100mm to 1500mm
Overall Width W1 W + 50mm
Maximum Internal Width W2 W + 14mm
Flange Width F 25mm
Weights shown are for standard hot dip galvanised finish only.
Part Number No. of Rungs
Dimensions (mm) Weight
(kg)
W W1 L H
SW5-SL3-150- 10 150 200
3000 125
18.53
SW5-SL3-300- 10 300 350 20.15
SW5-SL3-450- 10 450 500 21.77
SW5-SL3-600- 10 600 650 23.40
SW5-SL3-750- 10 750 800 27.72
SW5-SL3-900- 10 900 950 29.88
SW5-SL3-1050- 10 1050 1100 32.05
= Select a Finish & Material refer to Page 82
x 0
Supplied with:
W1
W2
H
L
150
W2
H
D
W
W1 F
300
Ref.SW5/SL3/Width/Finish
