unitrunk.ieSPEEDWAY CABLE LADDER SYSTEMS
Speedway SW
6
Cable Ladder

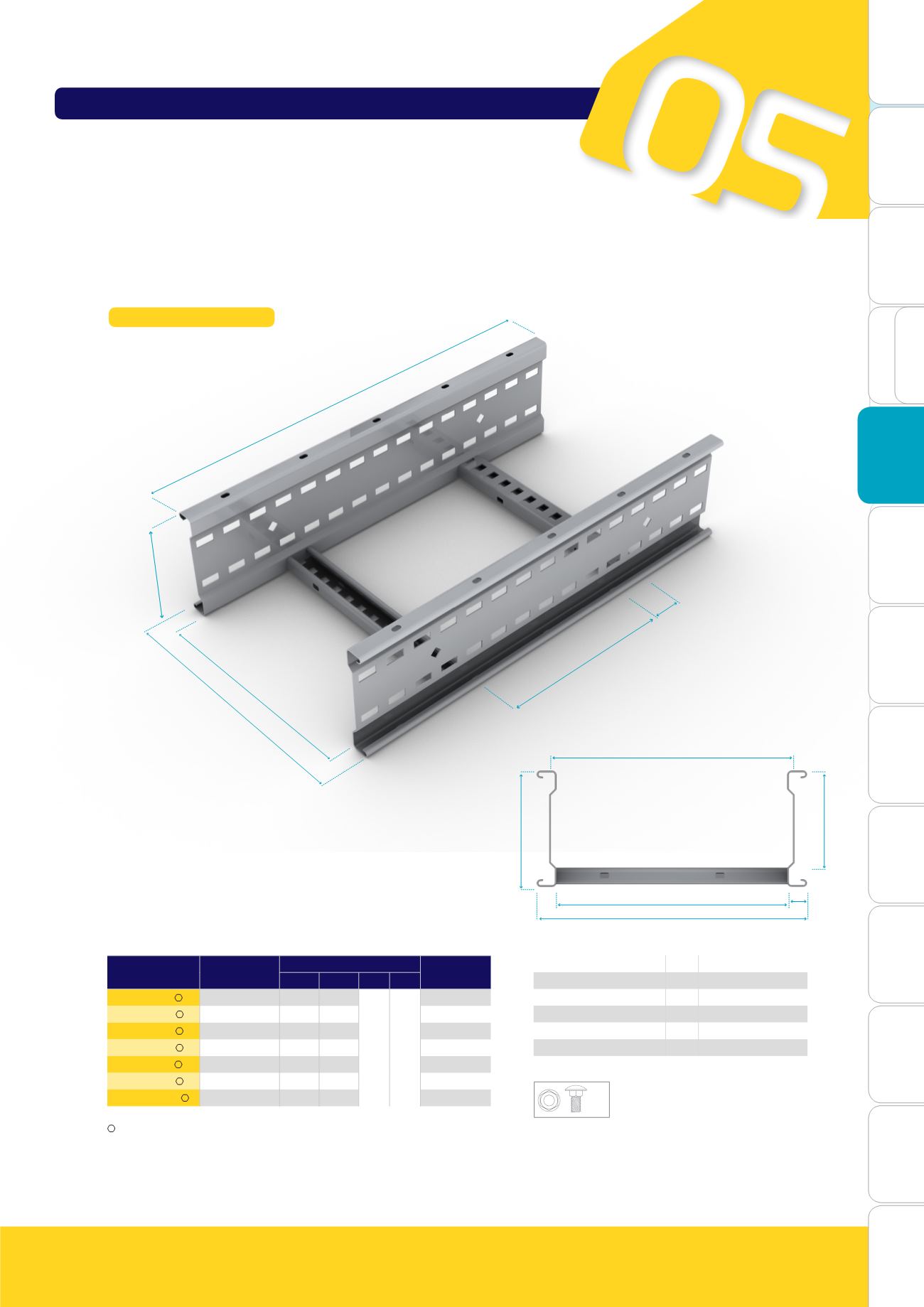

Speedway 6 (SW6) Extra Heavy Duty Cable Ladder is manufactured in 3.0m lengths as
standard with 6.0m lengths supplied to order. The cable ladder is available in standard widths
of 150mm, 300mm, 450mm, 600mm, 750mm, 900mm and 1050mm, although other widths up to
1500mm are available to order. Rung spacing is 300mm as standard.
Height
H
150mm
Loading Depth
D
125mm
Ladder Width
W 100mm to 1500mm
Overall Width
W1 W + 50mm
Maximum Internal Width
W2 W + 14mm
Flange Width
F
25mm
Part Number
No. of Rungs
Dimensions (mm)
Weight
(kg)
W W1 L
H
SW6-SL3-150-
10
150
200
3000 150
21.63
SW6-SL3-300-
10
300
350
23.79
SW6-SL3-450-
10
450
500
25.95
SW6-SL3-600-
10
600
650
28.11
SW6-SL3-750-
10
750
800
30.28
SW6-SL3-900-
10
900
950
32.44
SW6-SL3-1050-
10
1050 1100
34.60
= Select a Finish & Material refer to Page 82
Weights shown are for standard hot dip galvanised finish only.
x
0
Supplied with:
W2
H
D
W
W1
F
W1
W2
H
L
150
300
Accessories
Covers
Technical
Couplers
Fittings
Lengths
Ref.SW6/SL3/Width/Finish
