Air termination

Liverpool

Manchester

Sheffield

Kingston-upon-Hull

Stoke-on-Trent

Birmingham

Aberystwyth

Swansea

Newport

Oxford

Bristol

Brighton

Plymouth

London

Norwich

Ipswich

Orkney

Islands

Thurso

Inverness

Aberdeen

Fort William

Dundee

Glasgow Edinburgh

Newcastle

York

Leeds

Outer

Hebrides

Shetland

Islands

Wind zones key:

Zone 1

Windspeed < 130 km/h

Zone 2

Windspeed < 150 km/h

Zone 3

Windspeed < 170 km/h

Zone 4

Windspeed < 190 km/h

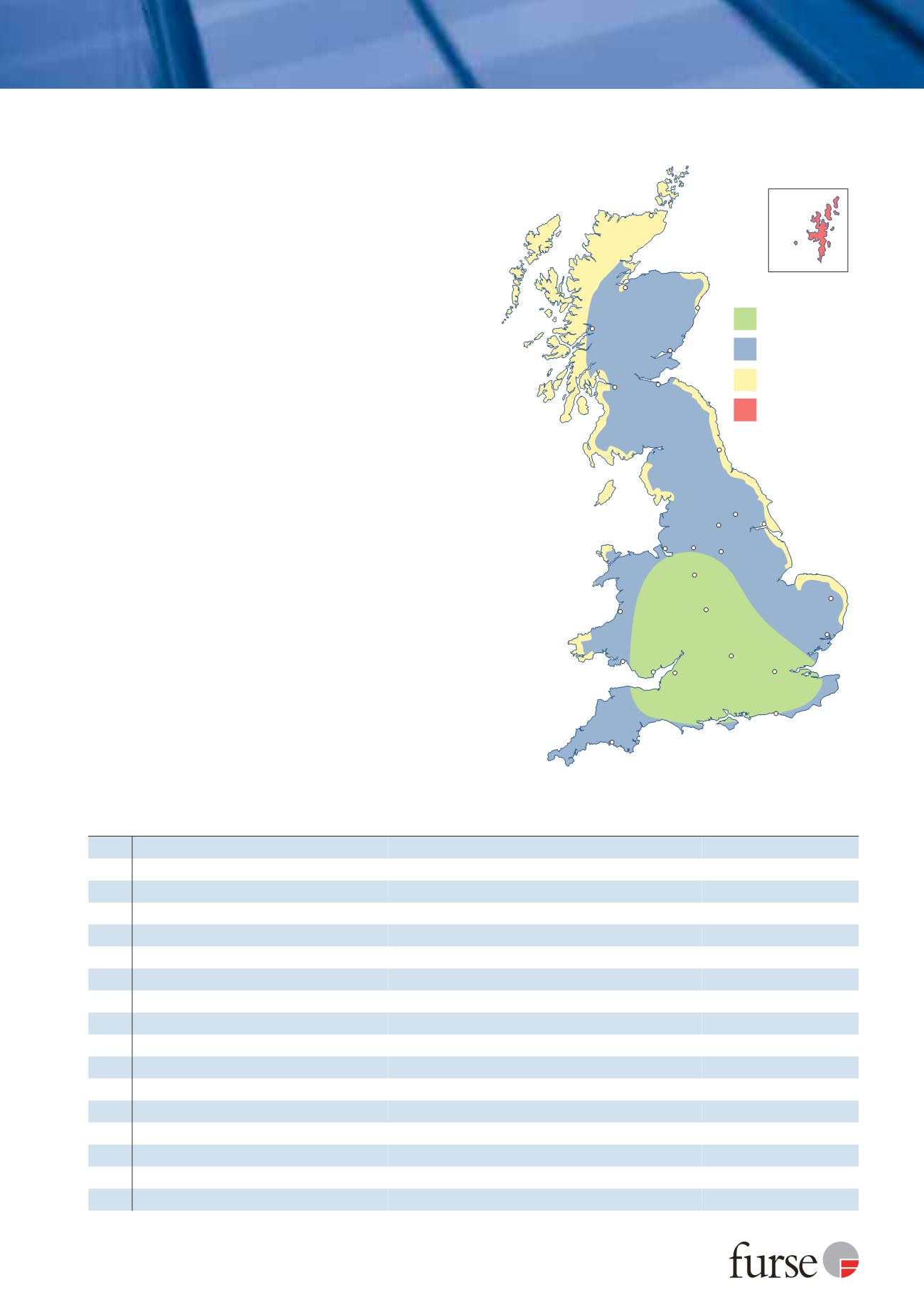

UK wind

zone map

Product selection

Free standing air rod selection is based on two factors:

a) air rod height required to create the necessary

protective zone around the equipment

b) anticipated wind loading at the installation

Wind loading is an important factor, especially for

taller interception air rods as extreme weather can

subject them to fatigue mechanisms.

For UK installations, the map featured right highlights

four key wind zones from which the appropriate free

standing air rod can be established.

Relevant part numbers can then be determined

through cross referencing wind loading with the

height of air rod required in the table below.

For non-UK installations, please refer to available data

for local wind conditions or contact your Furse

representative to discuss your particular requirements.

For details of individual components, refer to page 41

for copper/aluminium air rods and pages 48-49 for

interception poles, support frames and concrete bases.

Rod

height

Interception pole

Part No.

< 130 km/h

< 150 km/h

< 170 km/h

< 190 km/h

0.5 m

RA215 or RA015

103101-FU

1 m

RA225 or RA025

103101-FU

1.5 m

RA230 or RA030

103110-FU

2 m

RA240 or RA040

103110-FU

3 m

912000-FU

499000-FU / 4 x 499100-FU 499000-FU / 4 x 499100-FU 499000-FU / 4 x 499100-FU 499000-FU / 4 x 499100-FU

3.5 m

912001-FU

499000-FU / 4 x 499100-FU 499000-FU / 4 x 499100-FU 499000-FU / 4 x 499101-FU 499000-FU / 4 x 499101-FU

4 m

912002-FU

499000-FU / 4 x 499100-FU 499000-FU / 4 x 499101-FU 499000-FU / 8 x 499100-FU 499000-FU / 8 x 499101-FU

4.5 m

912003-FU

499005-FU / 3 x 103101-FU 499005-FU / 3 x 103110-FU 499005-FU / 3 x 103118-FU 499006-FU / 3 x 103103-FU

5 m

912004-FU

499005-FU / 3 x 103101-FU 499005-FU / 3 x 103110-FU 499005-FU / 3 x 103118-FU 499006-FU / 3 x 103103-FU

5.5 m

912005-FU

499005-FU / 3 x 103110-FU 499005-FU / 3 x 103118-FU 499006-FU / 6 x 103103-FU 499006-FU / 3 x 103103-FU

6 m

912006-FU

499006-FU / 6 x 103103-FU 499006-FU / 6 x 103103-FU 499006-FU / 6 x 103103-FU 499006-FU / 6 x 103101-FU

6.5 m

912007-FU

499006-FU / 6 x 103103-FU 499006-FU / 6 x 103103-FU 499006-FU / 6 x 103101-FU 499006-FU / 6 x 103118-FU

7 m

912008-FU

499006-FU / 6 x 103103-FU 499006-FU / 6 x 103101-FU 499006-FU / 6 x 103110-FU

on request

7.5 m

912009-FU

499006-FU / 6 x 103101-FU 499006-FU / 6 x 103110-FU 499006-FU / 6 x 103118-FU

on request

8 m

912010-FU

499006-FU / 6 x 103110-FU 499006-FU / 6 x 103118-FU 499007-FU / 10 x 103118-FU

on request

9 m

912011-FU

499007-FU / 10 x 103118-FU 499007-FU / 10 x 103118-FU 499007-FU / 10 x 103118-FU

on request

10 m

912013-FU

499007-FU / 10 x 103118-FU 499007-FU / 10 x 103118-FU

on request

Frame (where required) and Base Part No. for windspeeds
