Air termination
BS EN 50164-1 Class H
Fix using countersunk wood screws 1
1
⁄
2
” No. 10 or M6 (Part no.
SW005
) and wall plugs (Part no.
PS305
) - see Accessories page 72.
Tightening torque 12 Nm
Conductor
diameter
Rod
diameter
Thread
size
Conductor
material
Weight
Part
each
No.
50 mm
2
15 mm
M16
Copper
1.03 kg
SD155
70 mm
2
15 mm
M16
Copper
0.95 kg
SD160
95 mm
2
15 mm
M16
Copper
0.95 kg
SD165
Manufactured from a high quality copper alloy. Simple to install, providing
an effective connection between air rod and stranded conductors.
85 mm
55 mm
64 mm
Rod
diameter
Thread
size
Maximum
conductor width
Conductor
material
Weight
Part
each
No.
15 mm
M16
31 mm
Copper
1.07 kg
SD115
For supporting lightning conductor air rods on ridges.
150 mm
71 mm
100 mm

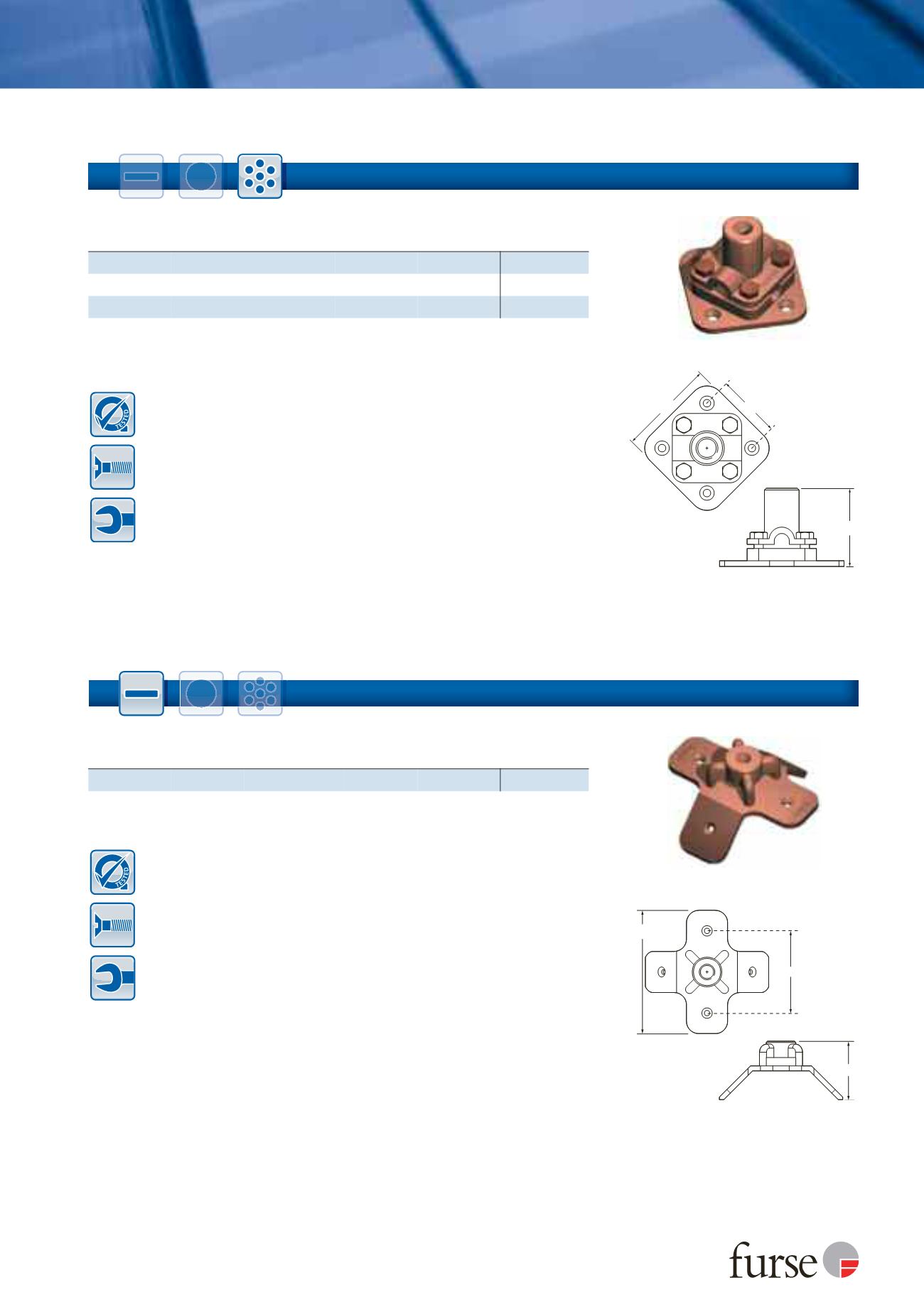

Flat saddle
Ridge saddle
BS EN 50164-1 Class H
Fix using countersunk wood screws 1
1
⁄
2
” No. 10 or M6
(Part no.
SW005
or
SW105
) and wall plugs (Part no.
PS305
) -
see Accessories page 72.
Tightening torque 15 Nm
SD160
SD115
