Air termination
Manufactured from high conductivity hard drawn copper or aluminium,
with rolled threads. Supplied complete with locknut.
“Field Trials in the United States, carried out over many years research have
confirmed that blunt air rods are struck by lightning in preference to taper
pointed air rods.”
“Lightning rod improvement studies” by C B Moore, W Rison, J Mathis, G Aulich. Journal of Applied
Meteorology, May 2000.
Note: during high winds and extreme weather conditions air rods over 1000 mm long can be
subjected to fatigue mechanisms. It is therefore recommended that additional supports are
considered before installation.

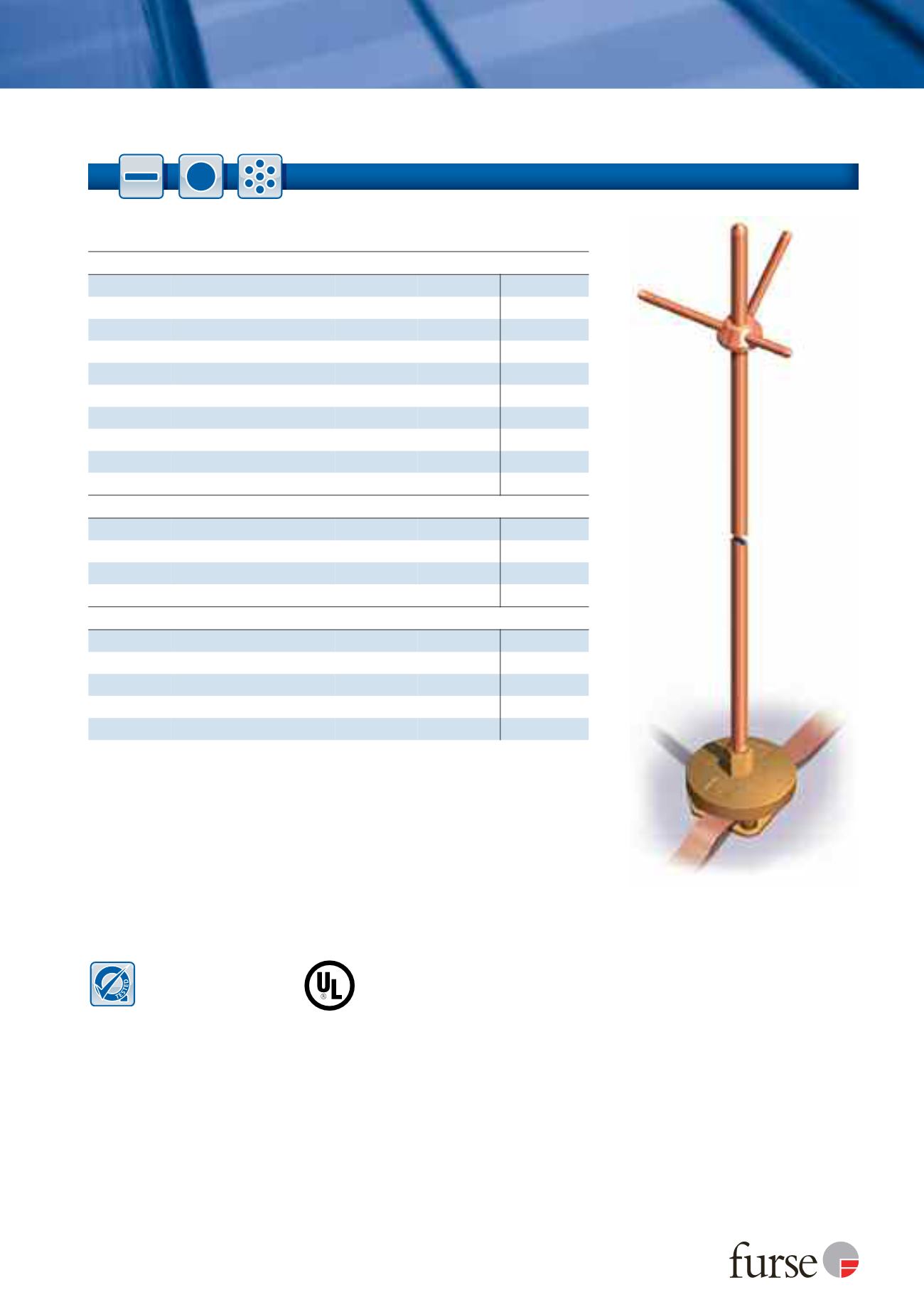

RA225 + RA600 + SD105-H
Air rod shown with multiple point accessory,
connecting to flat tape conductor system
BS EN 50164-2
†UL96 (RA215, RA225)
Rod
length
Rod
diameter
Thread
size
Conductor
material
Weight Part
each No.
For use with flat tape
500 mm 15 mm M16 Copper 0.73 kg RA215†
1000 mm 15 mm M16 Copper 1.51 kg RA225†
1500 mm 15 mm M16 Copper 2.35 kg RA230
2000 mm 15 mm M16 Copper 3.00 kg RA240
3000 mm 15 mm M16 Copper 4.70 kg RA250-FU
500 mm 15 mm M16 Aluminium 0.29 kg RA015
1000 mm 15 mm M16 Aluminium 0.53 kg RA025
1500 mm 15 mm M16 Aluminium 0.80 kg RA030
2000 mm 15 mm M16 Aluminium 1.06 kg RA040
3000 mm 15 mm M16 Aluminium 1.60 kg RA050
For use with solid circular conductor
500 mm 10 mm M10 Copper 0.33 kg RA400-FU
1000 mm 10 mm M10 Copper 0.65 kg RA402
500 mm 10 mm M10 Aluminium 0.11 kg RA080
1000 mm 10 mm M10 Aluminium 0.22 kg RA085
For use with stranded conductor
500 mm 15 mm M16 Copper 0.73 kg RA215†
1000 mm 15 mm M16 Copper 1.51 kg RA225†
1500 mm 15 mm M16 Copper 2.35 kg RA230
2000 mm 15 mm M16 Copper 3.00 kg RA240
3000 mm 15 mm M16 Copper 4.70 kg RA250-FU
Air rod
