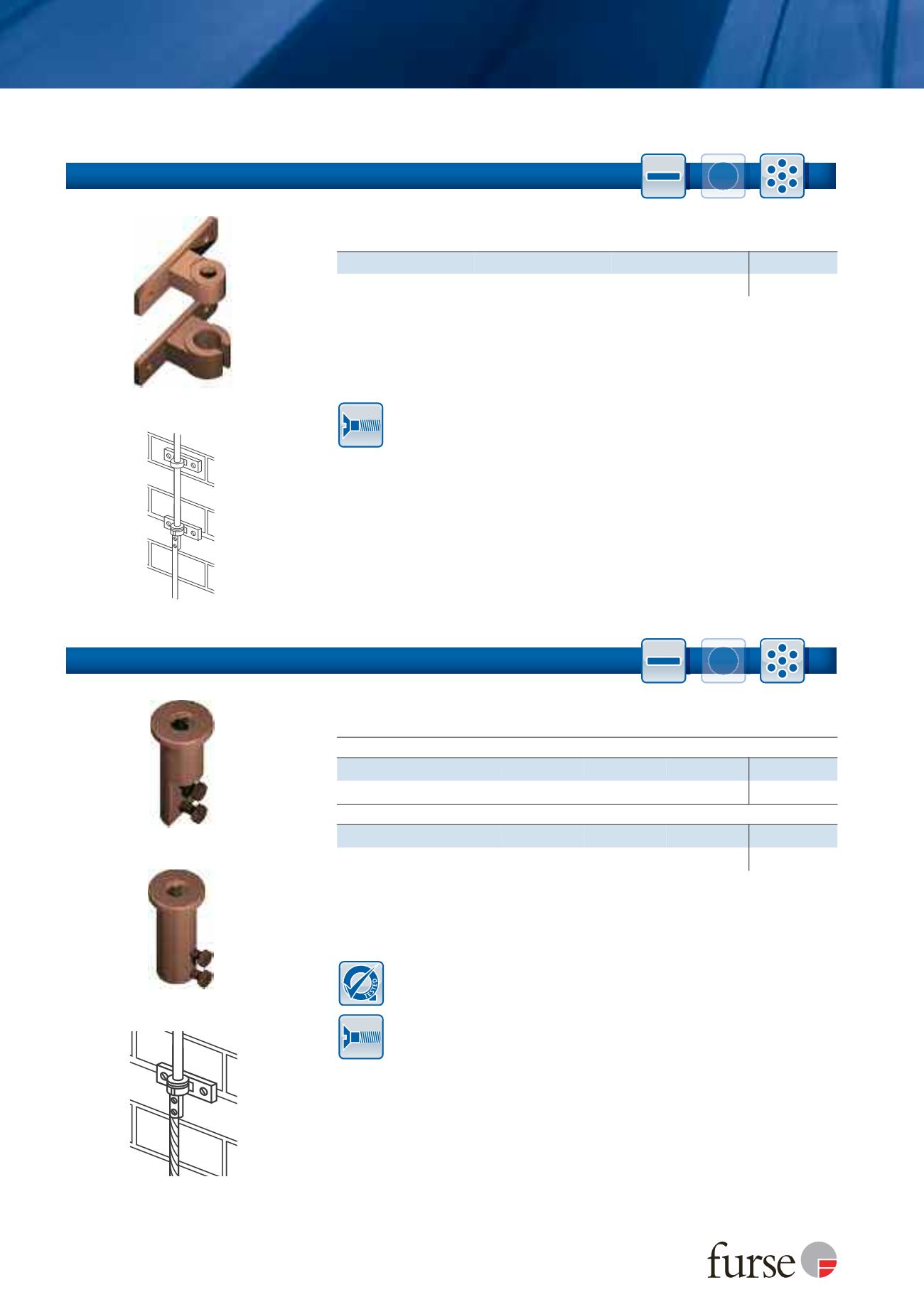

Air termination
Rod
diameter
Rod
material
Weight Part
each No.
15 mm Copper 0.90 kg BR105
15 mm Aluminium 0.28 kg BR005
Manufactured from high quality copper and aluminium alloys. Simple to
install, providing an effective means of mounting an air rod on a vertical
surface e.g. chimney stack. Use in conjunction with a rod to flat tape, or rod
to stranded conductor coupling.
Fix using roundhead wood screws 11⁄2” x no. 12 or M8 and
wall plugs.
Rod to conductor coupling
Conductor
size
Rod
diameter
Thread
size
Rod
material
Weight Part
each No.
For use with flat tape conductor
25 x 3 mm 15 mm M16 Copper 0.23 kg CG600
25 x 3 mm 15 mm M16 Aluminium 0.08 kg CG500
For use with stranded conductor
50-70 mm2 15 mm M16 Copper 0.25 kg CG705
95 mm2 15 mm M16 Copper 0.25 kg CG710
Manufactured from high quality copper and aluminium alloys. Provides an
effective connection between air rod and air termination tape or stranded
air termination conductor. Use in conjunction with rod brackets.
BS EN 50164-1 Class H
Tightening torque 7 Nm (tape); 6 Nm (stranded)
Rod brackets
BR105
CG600
CG705
