Furse Total Solution to Earthing & Lightning Protection

264 / 300

TSC-0912 - 09.10.12
25 mm 120 mm 200 mm
380 mm
740 mm
90 mm
3 mm
CME 4
CME 16
CME 32
CME 8
100 mm
End view
(all products)
180 mm
180 mm 180 mm
180 mm 180 mm 180 mm 180 mm
Furse, Wilford Road, Nottingham, NG2 1EB • Tel: +44 (0)115 964 3700 • Email: • Web:

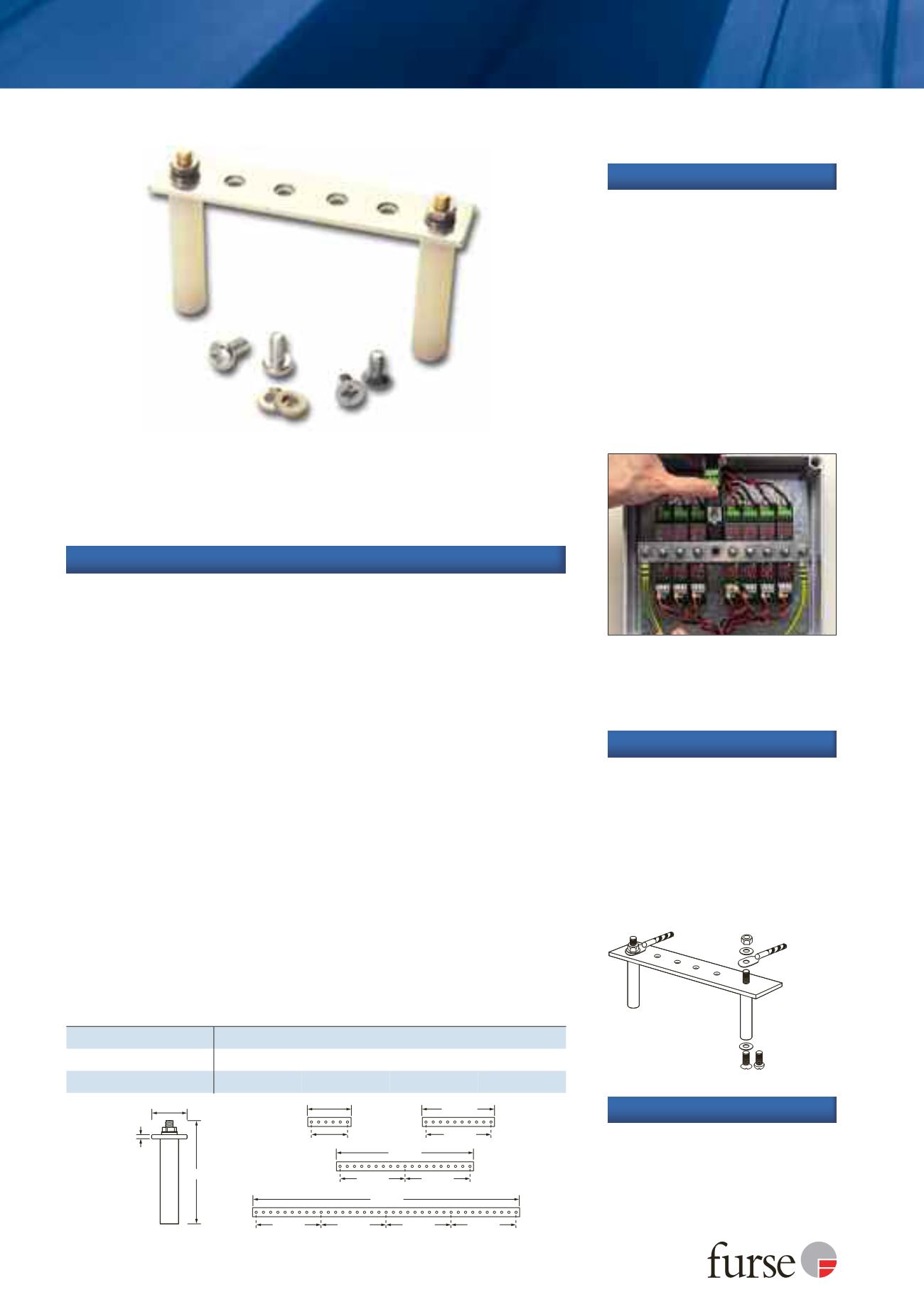

CME Series
Earth
connection
(not supplied)
Assembly of CME kit
CME kits allow the simultaneous mounting
and earthing of protectors through their
central earth stud. Once installed, single
protectors can be changed without
removing others
Use CME kits to simultaneously mount and earth groups of single and
double earth stud protectors. Each single earth stud protector requires one
CME mounting position and each double earth stud protector requires two
CME mounting positions.
High conductivity copper with electro-tin plating and nylon insulating
pillars, for low impedance to earth
Single earth stud protectors are
ESP 06D ESP 06E ESP 06H ESP TN
ESP 15D ESP 15E ESP 15H ESP RTD
ESP 30D ESP 30E ESP 30H ESP CCTV/B
ESP 50D ESP 50E ESP 50H ESP CCTV/T
ESP 110D ESP 110E ESP 110H ESP RS485
Double earth stud protectors are
ESP 120-5A ESP 120-16A ESP 240-16A
ESP 240-5A ESP 277-5A ESP 277-16A
Once you know how many CME mounting positions you require choose a
CME kit to suit:
CME 4 has 4 mounting positions
CME 8 has 8 mounting positions
CME 16 has 16 mounting positions
CME 32 has 32 mounting positions
Application
Enables groups of protectors to be simultaneously mounted and
earthed via their earth stud. Suitable for installing protectors with
one or two earth studs on their top face. Available with 4, 8, 16 and
32 mounting holes.
The earth bar is supported by a
series of mounting pillars (which
are fixed to the cubicle or box
base). Protectors are attached to
the CME’s earth bar via their earth
stud(s) and earthed with shared
connections to earth. We suggest
one earth connection per
mounting pillar.
Installation
Enclosures suitable for a CME 4
and its associated protectors
(WBX 4/GS), CME 8 and protectors
(WBX 8/GS) or one or two CME 16
and protectors (WBX 16/2/G).
Accessories
Enables quick and easy
installation of protectors for
added convenience
Speedy installation of groups
of protectors saves time and
money
Individual protectors can be
changed without needing to
remove others
Sturdy construction
Supplied with a choice of flat
and round ended fixing screws
to suit your application
Features and benefits
Specification CME 4 CME 8 CME 16 CME 32
Hole size 6.5 mm with 20 mm spacings
Weight 0.1 kg 0.15 kg 0.3 kg 0.6 kg
Dimensions
