ESP SL Series NEW
TSC-0912 - 09.10.12
Technical specification
The ESP SL ‘Slim Line’ Series is also available for protection of 3-wire, RS 485 and RTD applications (ESP SL/3W, ESP SL RS485 & ESP SL RTD).
The ESP SL X Series has approvals for use in hazardous areas.
1 Nominal voltage (DC or AC peak) measured at < 10 µA
(ESP SL15, ESP SL30, ESP SL50, ESP SL110 and LED variants)
and < 200 µA (ESP SL06 and ESP SL06L).
2 Maximum working voltage (DC or AC peak) measured at
< 1 mA leakage.
3 The maximum transient voltage let-through of the protector
throughout the test (±10%), line to line & line to earth, both
polarities. Response time < 10 ns.
4 Test to IEC 61000-4-5:2006, ITU-T (formerly CCITT) K.20,
K.21 and K.45, Telcordia GR-1089-CORE, Issue 2:2002,
ANSI TIA/EIA/IS-968-A:2002 (formerly FCC Part 68).
7 mm
104.6 mm
106.5 mm
2 S 1 2 SE 1
Electrical specification ESP SL06 ESP SL15 ESP SL30 ESP SL50 ESP SL110 ESP SL TN
Nominal voltage 1 6 V 15 V 30 V 50 V 110 V -
Maximum working voltage Uc2 7.79 V 16.7 V 36.7 V 56.7 V 132 V 296 V
Current rating (signal) 750 mA
In-line resistance (per line ±10%) 1.0 Ω
Bandwidth (-3 dB 50 Ω system) 45 MHz 45 MHz 45 MHz 45 MHz 45 MHz 20 MHz
Transient specification ESP SL06 ESP SL15 ESP SL30 ESP SL50 ESP SL110 ESP SL TN
Let-through voltage (all conductors)3 Up
C2 test 4 kV 1.2/50 µs, 2 kA 8/20 µs to
BS EN/EN/IEC 61643-21
36.0 V 38.4 V 63.0 V 90.3 V 185 V 395 V
C1 test 1 kV, 1.2/50 µs, 0.5 kA 8/20 µs to
BS EN/EN/IEC 61643-21
26.2 V 29.4 V 51.3 V 77.2 V 175 V 390 V
B2 test 4 kV 10/700 µs to BS EN/EN/IEC 61643-21 16.0 V 26.8 V 45.4 V 68.3 V 165 V 298 V
5 kV, 10/700 µs4 17.0 V 27.5 V 46.3 V 69.1 V 170 V 300 V
Maximum surge current
D1 test 10/350 µs to - per signal wire
BS EN/EN/IEC 61643-21 - per pair
1.25 kA
2.5 kA
8/20 µs to ITU-T K.45:2003, - per signal wire
IEEE C62.41.2:2002 - per pair
10 kA
20 kA
Mechanical specification ESP SL06 ESP SL15 ESP SL30 ESP SL50 ESP SL110 ESP SL TN
Temperature range -40 to +80 ºC
Connection type Screw terminal
Conductor size (stranded) 4 mm2
Earth connection Via DIN rail or 4 mm2 earth terminal
Case material FR polycarbonate UL94 V-0
Weight - unit 0.08 kg
Weight - packaged (per 10) 0.85 kg

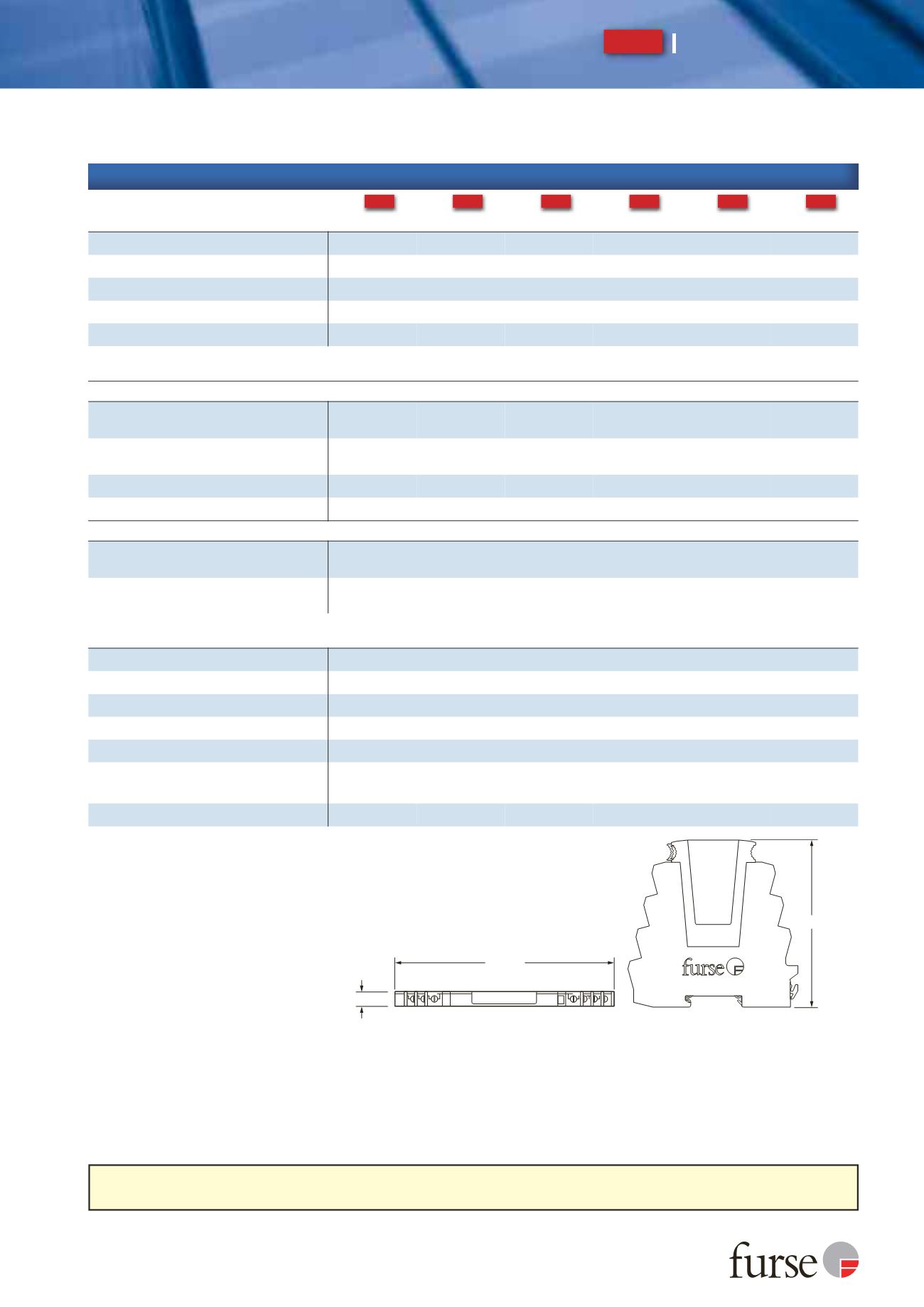

Dimensions
