ESP H Series
TSC-0912 - 09.10.12

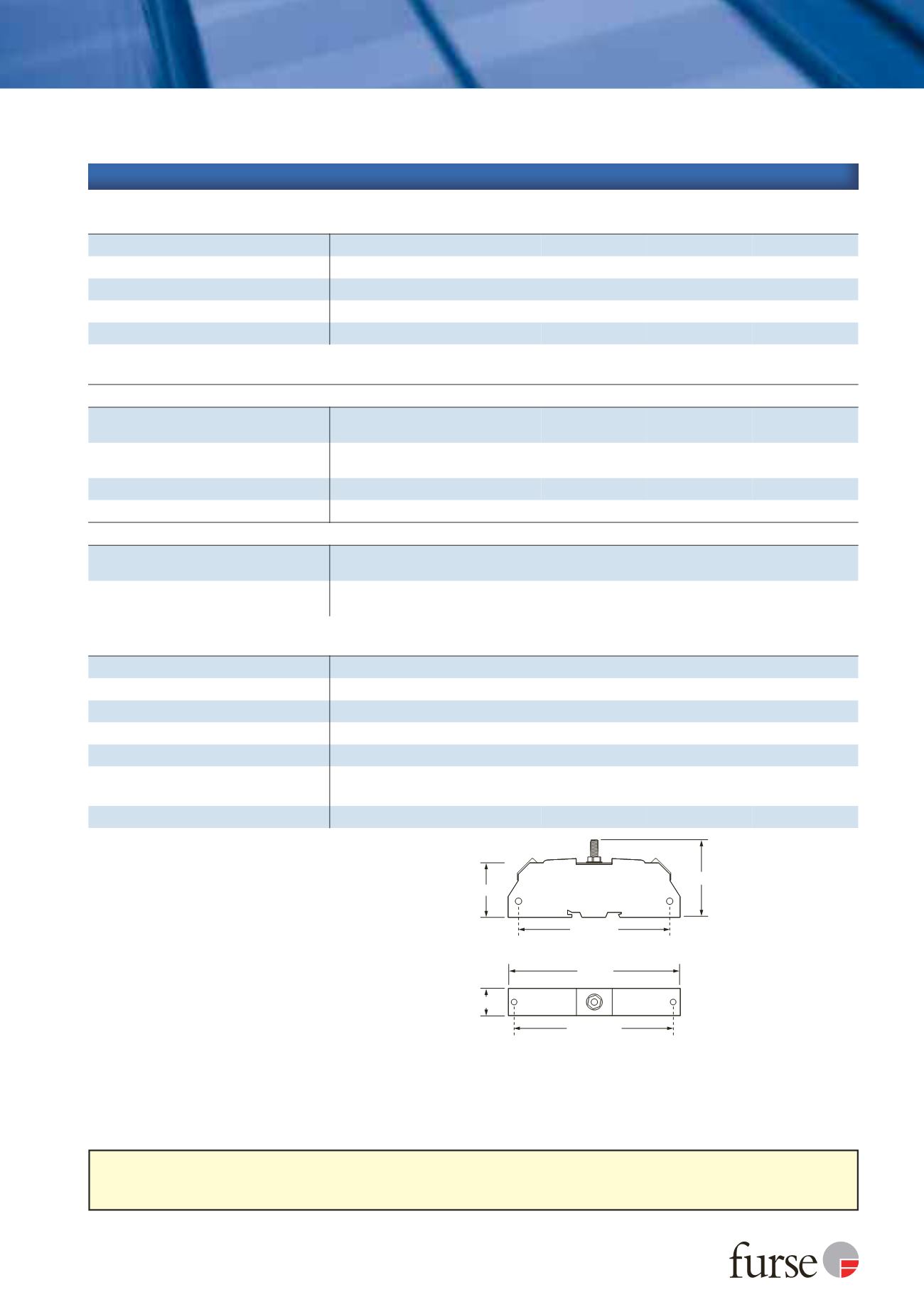

Technical specification
For some data and signal applications with lower current, higher in-line resistance or higher bandwidth requirements, the ESP D or E Series
protectors or the Slim Line ESP SL Series may be more suitable. If the protector is to be mounted directly onto a PCB, use the ESP PCB/**D or
ESP PCB/**E protectors.
120 mm
38 mm
19 mm
54 mm
105 mm
M4 clearance
109 mm
M4 clearance
1 Nominal voltage (DC or AC peak) measured at < 10 µA
(ESP 15H, ESP 30H, ESP 50H, ESP 110H) and < 200 µA
(ESP 06H).
2 Maximum working voltage (DC or AC peak) measured at
< 5 mA leakage (ESP 15H, ESP 30H, ESP 50H, ESP 110H) and
< 10 mA (ESP 06H).
3 The maximum transient voltage let-through of the protector
throughout the test (±10%), line to line & line to earth, both
polarities. Response time < 10 ns.
4 Test to IEC 61000-4-5:2006, ITU-T (formerly CCITT) K.20,
K.21 and K.45,Telcordia GR-1089-CORE, Issue 2:2002,
ANSI TIA/EIA/IS-968-A:2002 (formerly FCC Part 68).
Electrical specification ESP 06H ESP 15H ESP 30H ESP 50H ESP 110H
Nominal voltage 1 6 V 15 V 30 V 50 V 110 V
Maximum working voltage Uc2 7.79 V 16.7 V 36.7 V 56.7 V 132 V
Current rating (signal) 4 A
In-line resistance (per line ±10%) 0.05 Ω
Bandwidth (-3 dB 50 Ω system) 160 KHz 140 KHz 130 KHz 120 KHz 120 KHz
Transient specification ESP 06H ESP 15H ESP 30H ESP 50H ESP 110H
Let-through voltage (all conductors)3 Up
C2 test 4 kV 1.2/50 µs, 2 kA 8/20 µs to
BS EN/EN/IEC 61643-21
12.0 V 27.5 V 46.0 V 67.0 V 150 V
C1 test 1 kV, 1.2/50 µs, 0.5 kA 8/20 µs to
BS EN/EN/IEC 61643-21
11.0 V 26.5 V 45.0 V 66.5 V 145 V
B2 test 4 kV 10/700 µs to BS EN/EN/IEC 61643-21 10.5 V 25.5 V 43.5 V 65.0 V 140 V
5 kV, 10/700 µs4 10.8 V 26.2 V 44.3 V 65.8 V 145 V
Maximum surge current
D1 test 10/350 µs to - per signal wire
BS EN/EN/IEC 61643-21 - per pair
2.5 kA
5 kA
8/20 µs to ITU-T K.45:2003, - per signal wire
IEEE C62.41.2:2002 - per pair
10 kA
20 kA
Mechanical specification ESP 06H ESP 15H ESP 30H ESP 50H ESP 110H
Temperature range -40 to +80 ºC
Connection type Screw terminal
Conductor size (stranded) 2.5 mm2
Earth connection M6 stud
Case material ABS UL94 V-0
Weight - unit 0.08 kg
Weight - packaged (per 10) 0.85 kg
Dimensions
