www.furse.comESP H Series
TSC-0912 - 09.10.12

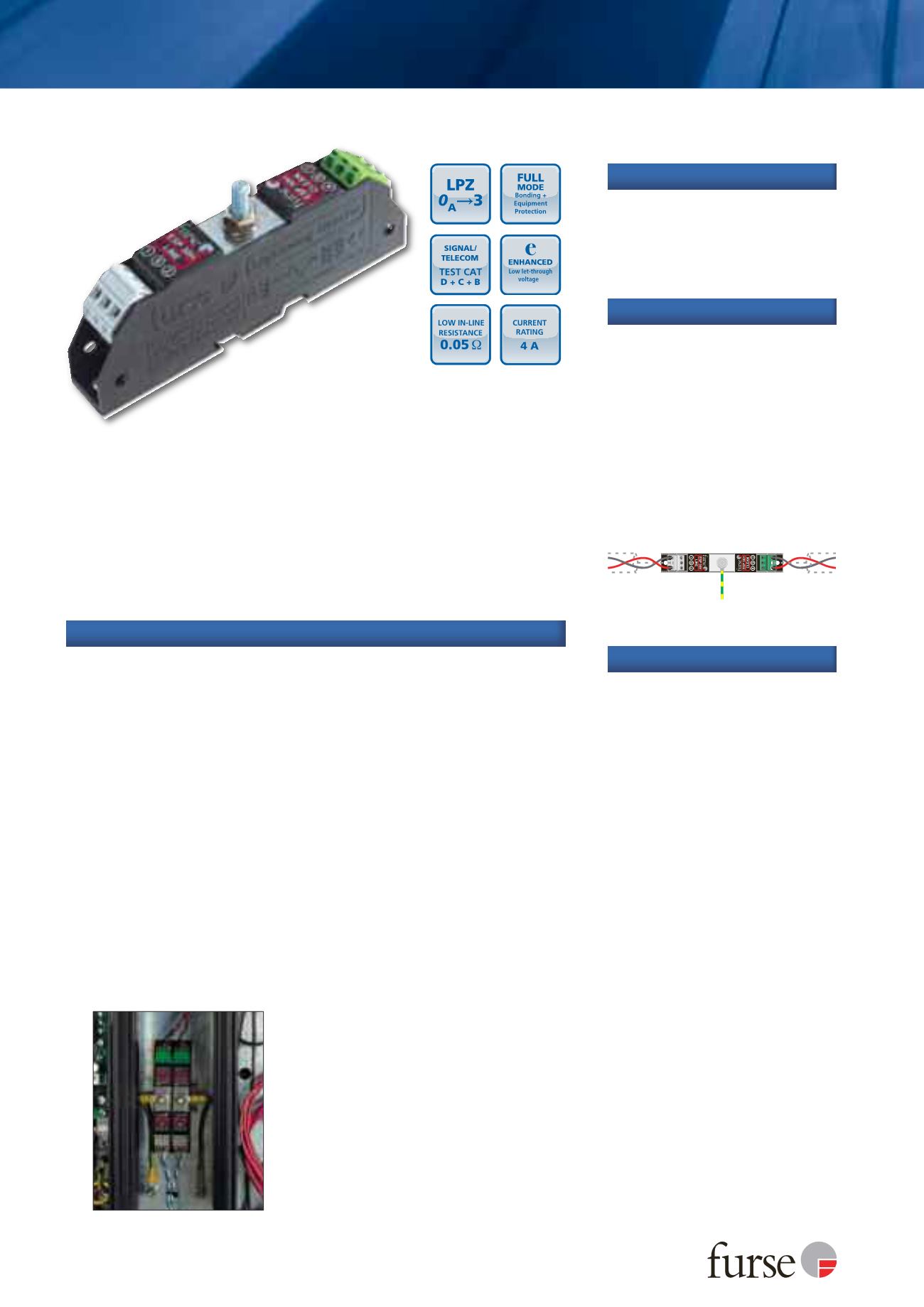

Two ESP 15H protectors mounted in a control cabinet
and earthed via the cabinet’s earthed chassis
Install in series (in-line)
DIRTY
CLEAN
From line
To
equipment
Earth
Very low let-through voltage (enhanced protection to BS EN 62305)
between all lines - Full Mode protection
Full mode design capable of handling partial lightning currents as well
as allowing continual operation of protected equipment
Repeated protection in lightning intense environments
Ultra-low (< 0.05
Ω
) in-line resistance allows resistance critical
applications (e.g. alarm loops) to be protected
Very high (4 A) maximum running current
Strong, flame retardant ABS housing
Supplied ready for flat mounting on base or side
Built-in DIN rail foot for simple clip-on mounting to top hat DIN rails
Colour coded terminals give a quick and easy installation check -
grey for the dirty (line) end and green for clean
Screen terminal enables easy connection of cable screen to earth
Substantial earth stud to enable effective earthing
Integral earth plate enables enhanced connection to earth via CME kit
Features and benefits
Combined Category D, C, B tested protector (to BS EN 61643)
suitable for twisted pair signalling applications which require either
a lower in-line resistance or an increased current than the ESP D or
E Series. Also suitable for DC power applications less than 4 Amps.
Available for working voltages of up to 6, 15, 30, 50 and 110 Volts.
For use at boundaries up to LPZ
0
A
to protect against flashover
(typically the service entrance location) through to LPZ 3 to protect
sensitive electronic equipment.
Combined Mounting/Earthing kits
CME 4
Mount & earth up to 4 protectors
CME 8
Mount & earth up to 8 protectors
CME 16
Mount & earth up to 16 protectors
CME 32
Mount & earth up to 32 protectors
Weatherproof enclosures
WBX 2/G
For use with up to 2 protectors
WBX 3, WBX 3/G
For use with up to 3 protectors
WBX 4, WBX 4/GS
For use with a CME 4 and up to
4 protectors
WBX 8, WBX 8/GS
For use with a CME 8 and up to
8 protectors
WBX 16/2/G
For use with one or two CME 16
and up to 32 protectors
Accessories
Connect in series with the data
communication or signal line
either near where it enters or
leaves the building or close to the
equipment being protected (e.g.
within the control panel). Either
way, it must be very close to the
system’s earth star point. Install
protectors either within an
existing cabinet/cubicle or in a
separate enclosure.
Installation
Use these applications to protect
resistance sensitive or higher
running current systems, e.g.
systems with long signal lines, or
DC power applications.
Application
