3/2 Adaptaflex Product Catalogue | LIT211GB 0715
3
Metallic conduit systems

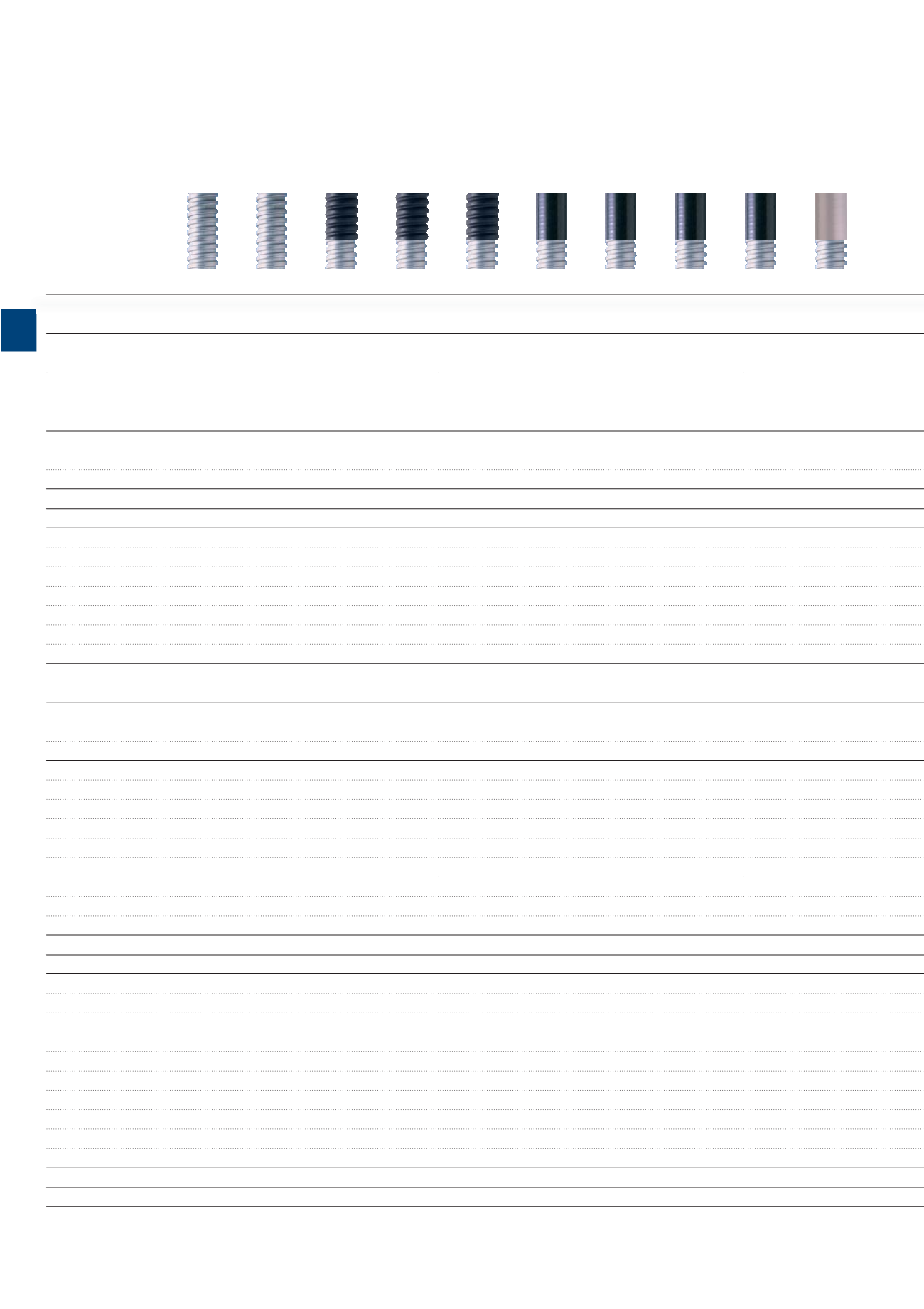

Quick selection guide
Conduit Type Type S Type SS Type SP Type SN Type LFH-SP Type SPL TypeLFH-SPL Type SPL-EF Type SPLHC Type SPUL
Part number S SS SP SN LFH-SP SPL LFH-SPL SPL-EF NEW SPLHC SPUL
Conduit material Galvanised Stainless Galvanised Galvanised Galvanised Galvanised Galvanised Galvanised Galvanised Galvanised
steel steel steel steel steel steel steel steel steel steel
Covering/overbraid – – PVC PA (Nylon) Polyolefin PVC Low fire Thermoplastic Thermoplastic PVC
hazard jacket jacket rubber
Conduit colour
Black (BL) – – • • • • • • • –
Grey (GR) – – • – – • – – – •
IP Rating (with appropriate fitting)
IP40 • • – – – – – – – –
IP54 – – • • • – – – – –
IP65 – – • • • – – – – –
IP66 – – – – – • • • • •
IP67 – – – – – • • • • •
IP68 – – – – – • • • • •
IP69k – – – – – • • • • •
Characteristics
Temperature Range
Static applications (ºC) -50 to +300 -50 to +350 -25 to +70 -25 to +90 -25 to +90 -20 to +105 -20 to +90 -40 to +105 -65 to +135 -20 to +75
Moving applications (ºC) -45 to +250 -45 to +250 -5 to +90 -5 to +105 -5 to +105 -5 to +105 -5 to +105 -30 to +105 -45 to +150 -5 to +105
UV resistance Very high Very high Very high High High Very high High Very high Very high High
Flexibility High High High Medium High Medium Medium Very high Very high Medium
Fatigue life High High Medium Medium Medium Medium Medium High High Medium
Low fire hazard Inherent Inherent – – Enhanced – Enhanced Enhanced – –
Halogen free • • – • • – • • • –
Self extinguishing – – • • • • • • • •
EMI screen – – – – – – – – – –
High mechanical strength • • • • • • • • • •
High abrasion resistance – • – – – – – – – –
Approvals
BSI Kitemark • • • • • • • • • •
CE • • • • • • • • • •
UL / CSA – – – – – – – – – •
UR – – – – – • – – – –
DB – – – – – – – – – –
NF F – – – – • – • – – –
Lloyds Register – – – – • • – – – –
LUL 1-085 – – – – • – • – – –
UNI CEI 11170 – – – – – – – – – –
EN45545-2 to HL3 – – – – – – • • – –
Section 3 / Page No. 3/6 3/6 3/9 3/9 3/10 3/14 3/14 3/15 3/16 3/17
