4.6 Set Pulse Duration
ThePulseDurationoption that allows you to set how long the
contactof thepulse isopen forperpulse.Availableoptions
are60, 100& 200mS.
Use the
button to choose the
BaudRatemenuoption.
Press& hold the
button to edit
themenuoption.ThePulseduration
optionwill appear flashing.
Use the
button to cycle through
the availableoptions.
Press& hold the
button to
confirm the change to theoption you
have selected.
To exit the set-upmenu,press& hold
until the
measurement screen is restored.
4. DIT - Demand Integration Time
This sets theperiod inminutesoverwhich the current
andpower readings are integrated formaximumdemand
measurement.Theoptions are:off, 5, 10,15 30,60minutes.
Use the
button to choose the
DITSETmenuoption.
Press& hold the
button to edit
themenuoption.The screenwill
display a flashing number.
Use the
button to cycle through
the availableoptions.
Press& hold the
button to
confirm the change to theoption you
have selected.
To exit the set-upmenu,press& hold
until the
measurement screen is restored.
4.5 Automatic Scroll Time Interval
Use this section to set the time interval for themeter to scroll
through thedifferentparameters.
Use the
button to choose the
ScrlTmenuoption.
Press& hold the
button to edit
themenuoption.The screenwill
display a flashingnumber.
Use the
button to cycle through
the availableoptions.
Type ‘A’ and ‘B’ Digital Metering Devices
PS6 -
(PSB61MID, PSB121MID, PSB181MID, PSBDMPMID)
Parameters
s Phase to phase voltage
s Phase to neutral voltage
s Frequency
s Voltage total harmonic distortion (THD) current
s Neutral current (calculated)
s Current max demand
s Current total harmonic (THD)
s kW, kVA & kVAr
s Power max demand
s Power factor
s Import kWh
s Export kWh
s Import kVArh
s Export kVArh
s Total kWh (Active energy)
s Total kWArh (Reactive energy)
Accuracy
s 6OLTAGE
s OF RANGE MAXIMUM
s #URRENT
s OF NOMINAL
s &REQUENCY
s OF MID FREQUENCY
s 0OWER FACTOR
OF UNITY
s !CTIVE POWER 7 ¢ OF RANGE MAXIMUM
s 2EACTIVE POWER 6!R
¢ OF RANGE MAXIMUM
s !PPARENT POWER 6! ¢ OF RANGE MAXIMUM
s Active energy (Wh)
Class 1 IEC 62052-21
s 2EACTIVE ENERGY 6!2H ¢ OF RANGE MAXIMUM
s 4OTAL HARMONIC DISTORTION UP TO ST HARMONIC
s Temperature co-efficient Voltage and current =
ª# TYPICAL

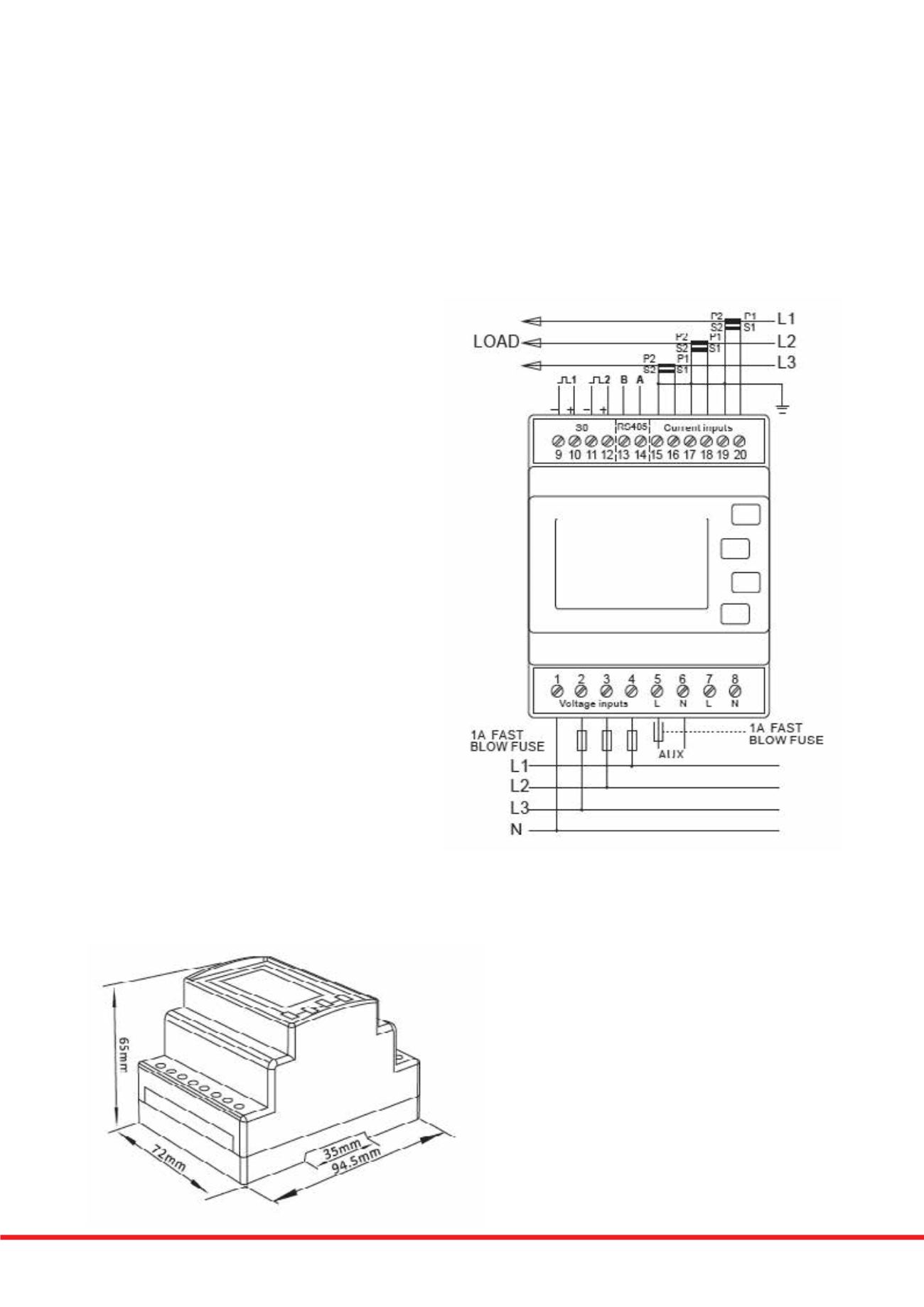

Wiring Diagram
Dimensions
