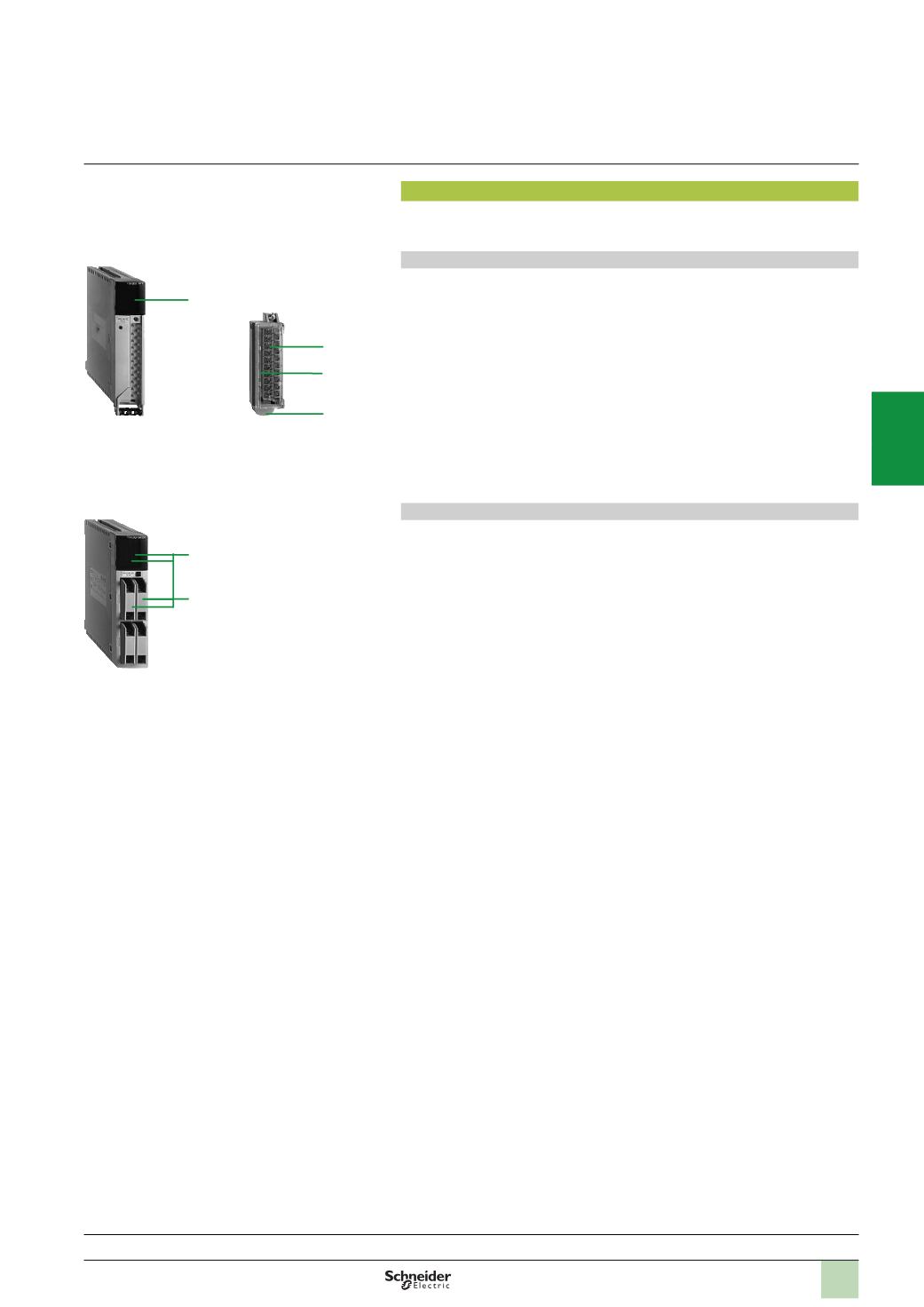

Description
The discrete I/O modules are standard format (1 slot). They have a plastic case
which provides IP 20 protection of the electronics.
I/O modules connected via 20-way removable terminal block
1
A display block showing the channels and for module diagnostics
2
A removable screw terminal block for connecting the I/O directly to the sensors
and preactuators
TSX BLY 01
(
connectors to be ordered separately)
3
A pivoting cover for accessing the terminal block screws and holding the
identification label
4
A rotating support containing the module locating device
I/O modules connected via HE 10 connector
1
A display block showing the channels and for module diagnostics
2
HE 10 connectors, protected by a cover. These are used to connect the I/O to the
sensors and preactuators either directly or via Modicon Telefast ABE 7 connection
sub-bases.
Description
2
4
3
1
1
2
Modicon Premium automation
platform
0
Discrete I/O modules
Principle:
page 3/6
Functions:
pages 3/8 …
References:
pages 3/9 …
