Connecting modules with screw terminal blocks
The discrete I/O module terminal blocks have a device for automatically transferring
the coding when first used. This prevents handling errors when a module is replaced.
This coding ensures electrical compatibility for each type of module.
Each terminal can take bare wires or wires with either cable ends or open tags.
The capacity of each terminal is:
b
Minimum: One 0.2 mm
2
(
AWG 24) wire without cable end
b
Maximum: One 2 mm
2
(
AWG 14) wire without cable end or one 1.5 mm
2
(
AWG 15)
wire with cable end
The screw terminal blocks are equipped with captive screws.
The maximum capacity of the terminal block is 16 x 1 mm
2
(
AWG 17) wires + 4 x
1.5
mm
2
(
AWG 15) wires.

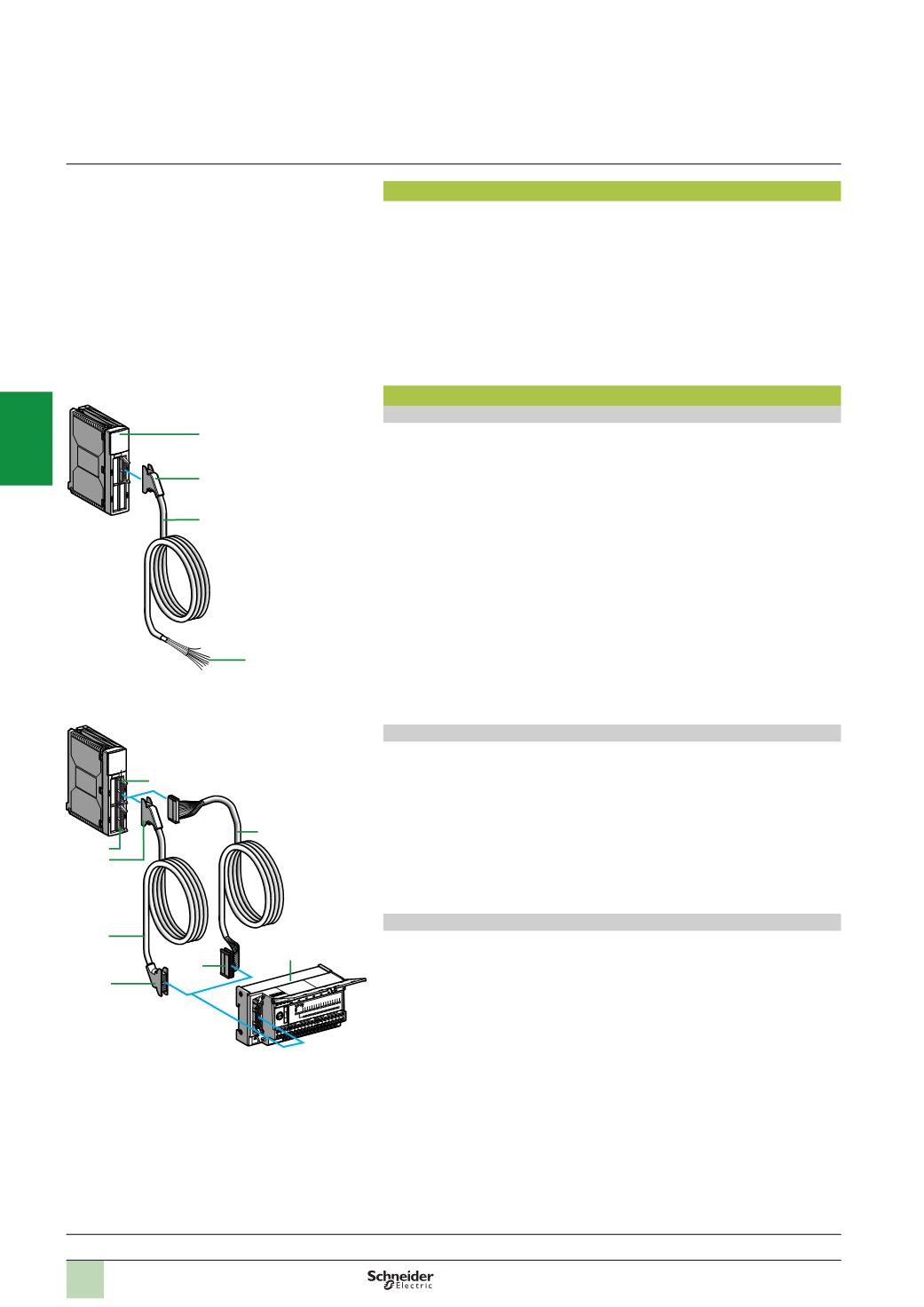

Connecting modules with HE 10 connectors
20-
wire preformed cables, AWG 22 (0.324 mm
2
)
Preformed cables are used for easy direct wire-to-wire connection between the I/O
of modules with connectors
1
and the sensors, preactuators or terminals.
This preformed cable
3
comprises:
b
At one end, an HE10 moulded connector
2
with 20 x 0.34 mm
2
cross-section
sheathed wires.
b
At the other end
4
,
flying leads color-coded according to standard DIN 47100.
TSX CDP 301
:
length 3 m
TSX CDP 501
:
length 5 m
TSX CDP 1001
:
length 10 m
Sheathed rolled ribbon cables, AWG 28 (0.08 mm
2
)
The rolled ribbon cables are used to connect the I/O of modules with HE 10 connectors
1
to Modicon Telefast ABE 7 fast wiring connection and adaptor interfaces
2
.
This cable
3
consists of 2 HE 10 connectors
4
and a sheathed rolled ribbon cable with 0.08 mm
2
cross-section wires.
Given the small cross-section of the wires, it is recommended for use on low current
I/O only (100 mAmax. per output).
TSX CDP 102
:
length 1 m
TSX CDP 202
:
length 2 m
TSX CDP 302
:
length 3 m
Connecting cable, AWG 22 (0.324 mm
2
)
Used to connect the I/O of modules with HE 10 connectors
1
to Modicon Telefast
ABE 7 fast wiring connection and adaptor interfaces
2
.
This cable
5
consists of
2
moulded HE 10 connectors
6
and a cable that will take higher currents (500 mA
max.).
TSX CDP 053
:
length 0.5 m
TSX CDP 103
:
length 1 m
TSX CDP 203
:
length 2 m
TSX CDP 303
:
length 3 m
TSX CDP 503
:
length 5 m
TSX CDP 1003
:
length 10 m
