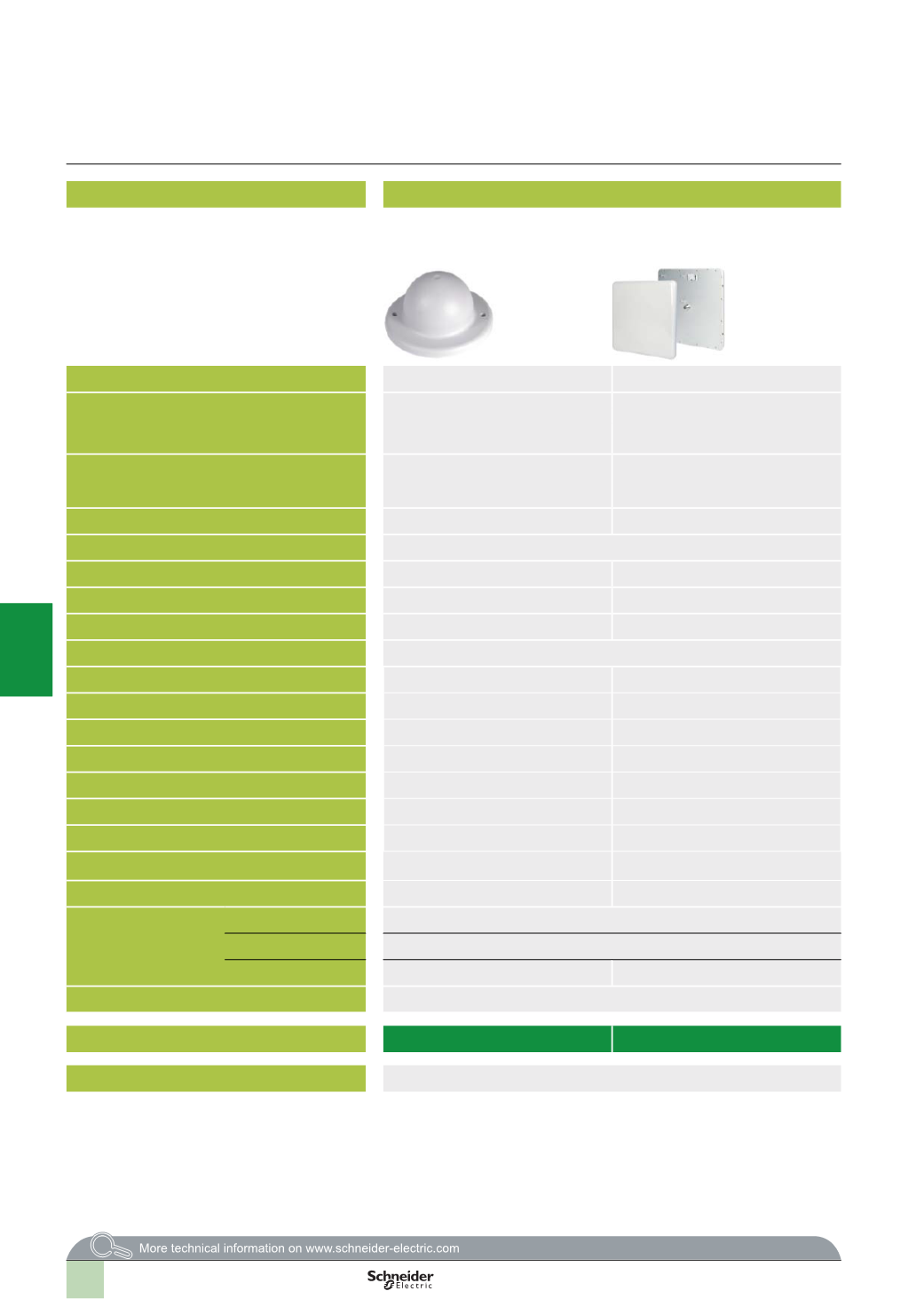

212 / 413
5/78
Device type
Dual band antennas
Description
Dual band hemispherical antenna
5
GHz Very directional antenna
Frequency range
2300 - 2500
MHz
4900 - 5935
MHz
5150 - 5250
MHz
5250 - 5350
MHz
5350 - 5725
MHz
5725 - 5875
MHz
Antenna gain
6
dBi at 2.4 GHz
8
dBi at 5 GHz
18
dBi
19
dBi
18.5
dBi
18
dBi
VSWR
(1)
1.8
1.5
Polarization
Linear, vertical
Horizontal HPBW
(2)
360
° at 2.4 GHz
18
°
Vertical HPBW
(2)
173
° at 5 GHz
18
°
Max. power
75
W (cw) at 25°C
6
W (cw)
Impedance
50
Ω
Connector
N female
N female
Operating temperature
-40
°C to +80°C
-45
°C to +70°C
Storage temperature
-40
°C to +80°C
-45
°C to +70°C
Radome colour
RAL 7044 (Silk grey)
7035 (
Light grey)
Radome material
LEXAN EXL 9330
Plastic
Weight
0.3
kg
0.107
kg
Dimensions
Ø 86 x 43 mm
190
x 190 x 30.5 mm
Wind load
10
N at 160 km/h
104
N at 216 km/h
Degree of protection
IP 65
IP 65/IP 67
Shipping package contents
Cordset/cable
1
m cable with N male connectors at both ends
Adaptor cable
Adaptor cable, R-SMAmale connector to N female connector
Mounting kit
–
Yes
Access point/client compatibility
TCSG
pp pppp
References
TCS WAB DH
TCS WAB 5V
Pages
5/84
(1)
VSWR: Voltage Standing Wave Ratio
(2)
HPBW: Half Power BeamWidth
