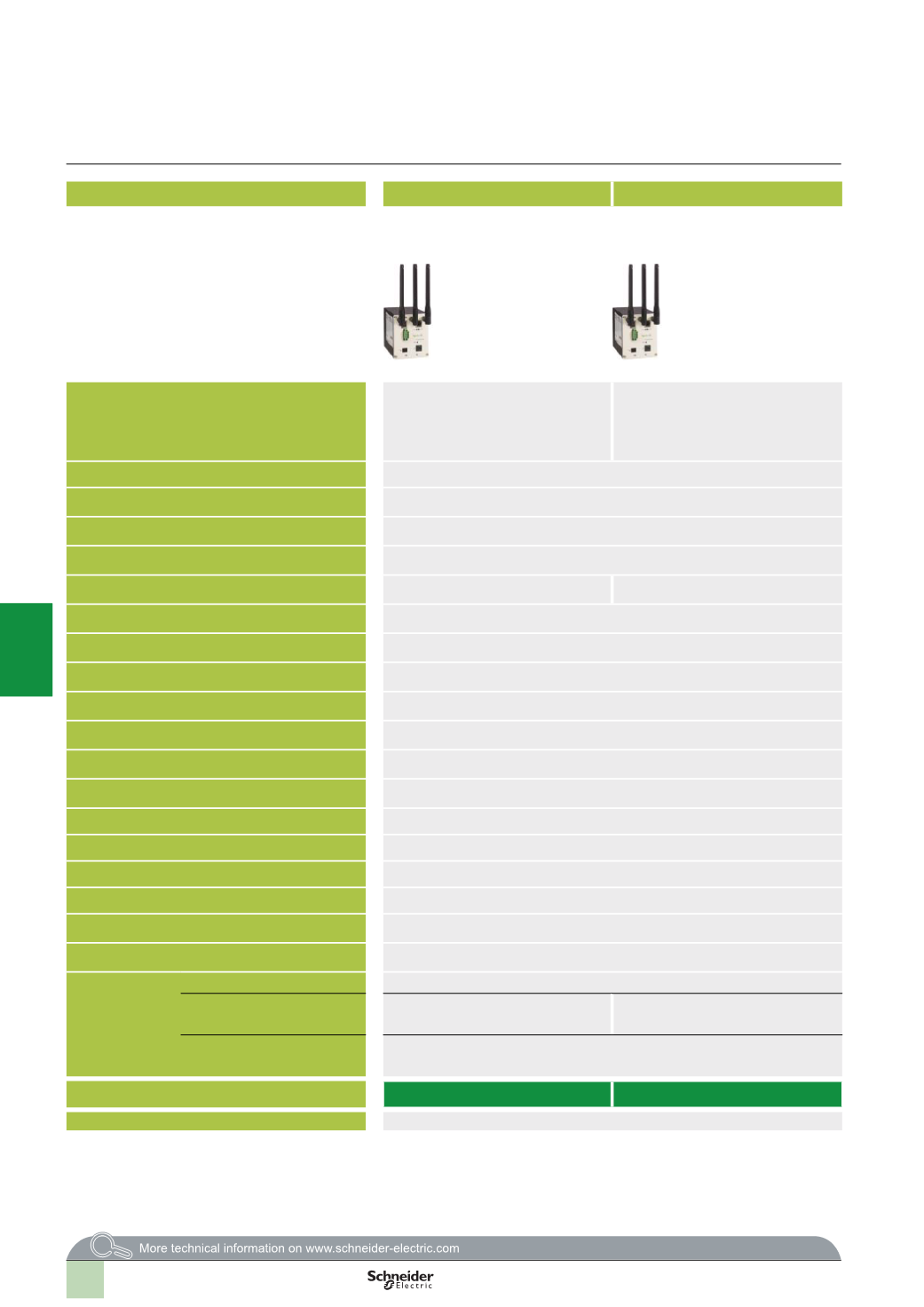

Device type
Wi-Fi 802.11n Access Point
FCC Wi-Fi 802.11n Access Point
Description
Dual band industrial high performance Wi-Fi
LANAccess Point/Client with one radio
module based on IEEE 802.11n (draft 2.0).
Dual band industrial high performance Wi-Fi
LANAccess Point/Client with one radio module
based on IEEE 802.11n (draft 2.0). With FCC
approval for USA and Canada.
Type
Access point and Client
Wi-Fi standards
IEEE 802.11a/b/g/h/n
Operating frequencies
2.4
GHz and 5 GHz
Degree of protection
IP 40
Regional approvals
–
FCC
Mounting
DIN rail
Number of radios
1
Nominal data rate
300
Mbps
Antenna connections
3
x RP-SMA
Ethernet connections
2
x 10/100BASE-TX
Wi-Fi connections
1
x WLAN interface, 8 SSIDs per interface
(1)
Range
Up to 20 km with external antenna (frequency range and data rate dependent on type of antenna)
Dimensions
80
x 100 x 135 mm
Operating temperature
-30
°C to +50°C
Storage temperature
-40
°C to +70°C
Humidity
Max. 95% (non-condensing)
Power supplies
2
x 24 V
c
; 12
V
c
,
redundant capable
2
x PoE per IEEE802.3af, redundant capable
(2)
Consumption
2
V
c
1: 625
mA; 24 V
c
: 417
mA
PoE (48 V
c
): 167
mA
(2)
Agency
certifications
Safety
EN 60950
Radio
EN 300328, EN 301893, notified in all
EU countries
Certifications for FCC
Environment
EN 61131 for operation in automation environment
References
TCSN WA 241
(3)
TCSN WA 241
(3)
Pages
5/84
(1)
SSID: Service Set IDentifier
(2)
PoE: Power over Ethernet
(3)
All TCSN
pp pppp
products are supplied with 3 pen-type antennas
Selection guide
(
continued)
Wi-Fi network
Wi-Fi Access Points and Clients
