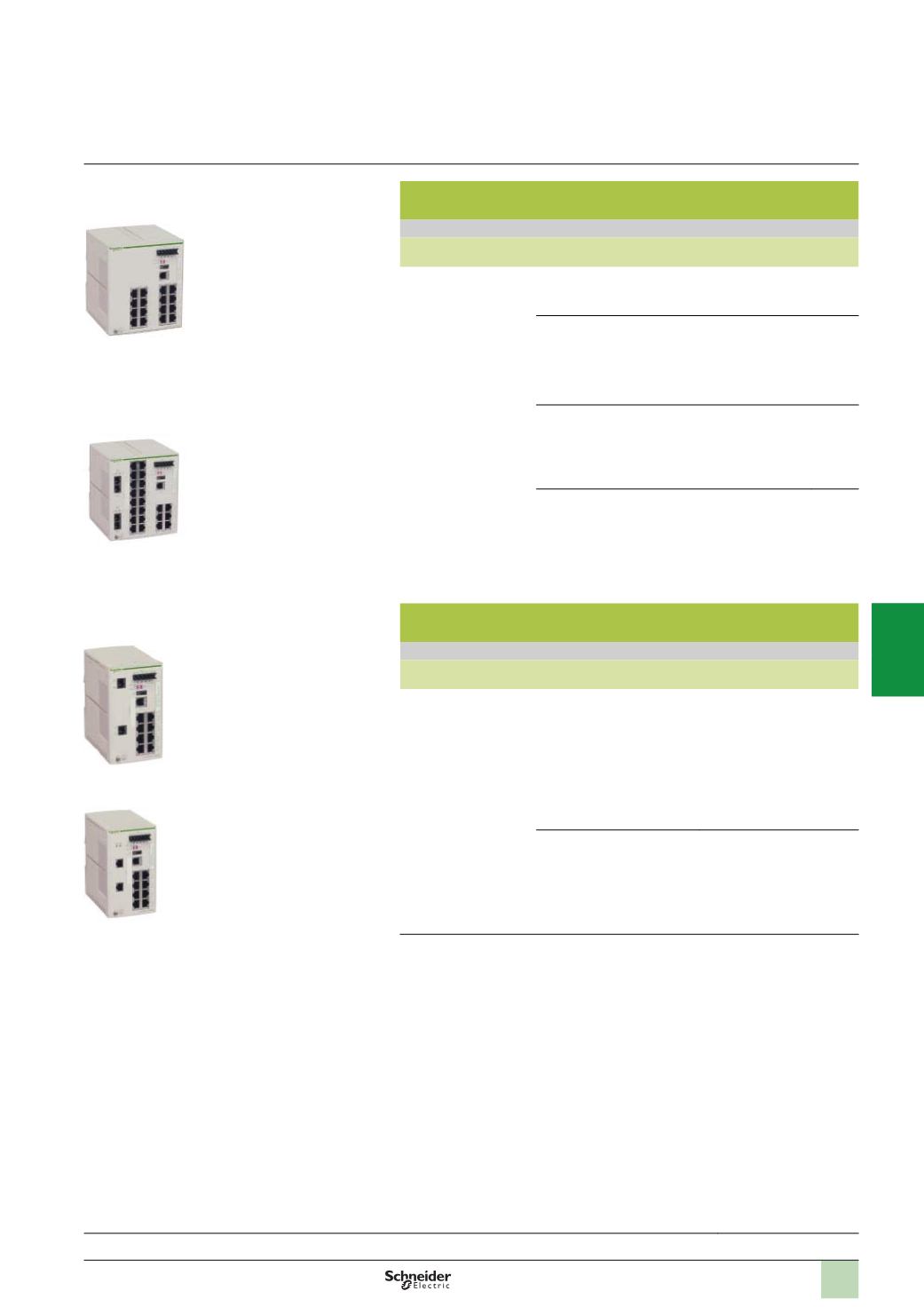

ConneXium managed switches, 16 and 24 ports, twisted pair
and fibre optic
References
Description
Interfaces
Reference
Weight
kg
ConneXium managed
switches
16
x 10/100BASE-TX ports
(
copper cable), RJ45 shielded
connectors
TCS ESM 163F23F0
0.600
b
14
x 10/100BASE-TX ports
(
copper cable), RJ45 shielded
connectors
b
2
x 100BASE-FX ports
(
multimode optical fibre), duplex
SC connector
TCS ESM 163F2CU0
0.600
b
14
x 10/100BASE-TX ports
(
copper cable), RJ45 shielded
connectors
b
2
x 100BASE-FX ports (single
mode optical fibre), duplex SC
connector
TCS ESM 163F2CS0
0.600
b
22
x 10/100BASE-TX ports
(
copper cable), RJ45 shielded
connectors
b
2
x 100BASE-FX ports
(
multimode optical fibre), duplex
SC connector
TCS ESM 243F2CU0
0.650
ConneXium managed switches, 8 ports and 2 Gigabit ports,
twisted pair and fibre optic
References
Description
Interfaces
Reference
Weight
kg
ConneXium managed
switches
b
8
x 10/100BASE-TX ports
(
copper cable), RJ45 shielded
connectors
b
2
x 1000BASE-SX ports
(
multimode optical fibre)
(1)
,
or
b
2
x 1000BASE-LH ports
(
single mode optical fibre) (
2)
,
or
b
2
x 1000BASE-LX ports
(
single mode and multimode
optical fibre) (
3)
TCS ESM 103F23G0
0.410
b
8
x 10/100BASE-TX ports
(
copper cable), RJ45 shielded
connectors
b
2
x 10/100/1000BASE-TX
(
Gigabit) ports (copper cable),
RJ45 shielded connectors
TCS ESM 103F2LG0
0.410
(1)
With
TCS EAA F1LFU000
fibre optic module to be ordered separately (see page 5/67)
(2)
With
TCS EAA F1LFH000
fibre optic module to be ordered separately (see page 5/67)
(3)
With
TCS EAA F1LFS000
fibre optic module to be ordered separately (see page 5/67)
TCS ESM 163F23F0
TCS ESM 243F2CU0
TCS ESM 103F23G0
TCS ESM 103F2LG0
Selection guide:
Pages 5/50 ...
References
(
continued)
