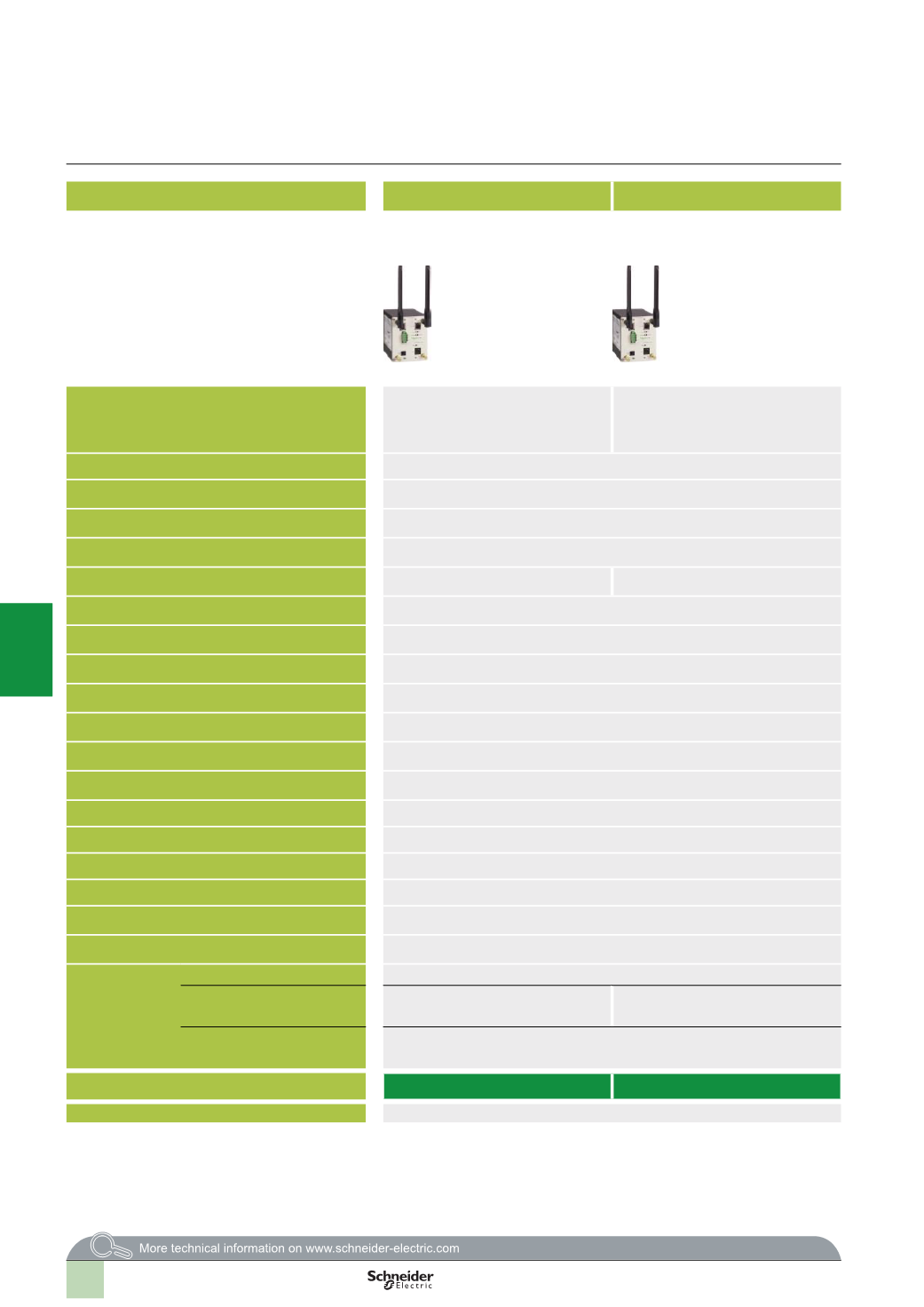

Device type
Wi-Fi 802.11g Access Point
FCC Wi-Fi 802.11g Access Point
Description
Dual band industrial Wi-Fi LANAccess Point/
Client with two independent radio modules
based on IEEE 802.11a/b/g/h/i
Dual band industrial Wi-Fi LANAccess Point/
Client with two independent radio modules
based on IEEE 802.11a/b/g/h/i. With FCC
approval for USA and Canada.
Type
Access point and Client
Wi-Fi standards
IEEE 802.11a/b/g/h/i
Operating frequencies
2.4
GHz and 5 GHz
Degree of protection
IP 40
Regional approvals
–
FCC
Mounting
DIN rail
Number of radios
2
Nominal data rate
54
Mbps
Antenna connections
4
x RP-SMA
Ethernet connections
2
x 10/100BASE-TX
Wi-Fi connections
2
x WLAN interfaces, 8 SSIDs per interface
(1)
Range
Up to 20 km with external antenna (frequency range and data rate dependent on type of antenna)
Dimensions
80
x 100 x 135 mm
Operating temperature
-30
°C to +50°C
Storage temperature
-40
°C to +70°C
Humidity
Max. 95% (non-condensing)
Power supplies
2
x 24 V
c
; 12
V
c
,
redundant capable
2
x PoE per IEEE802.3af, redundant capable
(2)
Consumption
12
V
c
: 625
mA; 24 V
c
: 417
mA
PoE (48 V
c
): 167
mA
(2)
Agency
certifications
Safety
EN 60950
Radio
EN 300328, EN 301893, notified in all EU
countries
FCC identifier: U99BAT54RAIL, IC certification
number: 4019A-BAT54R
Environment
EN 61131 for operation in automation environment.
EMC test documentation for E1 certification (cars and vehicles) available
References
TCSG WA 242
(3)
TCSG WA 242F
(3)
Pages
5/84
(1)
SSID: Service Set IDentifier
(2)
PoE: Power over Ethernet
(3)
All TCSG
pp pppp
products are supplied with 2 pen-type antennas
