PCMCIAmemory extension cards
Premium processors can support up to 2 memory extension cards. However, usable memory capacity is limited to the
maximum size defined for the processor model.
See pages 2/2 and 1/13.

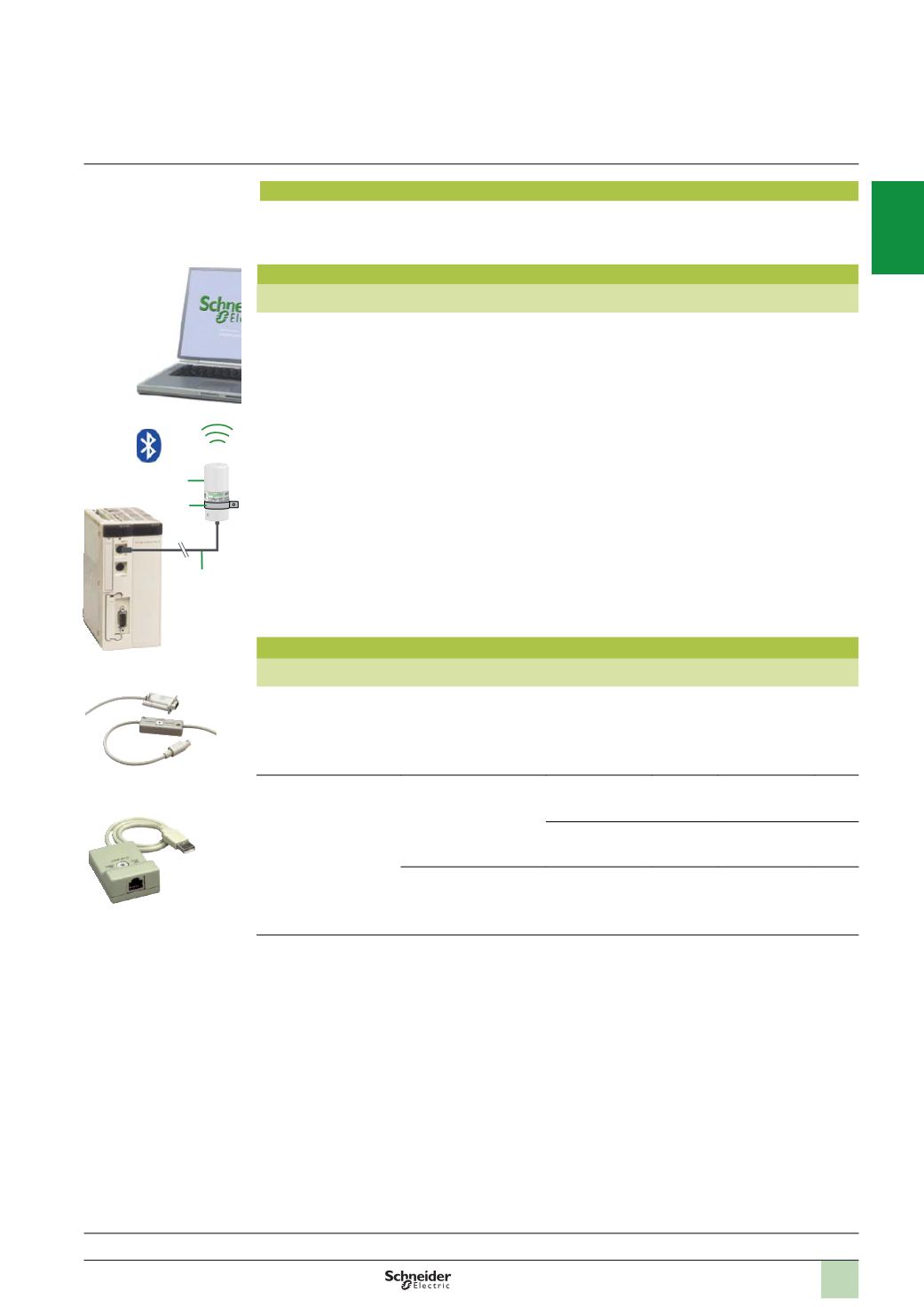

Accessories for connection to the PC programming terminal
Description
Use
Reference
Weight
kg
Universal Bluetooth
®
interface (UBI)
for terminal port (TER)
Provides Bluetooth
®
connectivity for products such as the
Modicon M340/Premium platforms and Altivar/Lexium servo
drives, via their serial port (RS 485).
Used for setting-up and maintenance of products.
Designed for permanent installation and can be safely fitted on
the inside or outside of electrical enclosures.
b
Protocols supported: Modbus and Uni-Telway.
b
Powered via the product’s RS 485 serial port
b
Max. range in direct line of sight: 20 m
The kit comprises:
b
1
:
a universal Bluetooth
®
interface(UBI)
b
2
:
a fixing clamp for installation inside the electrical enclosure
b
3
:
an RJ45/mini-DIN cable (length 1 m)
b
an RJ45/RJ45 cable (length 1 m)
b
a CD with configuration software and user manual.
TCS WAAC 13FB
0.320
Cables for connection to the PC programming terminal
Description
Use
from terminal port
to PC
Length Reference
Weight
kg
Universal cable for
terminal port/RS 232 port
Mini-DIN (TER or AUX) on:
TSX Micro
Premium TSX P57 1
p
Premium TSX P57 2
p
/3
p
Tap junction TSX PACC 01
RS 232D port
(9-
way SUB-D)
2.5
m
TSX PCX 1031
0.170
Cable for terminal
port/USB port
Mini-DIN (TER or AUX) on:
TSX Micro
Premium TSX P57 1
p
/ 2
p
/3
p
Tap junction TSX PACC 01
USB port
(
USB/RS 485
converter)
0.4
m
TSX CUSB 485
(1)
0.144
USB port
(
mini-DIN/RJ45
cable)
2.5
m
TSX CRJMD 25
(1)
0.150
USB (TER) on:
Premium TSX 57 4
p
/5
p
Quantum 140 CPU 6
p
1
USB port on a PC
terminal
3.3
m
UNY XCA USB 033
–
(1)
The
TSX CUSB 485
converter requires the use of cable
TSX CRJMD 25
(
length 2.5 m, equipped with 1 mini-DIN connector
and 1 RJ45 connector).
References
(
continued)
Modicon Premium automation
platform
0
Unity processors
Presentation:
page 1/4
Description:
pages 1/5 …
Memory structure:
pages 1/8 …
PCMCIA references:
pages 1/12 …
