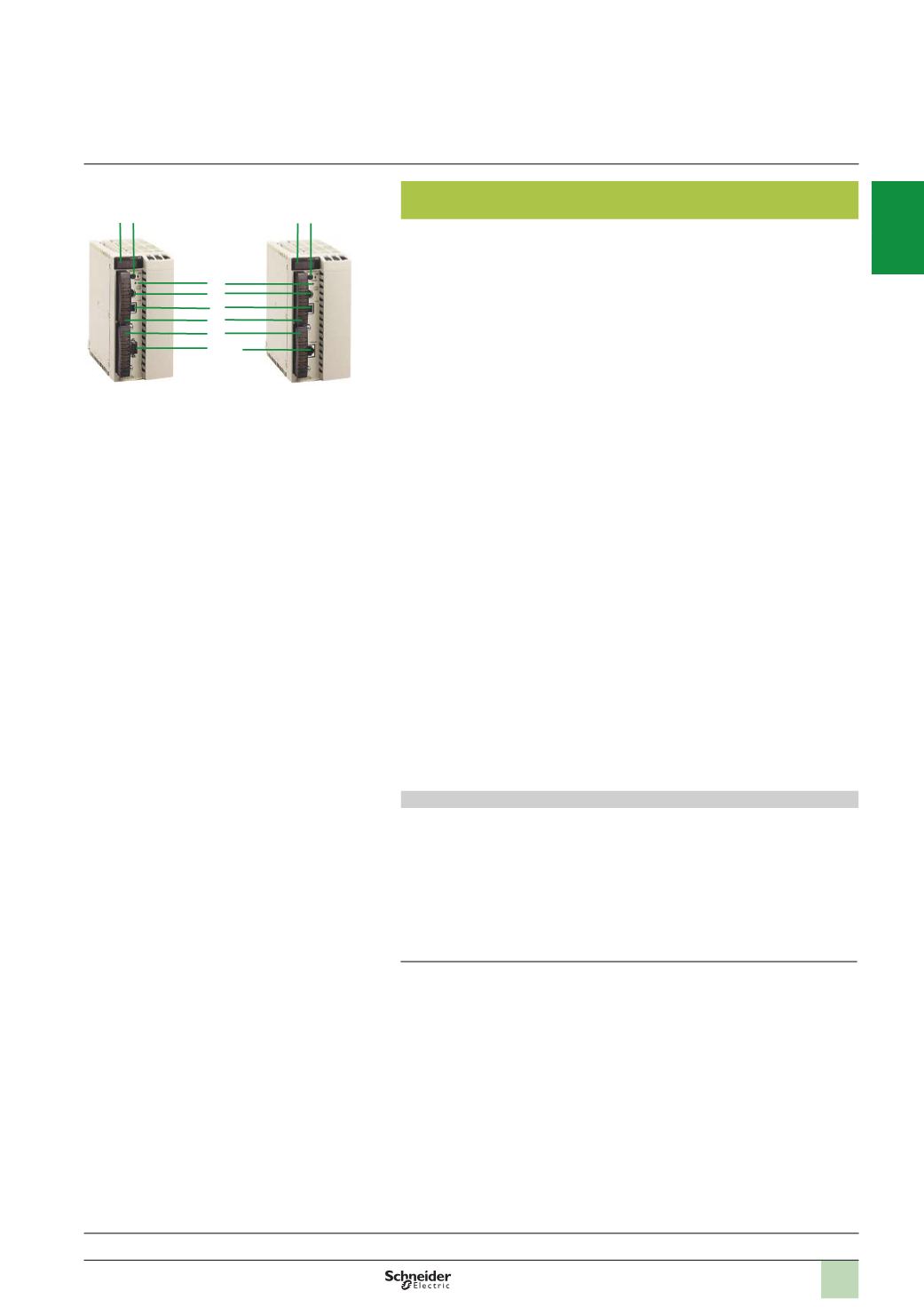

TSX P57 454M/554M/
p
634
M and TSX H57
p
4
M high-
performance processors
(1)
Premium double-format high-performance processors
TSX P57 454M/554M
/
4634
M
/
5634
M/6634M
and
TSX H57 24M/44M
(1)
feature the
following on the front panel:
1
A display block with 5 LEDs:
v
RUN LED (green): Processor in operation (program execution)
v
ERR LED (red): Fault on the processor or its on-board devices (PCMCIAmemory
card and PCMCIA communication card)
v
I/O LED (red): Faults occurring on another PLC station module or configuration fault
v
TER LED (yellow): Activity on the AUX terminal port
v
FIP LED (red): Activity on integrated Fipio bus (TSX P57 454/554M model).
In the case of models with an integrated Ethernet port
(
TSX P57 4634M
/
5634
M
/
6634
M
),
this display block features 6 additional LEDs:
v
RUN LED (green): Ethernet Modbus/TCP port ready
v
ERR LED (red): Ethernet port fault
v
COL LED (red): Collision detection
v
STS LED (yellow): Ethernet link diagnostics
v
Two TX and RX LEDs (yellow): Transmission/reception activity
2
A “Memory extract” button for extracting the PCMCIAmemory extension card.
The associated “Memory extract ready” LED indicates that this card can be
extracted safely.
3
ARESET button causing a cold start of the PLC when pressed.
4
An 8-way female mini-DIN connector marked AUX for connecting a programming,
adjustment or operator dialogue terminal
5
AUSB type connector marked TER for connecting a programming terminal
(
requires the PC-compatible 3 m connection cable, reference
UNY XCA USB 033
,
to be ordered separately)
6
A PCMCIA slot (no. 0) for a memory extension card
7
A PCMCIA slot (no. 1) for a communication card or memory extension card for
storing additional data
8
A 9-way SUB-D connector (on TSX P57 454M/554M models) for Fipio bus
communication (Fipio manager port)
9
An RJ45 connector (on TSX P57 4634M/5634M/6634M models) for connection to
the Ethernet Modbus/TCP 10BASE-T/100BASE-TX network
USB terminal port
The USB port
5
offers a faster useful data rate (12 Mbit/s) than the Uni-Telway
terminal port available on Premium processors. The USB port is compatible with
Unity Pro programming software and the OPC Factory Server
(
OFS)
.
454
M
/
554
M
/
p
634
M
processors can be connected to a USB bus comprising several
peripheral devices, however:
b
Only one processor must be connected to the USB bus
b
No device on the USB bus (modem, printer) can be controlled by the PLC.
(1)
TSX H57 24M
/
44
M
Hot Standby processor, see description on page 4/53.
