Schneider Electric Modicon Premium Automation Platform, May 2012

16 / 413

1/10

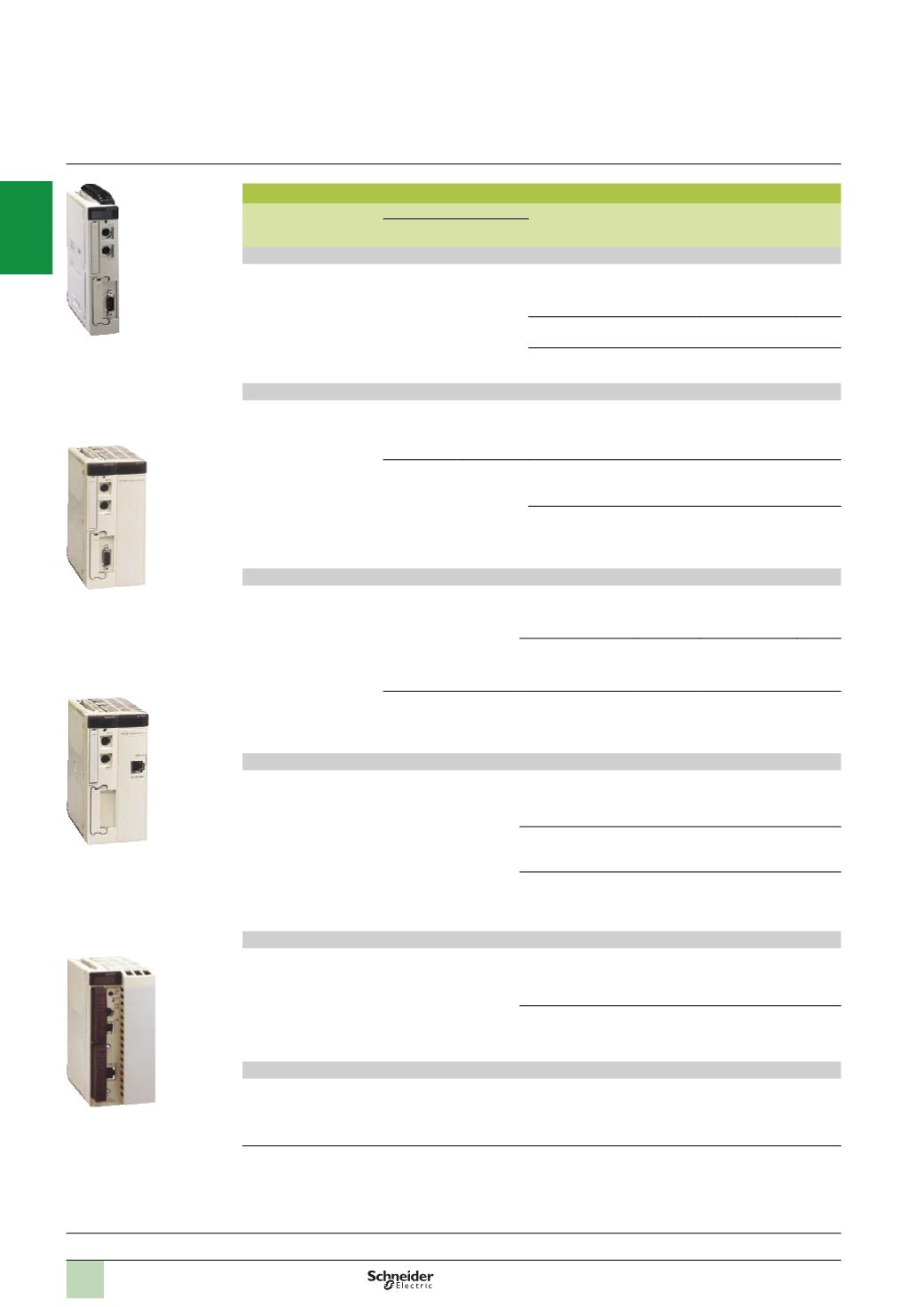

References
TSX 57 processors
I/O capacity (1) Capacity Maximum number
of bus/network
modules
Integrated
port
Reference Weight
kg
Memory Control
channels
TSX 57 1p 4 racks (2)
512 discrete I/O
24 analog I/O
8 application-specific
channels
96 Kb
integrated
224 Kb max. on
PCMCIA card
0 1 network
2 AS-Interface buses
1 CANopen bus
– TSX P57 104M 0.570
2 AS-Interface buses
1 CANopen bus
Ethernet
Modbus/TCP
TSX P57 1634M 0.740
1 Ethernet network
2 AS-Interface buses
Fipio TSX P57 154M 0.592
TSX 57 2p 16 racks (2)
1024 discrete I/O
80 analog I/O
24 application-specific
channels
160 Kb
integrated
768 Kb max. on
PCMCIA card
10 1 network
4 AS-Interface buses
1 CANopen bus (3)
1 fieldbus (3)
Ethernet
Modbus/TCP
TSX P57 2634M 0.734
192 Kb
integrated
768 Kb max. on
PCMCIA card
10 2 Ethernet networks Ethernet
dedicated to
Hot Standby
TSX H57 24M 1.021
2 Ethernet networks
4 AS-Interface buses
1 CANopen bus (3)
1 fieldbus (3)
Fipio TSX P57 254M 0.628
TSX 57 3p 16 racks (2)
1024 discrete I/O
128 analog I/O
32 application-specific
channels
192 Kb
integrated
1792 Kbmax. on
PCMCIAcard
15 3 networks
8 AS-Interface buses
1 CANopen bus (3)
3 fieldbuses (3)
– TSX P57 304M 0.618
2 networks
8 AS-Interface buses
1 CANopen bus (3)
3 fieldbuses (3)
Ethernet
Modbus/TCP
TSX P57 3634M 0.744
208 Kb
integrated
1792 Kbmax. on
PCMCIAcard
15 3 networks
8 AS-Interface buses
1 CANopen bus (3)
3 terrain fieldbuses (3)
Fipio TSX P57 354M 0.634
TSX 57 4p 16 racks (2)
2040 discrete I/O
256 analog I/O
64 application-specific
channels
440 Kb
integrated
2048 Kbmax. on
PCMCIAcard
20 3 networks
8 AS-Interface buses
1 CANopen bus (3)
4 fieldbuses (3)
Ethernet
Modbus/TCP
TSX P57 4634M 1.033
4 Ethernet
networks
Ethernet
dedicated to
Hot Standby
TSX H57 44M 1.021
4 networks
8 AS-Interface buses
1 CANopen bus
4 fieldbuses (3)
Fipio TSX P57 454M 1.008
TSX 57 5p 16 racks (2)
2040 discrete I/O
512 analog I/O
64 application-specific
channels
1 Kb integrated
7168 Kbmax. on
PCMCIAcard
30 3 networks
8 AS-Interface buses
1 CANopen bus
5 fieldbuses (3)
Ethernet
Modbus/TCP
TSX P57 5634M 1.033
4 networks
8 AS-Interface buses
1 CANopen bus
5 fieldbuses (3)
Fipio TSX P57 554M 1.012
TSX 57 6 p 16 racks (2)
2040 discrete I/O
512 analog I/O
64 application-specific
channels
2 Kb integrated
7168 Kbmax. on
PCMCIAcard
30 3 networks
8 AS-Interface buses
1 CANopen bus
5 fieldbuses (3)
Ethernet
Modbus/TCP
TSX P57 6634M 1.019
(1) Cumulative maximum values. The number of remote I/O on the various buses is not taken into account.
(2) Maximum number of TSX RKY 4EX/ 6EX/8EX (racks (4, 6 or 8 slots). Using the TSX RKY 12 EX rack (12 slots) is the same
as using 2 racks with 4, 6 or 8 slots.
(3) Fieldbus: I NTERBUS or Profibus DP.
Modicon Premium automation
platform
Unity processors
Presentation:
page 1/4
Description:
pages 1/5 …
Memory structure:
pages 1/8 …
PCMCIA references:
pages 1/12 …
TSX P57 154M
TSX P57 254M/354M
TSX P57 1634M/2634M/3634M
TSX P57 4634M/5634M/6634M
TSX H57 24M/44M
