A-6

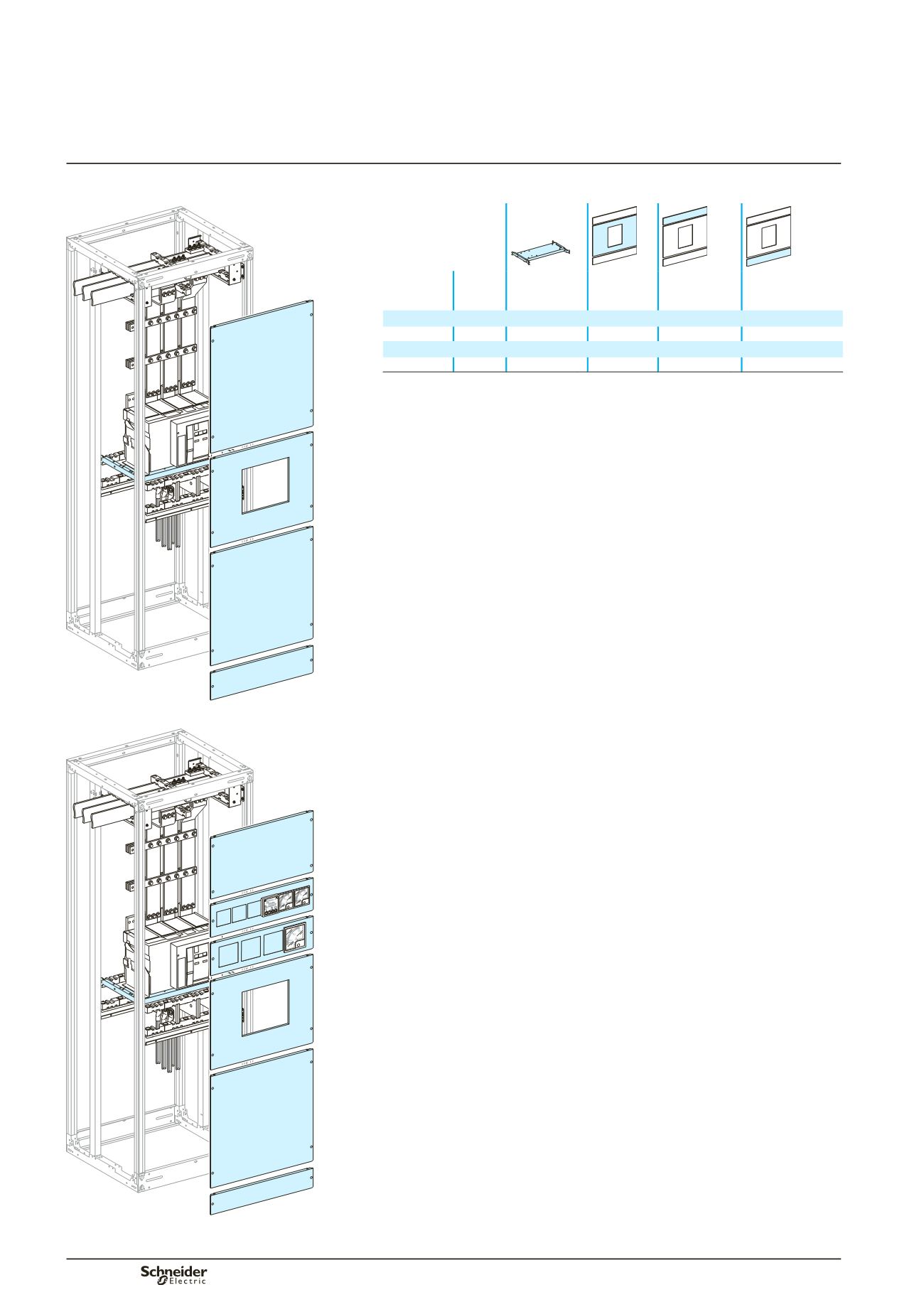

Functional units
Device installation
DD382930
DD380836
DD380852
DD380853
DD380854
Device
No. of
vertical
modules
Mounting plate Cut-out
front plate
Upstream front
plate
(1)
Downstream
front plate
Fixed device
NW08/32 36
03500
03711
03808
03808 + 03803
Drawout device
NW08/32 36
03500
03710
03808
03808 + 03802
(1)
One or two 3-module front plates for 72 x 72 and 96 x 96 mm measurement devices can be
installed just above the cut-out front plate:
b
1 3-module front plate + 1 plain front plate 03807 (9 modules)
b
2 3-module front plates + 1 plain front plate 03806 (6 modules).
Human-switchboard interface, see page A-68.
DD382931
Masterpact NW08 to NW32
Dedicated cubicle
Circuit breakers
