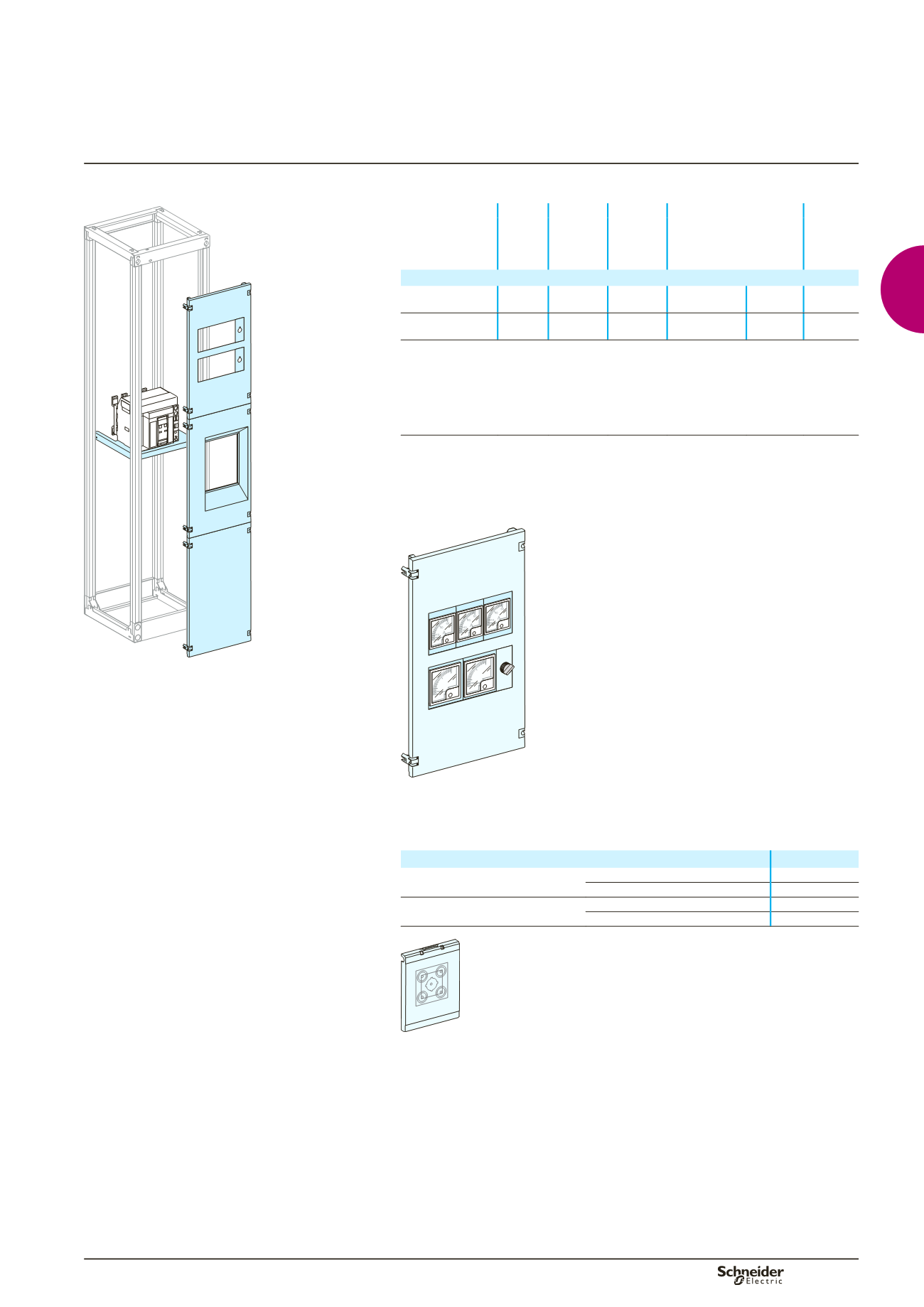

A-11
Functional units
W = 400 mm
Installation
DD382506
Device
No. of
vertical
modules
Mounting
plate
Cut-out
front plate
Upstream front plate
(1)
Downst.
front plate
(1)
plain
cut-out for
72 x 72 mm or
96 x 96 mm
meters
or plain
Designation
Fixed
Masterpact NT
36
03489 03698 03723
03722 03722
Drawout
Masterpact NT
36
03488 03699 03723
03722 03722
(1)
Hinged or reversible (left or right-hand opening) front plates connect directly to the framework,
without a front-plate support frame.
Measurement-device installation
Measurement devices are installed on a front plate (03723) using plastic mounting
plates with cut-outs. The front plate can hold:
six 72 x 72 mm cases
or four 96 x 96 mm cases + 2 switches.
b
b
DD382670
Installation of three devices (72 x 72 mm cases) using plastic mounting plates (03902) and two
devices (96 x 96 mm cases) + a switch using plastic mounting plates (03903) on a hinged front
plate (03723).
Cat. no. selection
Designation
Cat. no.
Plastic mounting plate with cut-outs for 72 x 72 mm devices
03902
for 96 x 96 mm devices
03903
Plain plastic mounting plate
(blanking plate)
for 72 x 72 mm holes
03900
for 96 x 96 mm holes
03901
DD382633
The plain mounting plates have knock-outs for lamps, pushbuttons, switches or devices.
Knock-outs for 03900: 4 dia. 16 mm, 5 dia. 22 mm or one for a 45 x 45 mm device.
Knock-outs for 03901: 4 dia. 16 mm, 5 dia. 22 mm or one for a 45 x 45 or 72 x 72 mm device.
A
60
40
10
0
A
60
40
10
0
Masterpact NT06 to NT16
L400 dedicated cubicle
3P
Circuit breakers
