Prisma Plus System P

281 / 356

D-33

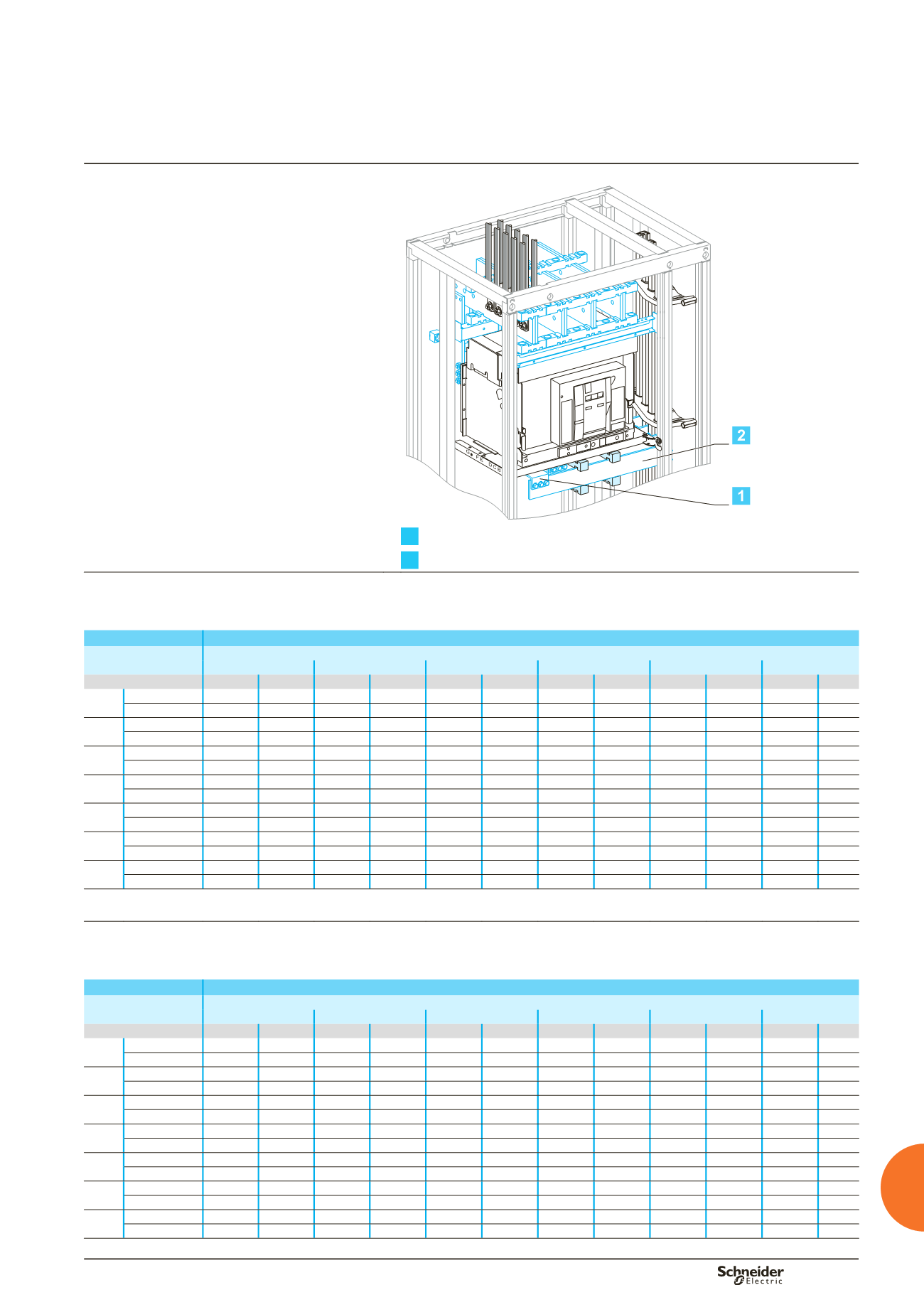

Masterpact NW08 to NW32
Drawout, top or bottom
connection DD383670
1 Connection.
2 Horizontal link.
Connection
Flat bars, 10 mm thick
Device Permissible current (A)
Ambient temperature around the switchboard
25 °C 30 °C 35 °C 40 °C 45 °C 50 °C
IP y 31 IP > 31 IPy 31 IP > 31 IP y 31 IP > 31 IP y 31 IP > 31 IP y 31 IP > 31 IP y 31 IP > 31
NW08 Size per phase 1b 80 x 10 1b 80 x 10 1b 80 x 10 1b 80 x 10 1b 80 x 10 1b 80 x 10 1b 80 x 10 1b 80 x 10 1b 80 x 10 1b 80 x 10 1b 80 x 10 b
I (A) 800 800 800 800 800 800 800 800 800 800 800
NW10 Size per phase 1b 80 x 10 1b 80 x 10 1b 80 x 10 1b 80 x 10 1b 80 x 10 1b 80 x 10 1b 80 x 10 1b 80 x 10 1b 80 x 10 1b 80 x 10 1b 80 x 10 b
I (A) 1000 1000 1000 1000 1000 1000 1000 1000 1000 1000 1000
NW12 Size per phase 1b 80 x 10 1b 80 x 10 1b 80 x 10 1b 80 x 10 1b 80 x 10 1b 80 x 10 1b 80 x 10 1b 80 x 10 1b 80 x 10 1b 80 x 10 1b 80 x 10 b
I (A) 1250 1250 1250 1210 1250 1180 1210 1140 1180 1100 1140
NW16 Size per phase 1b 80 x 10 1b 80 x 10 1b 80 x 10 1b 80 x 10 1b 80 x 10 1b 80 x 10 1b 80 x 10 1b 80 x 10 1b 80 x 10 1b 80 x 10 1b 80 x 10 b
I (A) 1560 1480 1520 1430 1480 1380 1430 1330 1380 1280 1330
NW20 Size per phase 2b 80 x 10 2b 80 x 10 2b 80 x 10 2b 80 x 10 2b 80 x 10 2b 80 x 10 2b 80 x 10 2b 80 x 10 2b 80 x 10 2b 80 x 10 2b 80 x 10 b
I (A) 2000 2000 2000 1950 2000 1900 1950 1830 1900 1760 1830
NW25 Size per phase 2b 80 x 10 2b 80 x 10 2b 80 x 10 2b 80 x 10 2b 80 x 10 2b 80 x 10 2b 80 x 10 2b 80 x 10 2b 80 x 10 2b 80 x 10 2b 80 x 10 b
I (A) 2470 2280 2410 2210 2350 2140 2280 2070 2210 2000 2140
NW32 Size per phase 3b 80 x 10 3b 80 x 10 3b 80 x 10 3b 80 x 10 3b 80 x 10 3b 80 x 10 3b 80 x 10 3b 80 x 10 3b 80 x 10 3b 80 x 10 3b 80 x 10 b
I (A) 2960 2730 2890 2630 2820 2530 2730 2450 2630 2370 2530
Horizontal link
Flat bars, 10 mm thick
Device Permissible current (A)
Ambient temperature around the switchboard
25 °C 30 °C 35 °C 40 °C 45 °C 50 °C
IP y 31 IP > 31 IPy 31 IP > 31 IP y 31 IP > 31 IP y 31 IP > 31 IP y 31 IP > 31 IP y 31 IP > 31
NW08 Size per phase 1b 60 x 10 1b 60 x 10 1b 60 x 10 1b 60 x 10 1b 60 x 10 1b 60 x 10 1b 60 x 10 1b 60 x 10 1b 60 x 10 1b 60 x 10 1b 60 x 10 b
I (A) 800 800 800 800 800 800 800 800 800 800 800
NW10 Size per phase 1b 60 x 10 1b 60 x 10 1b 60 x 10 1b 60 x 10 1b 60 x 10 1b 60 x 10 1b 60 x 10 1b 60 x 10 1b 60 x 10 1b 60 x 10 1b 60 x 10 b
I (A) 1000 1000 1000 1000 1000 1000 1000 1000 1000 1000 1000
NW12 Size per phase 1b 60 x 10 1b 60 x 10 1b 60 x 10 1b 60 x 10 1b 60 x 10 1b 60 x 10 1b 60 x 10 1b 60 x 10 1b 60 x 10 1b 60 x 10 1b 60 x 10 b
I (A) 1250 1250 1250 1210 1250 1180 1210 1140 1180 1100 1140
NW16 Size per phase 1b 80 x 10 1b 80 x 10 1b 80 x 10 1b 80 x 10 1b 80 x 10 1b 80 x 10 1b 80 x 10 1b 80 x 10 1b 80 x 10 1b 80 x 10 1b 80 x 10 b
I (A) 1560 1480 1520 1430 1480 1380 1430 1330 1380 1280 1330
NW20 Size per phase 2b 60 x 10 2b 60 x 10 2b 60 x 10 2b 60 x 10 2b 60 x 10 2b 60 x 10 2b 60 x 10 2b 60 x 10 2b 60 x 10 2b 60 x 10 2b 60 x 10 b
I (A) 2000 2000 2000 1950 2000 1900 1950 1830 1900 1760 1830
NW25 Size per phase 2b 80 x 10 2b 80 x 10 2b 80 x 10 2b 80 x 10 2b 80 x 10 2b 80 x 10 2b 80 x 10 2b 80 x 10 2b 80 x 10 2b 80 x 10 2b 80 x 10 b
I (A) 2470 2280 2410 2210 2350 2140 2280 2070 2210 2000 2140
NW32 Size per phase 2b100x10 2b100x10 2b100x10 2b100x10 2b100x10 2b100x10 2b100x10 2b100x10 2b100x10 2b100x10 2b100x10 b
I (A) 2960 2730 2890 2630 2820 2530 2730 2450 2630 2370 2530
b connection not possible. Note: the values indicated above have been validated for Prisma Plus switchboards.
Designing connections u 630 A
between a device and busbars
Drawout Masterpact NW08 to NW32
Front or rear connection
Additional informations
Designing electrical
characteristics
