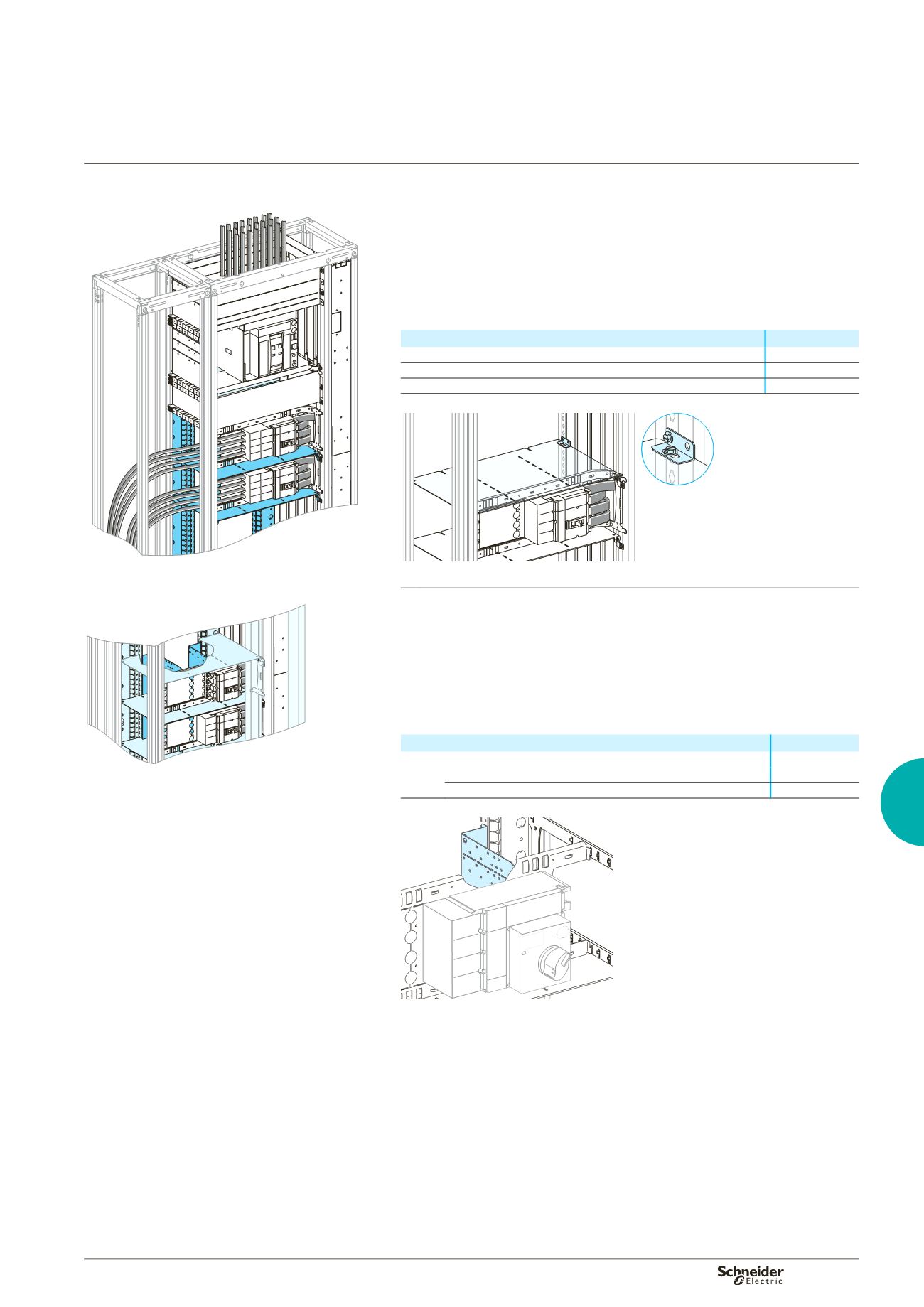

Prisma Plus System P

B-31

Distribution

Form 3 partitioning

Front connection.

Presentation

A horizontal metal partition can be used to physically separate functional units from

one another.

It is fixed at the rear by a support (two uprights) secured to the framework (400 mm

deep) or to the intermediate uprights (600 mm deep frameworks).

A set of brackets can be used to install partial Form 3 partitioning in the

does not take up any useful space in the switchboard.

Cat. no. selection

DD383719

Designation

Cat. no.

Horizontal metal partition, W = 650 mm

04901

Rear support for partitions, W=650 mm

04943

6 universal angle brackets

03583

DD383107

04901 + 04943

04901 + 03583

DD383081

Rear connection

Presentation

For rear connection, in addition to the horizontal partitions, vertical partitions are

required at the rear of each functional unit.

There are two heights:

3 to 4 modules

5 to 6 modules.

Cat. no. selection

Designation

Cat. no.

Vertical partitions (one cat. no. per functional unit)

3 to 4 modules

04955

5 to 6 modules

04956

Dd383601

Vertical partitions for rear connected Compact NSX250.

Form 3 partitioning

Main distribution
