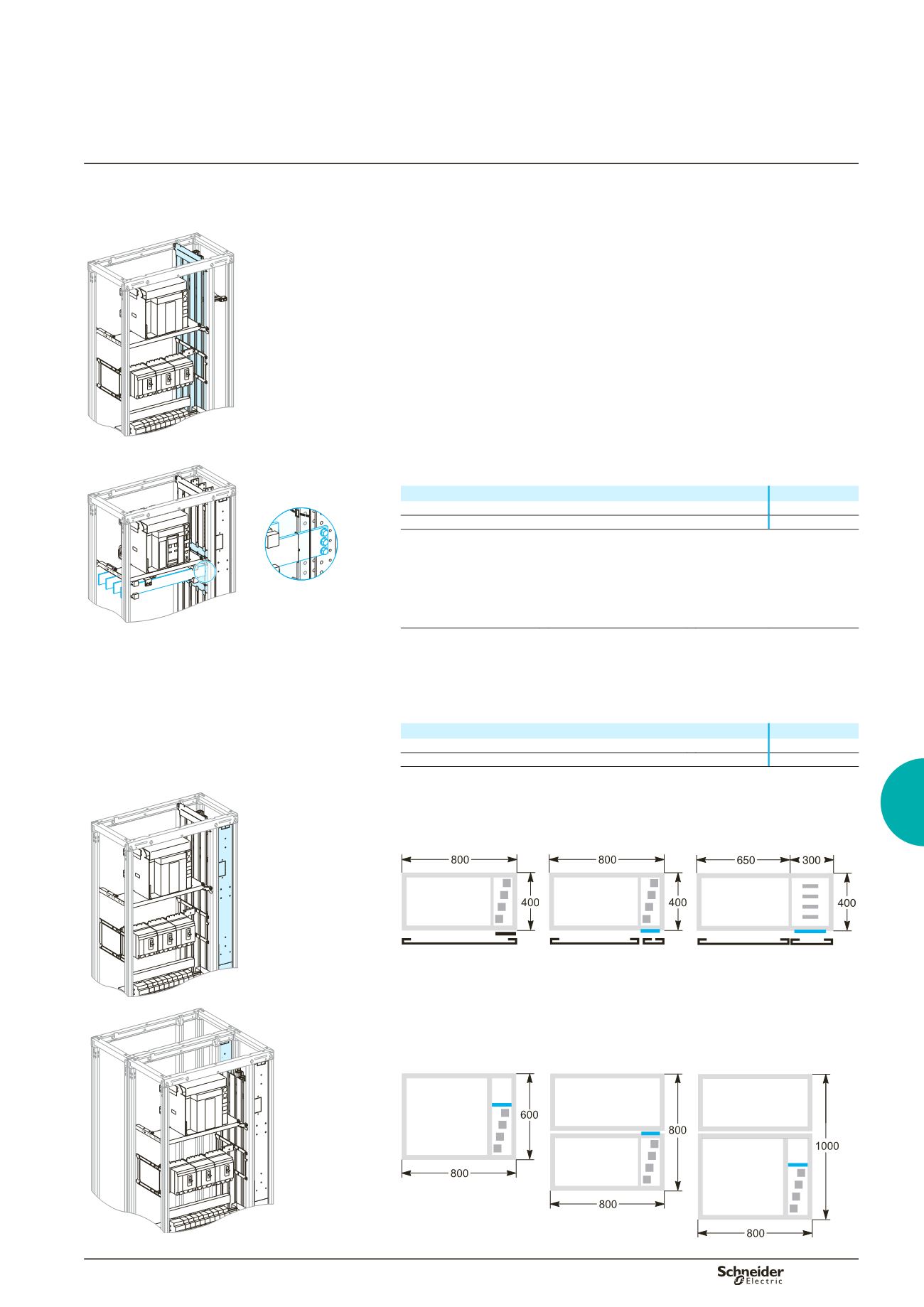

B-27
Distribution
Partitioning of lateral vertical
busbars
Lateral partitioning
vertical barrier made of insulating slats
can be installed on both sides of Linergy and flat busbars
made up of:
four supports that clip to the framework
five extruded slats that clip to the supports
two metal plates at the top and bottom that can be cut out to pass a PE or PEN
conductor, or one or two 30 x 60 mm trunking sections
the space between the slats is sufficient for prefabricated connections (one copper
bar, 5 or 10 mm thick, or insulated flex ble bars) or for cables up to 35 mm², while
maintaining the degree of protection IP2X
compliance with standard IEC 695.2.1 concerning withstand to fire.
Form 2 restoration for side-barrier cut-out
This kit enables passage of the connection between a device > 1600 A (NW, INS)
and lateral vertical busbars.
It is made up of an insulated plate (six modules high = 300 mm) that can be cut as
required, supplied with supports and the necessary hardware.
It can be installed at any height in the switchboard.
Cat. no. selection
b
b
b
v
v
v
b
b
DD383712
04922.
DD383713
Designation
Cat. no.
Form 2 side barrier
04922
Form 2 restoration kit
04924
04924.
Front and rear barrier
Barrier, W = 150 mm or W = 300 mm, from top to bottom of the cubicle.
Can be installed in the front and rear of the busbar compartment.
Protects against direct contact with the busbars.
Cat. no. selection
Designation
Cat. no.
Front or rear barrier for lateral ver ical busbars
04921
Front or rear barrier for lateral ver ical busbars W = 300 mm
(1)
04920
(1)
A busbar support (04666) must be mounted for the bottom fixture of the 300 mm wide barrier.
DD383714
Front protection
This barrier is not required in front when the cubicle is equipped with a plain or
transparent door.
With door
With cover frame
Framework width 300 mm
DD381588
DD381589
DD382528
04921
04920
For 800 mm cubicles :
the door is systematically supplied with a barrier.
the cover frame is supplied with a wicket door, W = 150 mm, on which devices can
be mounted. A front barrier is indispensable.
b
b
DD383715
Rear protection
A barrier is required at the rear of the busbar compartment in cubicles that are 600,
800 and 1000 mm deep.
DD382440
Form 2 partitioning
Main distribution
