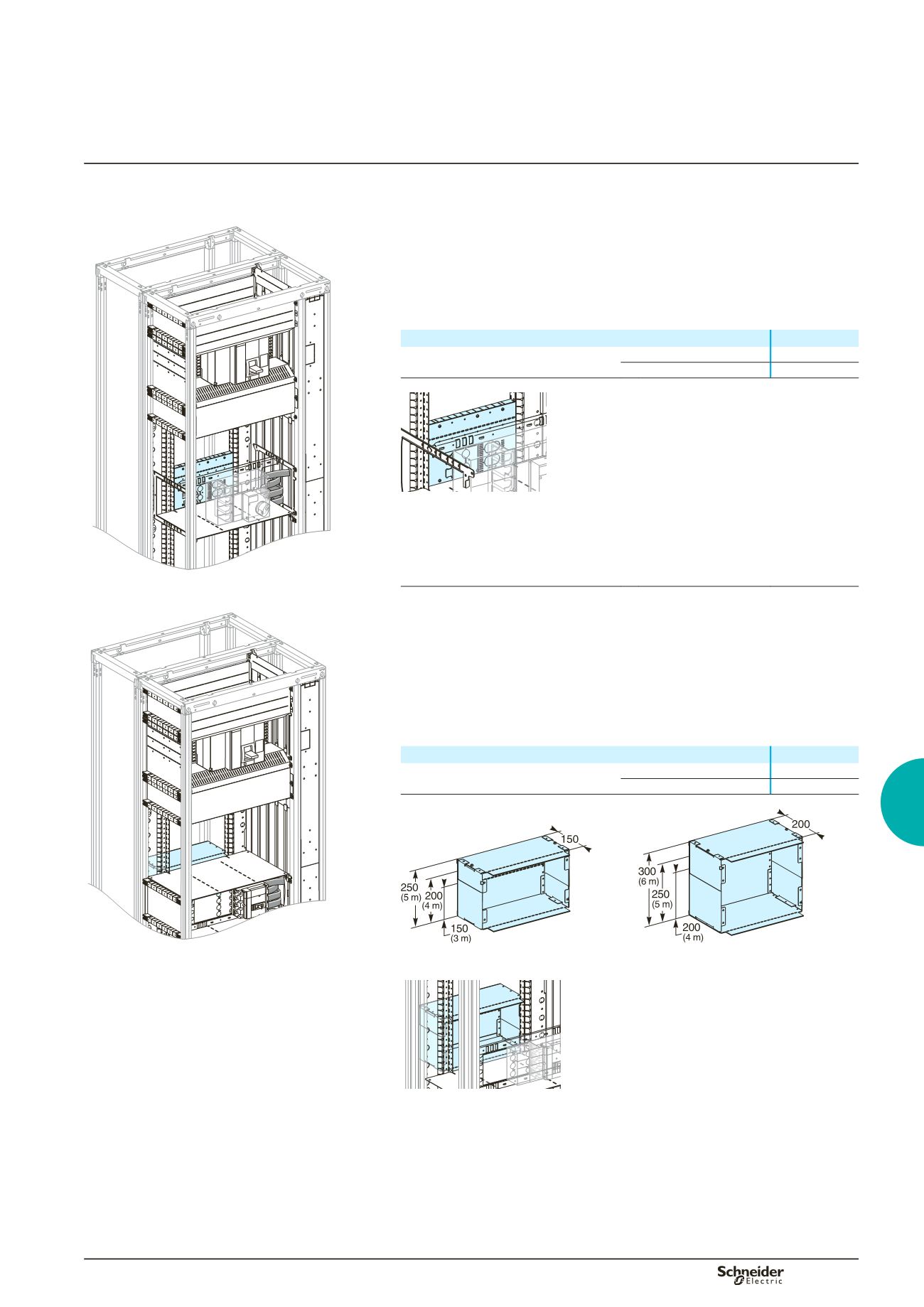

B-35
Distribution
Rear connection
Form 4a - direct connection to the device
Presentation
On a cubicle already equipped with Form 2 and 3 partitions, Form 4 is achieved by
installing a gland plate at the rear of each functional unit. They are connected directly
to the rear supports for Form 3 partitions.
It is available in two heights:
3 to 4 modules
5 to 6 modules.
Cat. no. selection
b
b
Dd383605
Designation
Cat. no.
Form 4 gland plate
3 to 4 modules
04951
5 to 6 modules
04952
Dd383607
Dd383606
Form 4b - connection at the rear of the cubicle
Presentation
On a cubicle already equipped with Form 2 and 3 partitions, Form 4 is achieved by
installing a Form 4 cover. It comprises two height-adjustable metal flanges and
plastic gland plates that can be easily cut out at the rear and bottom.
It is available in two versions:
3 to 5 modules (D = 150 mm)
4 to 6 modules (D = 200 mm).
Cat. no. selection
v
v
Designation
Cat. no.
Form 4 cover for connection transfer
assembly
3 to 5 modules
04953
4 to 6 modules
04954
DD382038
DD382039
04954.
04953.
DD383090
Form 4 partitioning
Outgoing device
Main distribution
