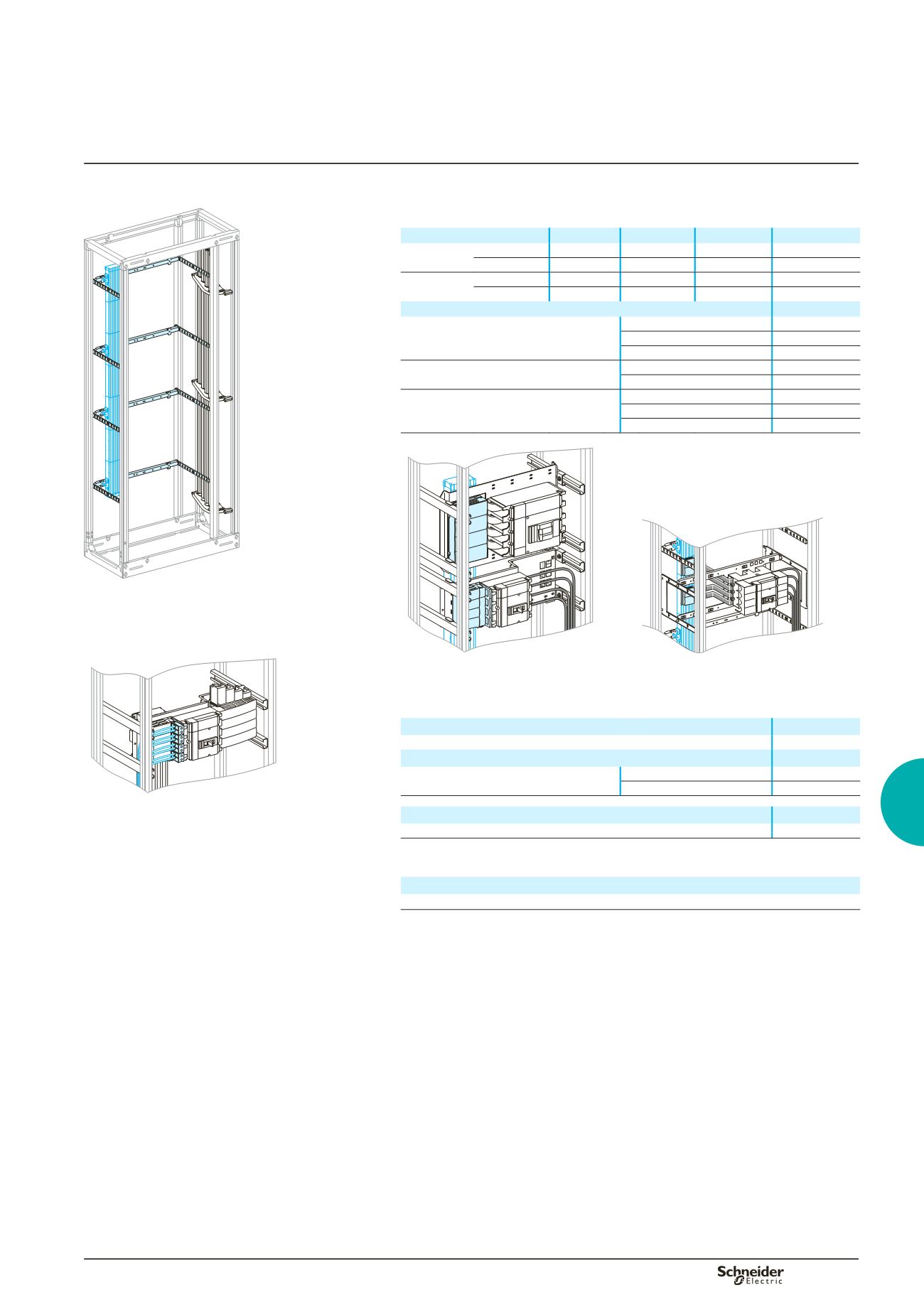

Distribution
160/630 A Powerclip busbars
Available in two lengths (1000 and 1400 mm) in three and four-pole versions. The
busbars can be cut to length every 200 mm.
Prefabricated connections are available for the devices.
DD382579
Powerclip busbars
160 A 250 A 400 A
630 A
Three-pole L = 1000 mm
04111
04112
04113
04114
L = 1400 mm
04116
04117
04118
04119
Four-pole L = 1000 mm
04121
04122
04123
04124
L = 1400 mm
04126
04127
04128
04129
Connection between incoming device and Powerclip busbars Cat. no.
Power supply block (with connection)
NSX250
04060
NSX400
04070
NSX630
04071
Universal power supply block
(without connection)
100/250 A
04061
400/630 A
04074
Connection for universal power supply block Vertical NSX100/250
04062
Vertical NSX100/250 in duct
04064
Vertical NSX400/630 in duct
04073
DD383646
DD383644
DD383645
NSX400 power supply block (
04070
) between
incoming device and busbars.
NSX250 power supply block (
04060
) between
busbars and Compact NS250.
250 A universal power supply block (
04061
) +
250 A connection (
04062
) between incoming
device and busbars.
Connection between 200 AMulticlip and Powerclip busbars Cat. no.
200 A 4P connection for Multiclip (supplied with mounting hardware)
04021
35 mm² additional blocks
Cat. no.
35 mm² additional blocks
3P
04155
4P
04156
35 mm² 4P additional blocks (04156).
Busbar connection
Cat. no.
4 160 A connections, L = 230 mm (for NSA160)
04146
A 45 mm² ferrule for connection to tunnel terminals is crimped to one end.
A 45° ring lug is crimped to the other end.
Cable lugs
Bare tubular elbow cable lugs: see page D-46
630 A Powerclip busbars
Secondary distribution
