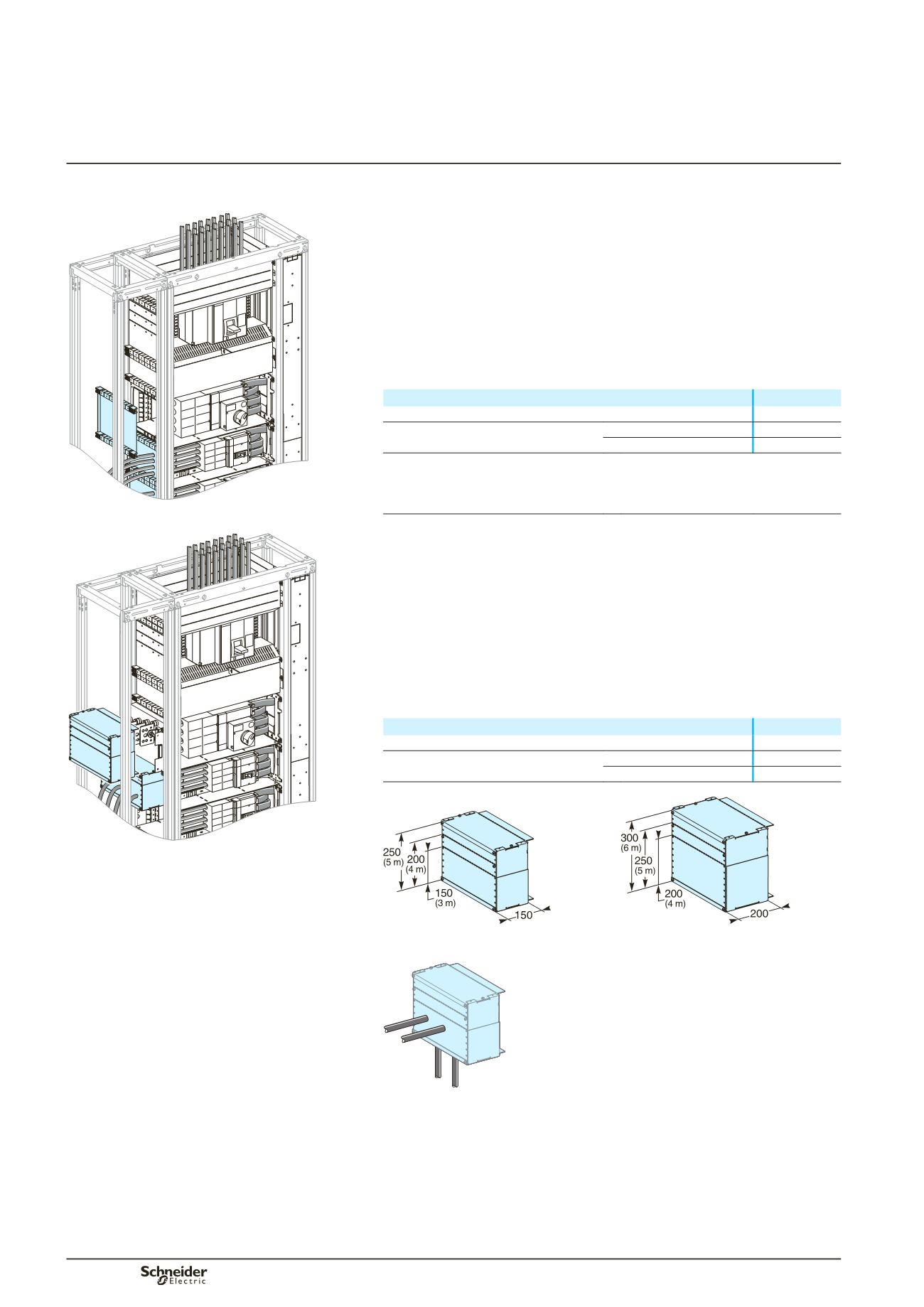

Distribution
Front connection
Form 4a - direct connection to the device
Presentation
On a cubicle already equipped with Form 2 and 3 partitions, Form 4 is achieved by
installing:
a backplate (one cat. no. per cubicle) made up to two metal half panels mounted
on the rear supports for Form 3 partitions. This backplate is not indispensable for
400 mm deep frameworks
a plastic gland plate that can be easily cut out (one for each functional unit) and is
mounted on the framework.
There are two heights:
3 to 4 modules
5 to 6 modules.
Cat. no. selection
b
b
b
b
Dd383603
Designation
Cat. no.
Form 4 backplate (one cat. no. per cubicle)
04946
Form 4 gland plate
3 to 4 modules
04951
5 to 6 modules
04952
Dd383604
Form 4b - connection in a lateral compartment
Presentation
On a cubicle already equipped with Form 2 and 3 partitions, Form 4 is achieved by
installing:
a backplate (one cat. no. per cubicle) made up to two metal half panels mounted
on the rear supports for Form 3 partitions. This backplate is not indispensable for
400 mm deep frameworks
a cover with plastic gland plates that can be easily cut out on the side and bottom.
It is available in two heights:
3 to 5 modules, 150 mm wide
4 to 6 modules, 200 mm wide.
Cat. no. selection
b
b
v
v
Designation
Cat. no.
Form 4 backplate (one cat. no. per cubicle)
04946
Form 4 cover for connection transfer
assembly
3 to 5 modules (W = 150 mm)
04953
4 to 6 modules (W = 200 mm)
04954
DD382035
DD382036
04953.
04954.
DD382438
Form 4 partitioning
Outgoing device
Main distribution
