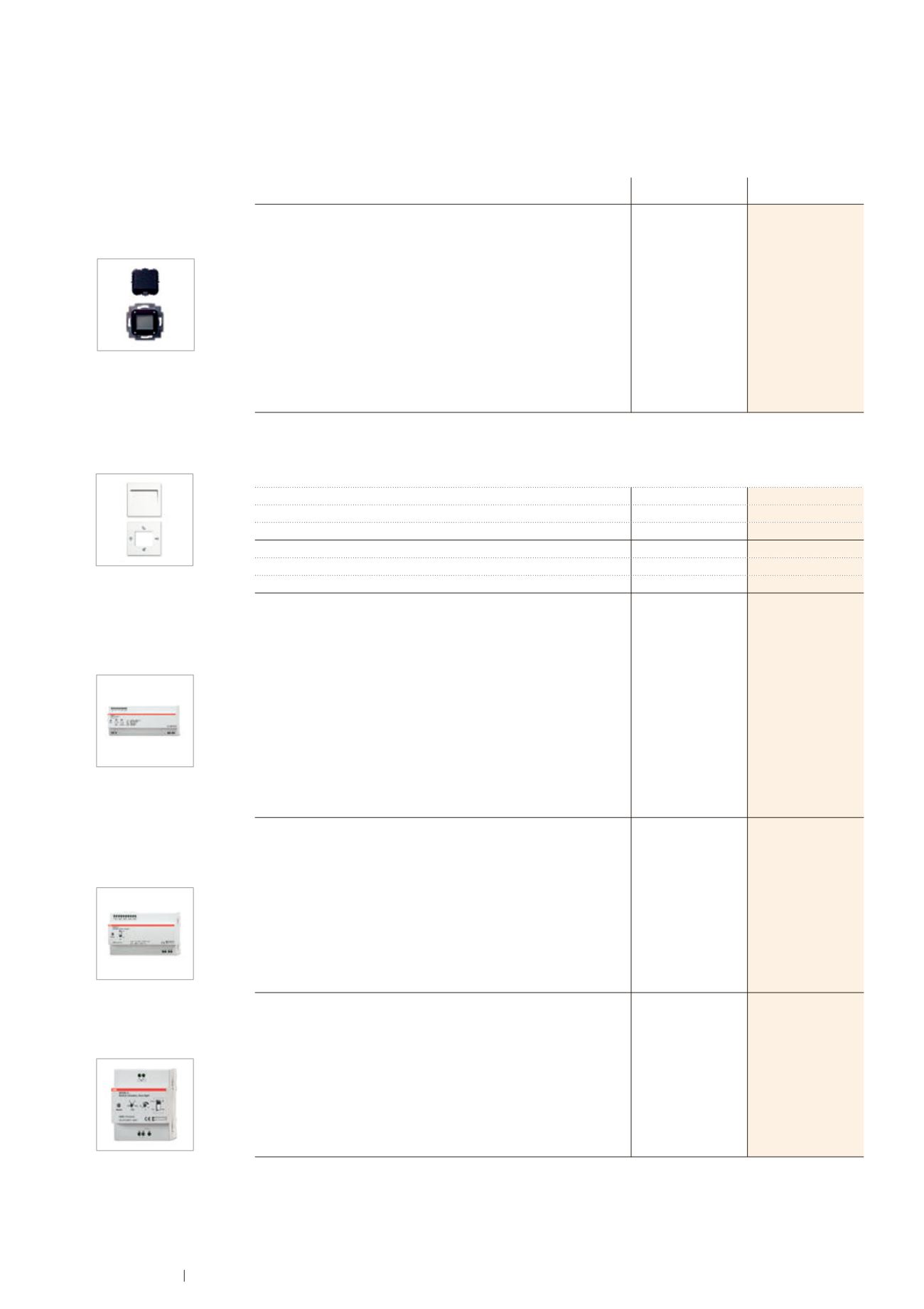

8 / 16
8 Building Automation 0115
ABB Low Voltage
Description
Part No
Product Hierarchy
900004 Order Code
Indoor audio station with display flush mounted
For integrating in Busch-Jaeger switch ranges
Illuminated monochrome display for indicating the most
important functions (e.g. bells, conversation, mute) and
programming menu.
With hands-free function, volume is adjustable.
Easy operation keys for door openers, mute function and light.
Different bell sounds are adjustable for door and floor ringing;
five polyphone bell sounds are available.
Volume of bell sounds is adjustable.
For flush-mounted installation in two flush-mounted sockets.
Display size: 3,8 cm (1,5’’)
Consumer units: 2
Protection class (Device): IP 30
Temperature range (Device): -5 °C to 40 °C
83200 U-500
8300-0-0218
Cover plates
For indoor audio station with display.
Protection class (Device): IP 30
Temperature range (Device): -5 °C to 40 °C
81 anthracite - future® linear
83260-81-500
8300-0-0220
83 aluminium silver - future® linear
83260-83-500
8300-0-0221
84 studio white - future® linear
83260-84-500
8300-0-0219
84 studio white - solo
83260-84-500
8300-0-0219
84 studio white - Busch-axcent®
83260-84-500
8300-0-0219
84 studio white - carat®
83260-84-500
8300-0-0219
System controller, MDRC
Supply device and controller of the ABB-Welcome system.
For connecting the indoor and outdoor busline.
With output for electrical door opener for 12V~, 1,6A or
potential-free output 30V, 3A.
With output to control hall light directly or via relais (230V, 3A).
Switching time duration of the door opener and the light is adjustable.
For up to 65 consumer units.
Rated voltage: 230 V~, +10 % / -10 %
Output voltage: 28 V
Rated frequency: 50 Hz/60 Hz
Rated power: 42 W
Protection class (Device): IP 20
Temperature range (Device): -5 °C to 45 °C
Dimensions: (L x W x D): 90 mm x 216 mm x 65 mm
Module width: 12 MW
83300-500
8300-0-0125
Auxiliary power supply, MDRC
Additional supply device of the ABB-Welcome system to
increase the number of connectable indoor stations.
For up to 45 consumer units.
Rated voltage: 230 V~, +10 % / -10 %
Output voltage: 28 V
Rated frequency: 50 Hz/60 Hz
Rated power: 28 W
Protection class (Device): IP 20
Temperature range (Device): -5 °C to 45 °C
Dimensions: (L x W x D): 90 mm x 144 mm x 65 mm
Module width: 8 MW
83310-500
8300-0-0126
Switch actuator, door/light, MDRC
To control an additional electrical door opener or additional
hall light directly or via potential-free output 230V, 3A.
Assignment to an outdoor station is adjustable.
Switching time adjustable: for door opener 1 sec to 10 sec;
for light outputs 1 sec to 5 min.
Consumer units: 2
Protection class (Device): IP 20
Temperature range (Device): -5 °C to 45 °C
Dimensions: (L x W x D): 90 mm x 72 mm x 65 mm
Module width: 4 MW
83330-500
8300-0-0123
Building automation
ABB - Welcome door system
Catalogue 2014/2015 |
Door Communication
471
Product
Article-No.
Order-No.
Pack/Qty
Product
Article-No.
Order-No.
Pack/Qty
www.BUSCH-JAEGER-catalogue.comTechnical information
ABB-Welcome
System Devices
ABB-Welcome
Indoor Stations
Indoor audio station with display
1
)
For integrating in Busch-Jaeger switch ranges
Illuminated monochrome display for indicating the most
important functions (e.g. bells, conversation, mute) and
programming menu.
With hands-free function, volu e is adjustable.
Easy operation keys for door openers, mute function and
light.
Different bell sounds are adjustable for door and floor ring-
ing; five polyphone bell sounds are available.
Volume of bell sounds is adjustable.
For flush-mounted installation in two flush-mounted sockets.
Display size: 3,8 cm (1,5’’)
Consumer units: 2
Protection class (Device): IP 30
Temperature range (Device): -5 °C to 40 °C
83200 U-500
8300-0-0218
1
22
1) Additional information about commissioning and operation is contained in the system manual and the
online operating manual of the current e-catalogue.
Cover plates
For indoor audio station with display.
Protection class (Device): IP 30
Temperature range (Device): -5 °C to 40 °C
Busch-Duro 2000
®
SI
212 white
83260-212-500
8300-0-0222
1/18
22
Reflex SI
214 alpine white
83260-214-500
8300-0-0223
1/18
22
future
®
linear
81 anthracite
83260-81-500
8300-0-0220
1/18
22
83 aluminium silver
83260-83-500
8300-0-0221
1/18
22
84 studio white
83260-84-500
8300-0-0219
1/18
22
solo
®
84 studio white
83260-84-500
8300-0-0219
1/18
22
Busch-axcent
®
84 studio white
83260-84-500
8300-0-0219
1/18
22
carat
®
84 studio white
83260-84-500
8300-0-0219
1/18
22
System controller, MDRC
1
)
Supply device and controller of the ABB-Welcome system.
For connecting the indoor and outdoor busline.
With output for electrical door opener for 12V~, 1,6A or
potential-free output 30V, 3A.
With output to control hall light directly or via relais (230V,
3A).
Switching time duration of the door opener and the light is
adjustable.
For up to 65 consumer units.
Rated voltage: 230 V~, +10 % / -10 %
Output voltage: 28 V
Rated frequency: 50 Hz/60 Hz
Rated power: 42 W
Protection class (Device): IP 20
Temperature range (Device): -5 °C to 45 °C
Dimensions: (L x W x D): 90 mm x 216 mm x 65 mm
Module width: 12 MW
83300-500
8300-0-0125
1
22
1) Additional information about commissioning and operation is contained in the system manual and the
online operating manual of the current e-catalogue.
Auxiliary power supply, MDRC
1
)
Additional supply device of the ABB-Welcome system to
increase the number of connectable indoor stations.
For up to 45 consumer units.
Rated voltage: 230 V~, +10 % / -10 %
Output voltage: 28 V
Rated frequency: 50 Hz/60 Hz
Rated power: 28 W
Protection class (Device): IP 20
Temperature range (Device): -5 °C to 45 °C
Dimensions: (L x W x D): 90 mm x 144 mm x 65 mm
Module width: 8 MW
83310-500
8300-0-0126
1
22
1) Additional information about commissioning and operation is contained in the system manual and the
online operating manual of the current e-catalogue.
Switch actuator, door/light, MDRC
1
)
To control an additional electrical door opener or additional
hall light directly or via potential-free output 230V, 3A.
Assignment to an outdoor station is adjustable.
Switching time adjustable: for door opener 1 sec to 10 sec;
for light outputs 1 sec to 5 min.
Consumer units: 2
Protection class (Device): IP 20
Temperature range (Device): -5 °C to 45 °C
Dimensions: (L x W x D): 90 mm x 72 mm x 65 mm
Module width: 4 MW
83330-500
8300-0-0123
1/10
22
1) Additional information about commissioning and operation is contained in the system manual and the
online operating manual of the current e-catalogue.
Bell transformer, 12 V AC 1.3 A, MDRC
1
)
Power supply for an electric door opener.
4 V~, 1.3 A, 8 VA
8 V~, 1. A, 12 VA
12 V~, 1.3 A, 16 VA
Rated voltage: 230 V~
Rated frequency: 50 Hz
Protection class (Device): IP 20
Dimensions: (L x W x D): 90 mm x 36 mm x 65 mm
Module width: 2 MW
83315-500
8300-0-0124
1
22
1) Additional information about commissioning and operation is contained in the system manual and the
online operating manual of the current e-catalogue.
Product
A ticle-No.
Order-No.
Pack/Qty
Product
Ar icle-No.
Order-No.
Pack/Qty
ABB-Welcome
System Devices
ABB-Welcome
Indoor Statio s
Indoor audio station w th display
1
)
For integratin in Busch-Jaeger switch ranges
Illuminated monochrom display f r indicating the most
important functi ns (e.g. bells, c nversation, mute) and
programming m u.
With hands-fr e function, volume is adjustable.
Easy operation k ys for door openers, mute function and
light.
Different bell sounds are adjustable for door and floor ring-
ing; five polyphone bell sounds are available.
Volume of bell sounds is adjustable.
For flush-mounted installation in two flush-mounted sockets.
Display size: 3,8 cm (1,5’’)
Consumer units: 2
Protection class (Device): IP 30
Temperature ra ge (Device): -5 °C to 40 °C
83200 U-500
8300-0-0218
1
22
1) Additional information about commissioning d operation is contained in the system manual and the
online operating manual of the current e-catalogue.
Cover plates
For indoor audio station with display.
Protection class (Device): IP 30
Temperature range (Device): -5 °C to 40 °C
Busch-Duro 2000
®
SI
2 2 white
83260-2 2-500
8 0-0- 22
1/
22
Reflex SI
214 alpine white
83260-214-500
8300-0-0223
1/18
22
future
®
linear
81 anthracite
83260-81-500
8300-0-0220
1/18
22
83 aluminium silver
83260-83-500
8300-0-0221
1/18
22
i i
8 84
0 19
solo
®
i i
8 2 - - 0
8 0- -
Busch-axcent
®
84 studio white
83260-84-500
8300-0-0219
1/18
22
carat
®
84 studio white
83260-84-500
8300-0-0219
1/18
22
System controller, MDRC
1
)
upply device and controller of the ABB-Welcome system.
For connecting the indoor and outdoor busline.
With output for electrical door opener for 12V~, 1,6A or
potential-free output 30V, 3A.
With output to control hall light directly or via relais (230V,
3A).
Switching time duration of the door opener and the light is
adjustable.
For up to 65 consumer units.
Rated voltage: 230 V~, +10 % / -10 %
Output voltage: 28 V
Rated frequency: 50 Hz/60 Hz
Rated power: 42 W
Protection class (Device): IP 20
Temperature range (Device): -5 °C to 45 °C
Dimensions: (L x W x D): 90 mm x 216 mm x 65 mm
Module width: 12 MW
83300-500
8300-0-0125
1
22
1) Additional information about commissioning a d operation is contained in the system manual and the
online operating manual of the current e-catalogue.
Auxiliary power supply, MDRC
1
)
Additional supply device of the ABB-Welcome system to
increase the number of connectable indoor stations.
For up to 45 consumer units.
Rated voltage: 230 V~, +10 % / -10 %
Output voltage: 28 V
Rated frequency: 50 Hz/60 Hz
Rated power: 28 W
Protection class (Device): IP 20
Temperature range (Device): -5 °C to 45 °C
Dimensions: (L x W x D): 90 mm x 144 mm x 65 mm
Module width: 8 MW
83310-500
8300-0-0126
1
22
1) Additional information about commissioning and peration is contai ed in the ystem manual and the
online operating manual of the current e-catalogue.
Switch actuator, door/light, MDRC
1
)
To control an additional electrical door opener or additional
hall light directly or via potential-free output 230V, 3A.
Assignment to an outdoor station is adjustable.
Switching time adjustable: for door opener 1 sec to 10 sec;
for light outputs 1 sec to 5 min.
Consumer units: 2
Protection class (Device): IP 20
Temperature range (Device): -5 °C to 45 °C
Dimensions: (L x W x D): 90 mm x 72 mm x 65 mm
Module width: 4 MW
83330-500
8300-0-0123
1/10
22
1) Additional information about commissioning and operation is contained in the system manual and the
online operating manual of the current e-catalogue.
Bell transformer, 12 V AC 1.3 A, MDRC
1
)
ower supply for an electric door opener.
4 V~, 1.3 A, 8 VA
8 V~, 1.3 A, 12 VA
12 V~, 1.3 A, 16 VA
Rated voltage: 230 V~
Rated frequency: 50 Hz
Protection class (Device): IP 20
Dimensions: (L x W x D): 90 mm x 36 mm x 65 mm
Module width: 2 MW
83315-500
8300-0-0124
1
22
1) Additional information about commissioning and operation is contained in the system manual and the
online operating manual of the current e-catalogue.
Pack/Qty
Product
Article-No.
Order-No.
Pack/Qty
ABB-Welcome
System Devices
anges
ng the most
, mute) and
ble.
function and
and floor ring-
.
ounted sockets.
1
22
tem manual and the
1/18
22
1/18
22
1/18
22
1/18
22
1/18
22
1/18
22
1/18
22
1/18
22
System controller, MDRC
1
)
Supply device and controller of the ABB-Welcome system.
For connecting the indoor and outdoor busline.
With output for electrical door opener for 12V~, 1,6A or
p tential-fr e output 30V, 3A.
With output to control hall light directly or via relais (230V,
3A).
Switching time duration of the door pener and the light is
adjustable.
For up to 65 consu er units.
Rated voltage: 230 V~, +10 % / -10 %
Output voltage: 28 V
Rated frequency: 50 Hz/60 Hz
Rated power: 42 W
Protection class (Device): IP 20
Temperature range (Device): -5 °C to 45 °C
Dimensions: (L x W x D): 90 mm x 216 mm x 65 mm
Module width: 12 MW
83300-500
8300-0-0125
1
22
1) Additional information about c mmissioning and operation is contained in the system manual and the
online operating manual of the current e-catalogue.
A xiliary power supply, MDRC
1
)
Additional supply device of the ABB-Welcome system to
increase the number of connectable indoor stations.
For up to 45 consumer units.
Rated voltage: 230 V~, +10 % / -10 %
Output voltage: 28 V
Rated frequency: 50 Hz/60 Hz
Rated power: 28 W
Protection class (Device): IP 20
Temperature range (Device): -5 °C to 45 °C
Dimensions: (L x W x D): 90 mm x 144 mm x 65 mm
Module width: 8 MW
83310-500
8300-0-0126
1
22
1) Additional information about commissioning and operation is contained in the system manual and the
online operating manual of the current e-catalogue.
Switch actuator, door/light, MDRC
1
)
To control an additi nal electrical door opener or additional
hall light directly or via potential-free output 230V, 3A.
Assignment to an outdoor station is adjustable.
Switching time adjustable: for door opener 1 sec to 10 sec;
for light outputs 1 sec to 5 min.
Consumer units: 2
Protection class (Device): IP 20
Temperature range (Device): -5 °C to 45 °C
Dimensions: (L x W x D): 90 mm x 72 mm x 65 mm
Module width: 4 MW
83330-500
8300-0-0123
1/10
22
1) Additional information about commissioning and operation is contained in the system manual and the
online operating manual of the current e-catalogue.
Bell transformer, 12 V AC 1.3 A, MDRC
1
)
Pack/Qty
Product
Article-No.
Order-No.
Pack/Qty
ABB-Welcome
System Devices
anges
ng the most
, mute) and
ble.
function and
and floor ring-
.
ounted sockets.
1
22
tem manual and the
1/18
22
1/18
22
1/18
22
1/18
22
1/18
22
1/18
22
1/18
22
1/18
22
Syst m controller, MDRC
1
)
upply device and contr ller of the ABB-Welcome system.
For conn cting the indoor and outdoor busline.
With output for el ctrical door opener for 12V~, 1,6A or
po ntial-free output 30V, 3A.
With output to ntrol hall light directly r via relais (230V,
3A).
Switching time duration of the door opener and the light is
adjustable.
For up to 65 co sumer units.
Rated v ltage: 230 V~, +1 % / -10 %
Outp t voltage: 8 V
Rated frequency: 50 Hz/60 Hz
Rated power: 42 W
Protection class (Device): IP 20
Temperature range (Device): 5 °C to 45 °C
Dimensions: (L x W x D): 90 mm x 216 mm x 65 mm
Module width: 12 MW
83300 500
8300-0-0125
1
22
1) Additional information about commissioning and operation is contained in the system manual and he
online operating manual of the current e-catalogue.
Auxiliary power supply, MDRC
1
)
Additional supply device of the ABB-Welcome system to
increase the numb r of connectable indoor stations.
For up to 45 co sum r units.
Rat d v ltage: 230 V~, +1 % / -10 %
Outp t voltage: 28 V
Rated frequency: 50 Hz/60 Hz
Rated power: 28 W
Protection class (Device): IP 20
Temperature range (Device): -5 °C to 45 °C
Dimensions: (L x W x D): 90 mm x 144 mm x 65 mm
Module width: 8 MW
83310-500
8300-0-0126
1
22
1) Additional information about commissioning and operation is contained in the system manual and the
online operating manual of the current e-catalogue.
Switch act a or, door/light, MDRC
1
)
To con r l an additional electrical door opener or additional
hall light di ctly or via potential-free output 230V, 3A.
Assignment to an outdoor station is adjustable.
Switching time adjustable: for door opener 1 sec to 10 sec;
for light outputs 1 sec to 5 min.
Consumer units: 2
Protection class (Device): IP 20
Temperature range (Device): -5 °C to 45 °C
Dimensions: (L x W xD): 90 mm x 72 mm x 65 mm
Module width: 4 MW
83330-500
8300-0-0123
1/10
22
Pack/Qty
Product
Article-No.
Order-No.
Pack/Qty
ABB-Welcome
System Devic s
anges
ng the most
, mute) and
ble.
function and
and floor ring-
.
ounted sockets.
tem manual and the
1/18
22
1/18
22
1/18
22
1/18
22
1/18
22
System controller, MDRC
1
)
Supply device and controller of the ABB-Welcome system.
For connecting the indoor and outdoor busline.
With output for electrical door opener for 12V~, 1,6A or
potential-free output 30V, 3A.
With output to control hall light directly or via relais (230V,
3A).
Switching time duration of th door opener and the light is
adjustable.
For up to 65 consumer units.
Rated voltage: 230 V~, + 0 % / -10 %
Output voltage: 28 V
Rated frequency: 50 Hz/60 Hz
Rated power: 42 W
Protection class (Device): IP 20
Tempera ure r n (Device): -5 °C to 45 °C
Dimensions: (L x W x D): 9 mm x 216 mm x 65 mm
Module width: 12 MW
83300-500
8300-0-0125
1
22
1) Additional information about commissionin and operation is contained in the system manual and the
online operating manual of the current e-catalogue.
Auxiliary power supply, MDRC
1
)
Additional supply device of the ABB-Welcome system to
increase the number of connectable indoor stations.
For up to 45 consumer units.
Rated voltage: 230 V~, +10 % / -10 %
Output voltage: 28 V
Rated frequency: 50 Hz/60 Hz
Rated power: 28 W
Protection class (Device): IP 20
Temperature r ng (Device): -5 °C to 45 °C
Dimensions: (L x W x D): 90 mm x 144 mm x 65 mm
Module width: 8 MW
83310-500
8300-0-0126
1
22
1) Additional information about commissioning and op rati n is co tained in the system manual and the
online operating manual of the current e-catalogue.
Switch actuator, door/light, MDRC
1
)
To control an additional electrical door opener or additional
hall light directly or via potential-free output 230V, 3A.
Assignment to an outdoor station is adjustable.
Switching time adjustable: for door opener 1 sec to 10 sec;
for light outputs 1 sec to 5 min.
