UNDERFLOOR TO DESK SOLUTIONS
Email

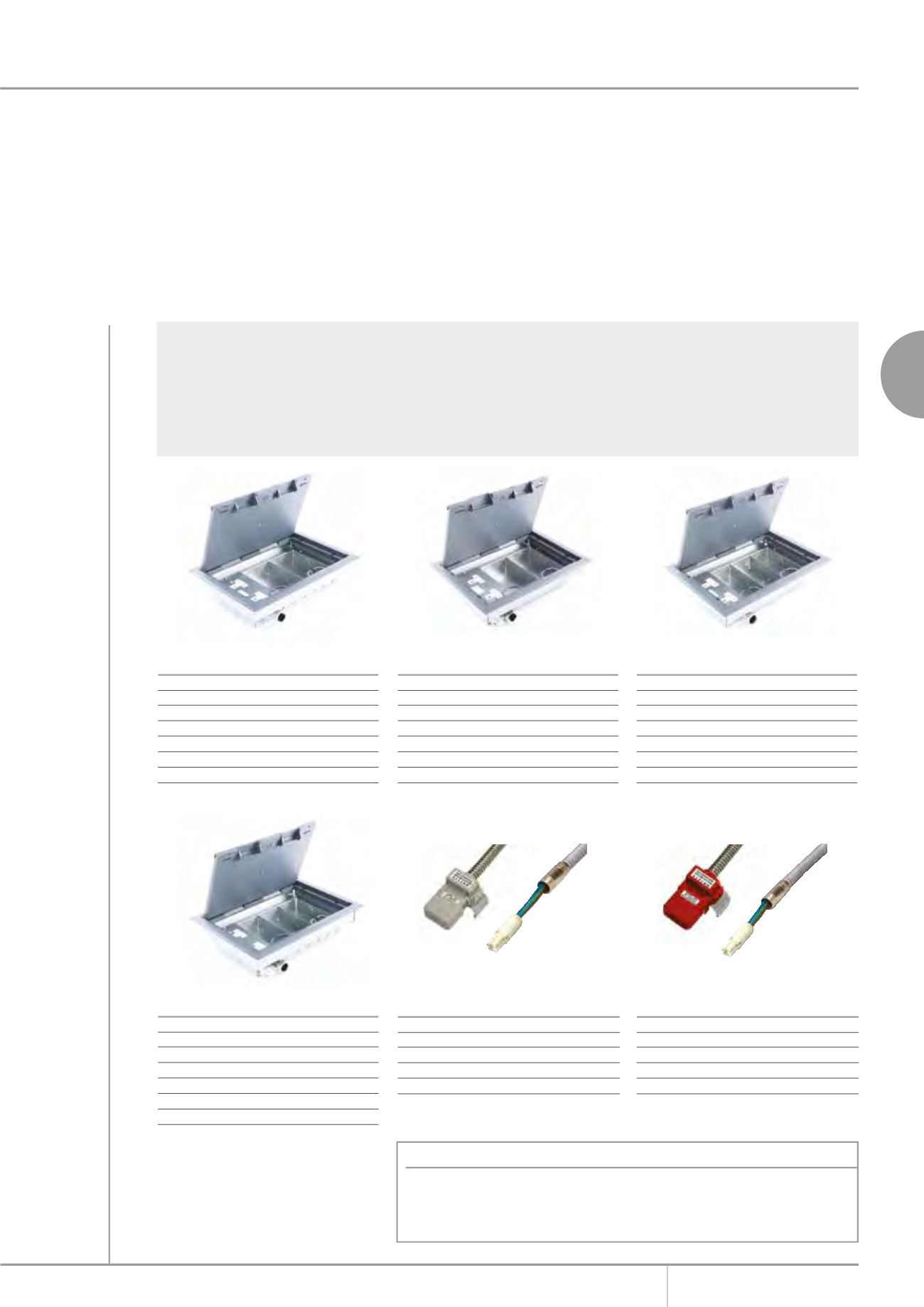

Underfloor to desk solutions Raised floor boxes and grommets | 85
Raised Floor Boxes
• Standard depth 83mm
• Supplied with dividers to create 3 or 4 compartment box
• Two earth fixing points for flexible positioning of sockets
• 3mm thick medium load plate
• Steel sub-frame option for heavy traffic and fine adjustment to
allow for uneven flooring
• Supplied with two snap-in cable retainers/guides
• Grey trim as standard
• Cut-out within lid for carpet or carpet tiles up to 6mm
• Reversible lid
• Supplied with metal screws to attach trim to box for a secure fix
• Fixings are pre-punched for quick and easy installation
• Barrel lock option available for extra security
• RCD option
• Self closing lid for extra safety and security
• Pre-wired option available with MT32 Connectors
• Heavy duty steel galvanized conduit
(BS EN 61386-23:2004+A11:2010)
Product information
Other options
• Steel lid & trim option for even greater strength and durability
• Lid available separately
• Replacement cable flap available separately
• Replacement screw pack available separately
4 compartment standard floor box
(terminal) 357 x 257 x 83mm
code description pack
UM5010 1 x 2 gang Std 1
UM5020 2 x 2 gang Std 1
UM5030 3 x 2 gang Std 1
UM5110 1 x 2 gang CE 1
UM5120 2 x 2 gang CE 1
UM5130 3 x 2 gang CE 1
3 Compartment standard floor box
(through) 357 x 257 x 83mm
code description pack
UM5210 1 x 2 gang Std 1
UM5220 2 x 2 gang Std 1
UM5230 3 x 2 gang Std 1
UM5211 1 x 2 gang CE 1
UM5221 2 x 2 gang CE 1
UM5231 3 x 2 gang CE 1
3 compartment standard floor box
(terminal) 357 x 257 x 83mm
code description pack
UM1010 1 x 2 gang Std 1
UM1020 2 x 2 gang Std 1
UM1030 3 x 2 gang Std 1
UM1110 1 x 2 gang CE 1
UM1120 2 x 2 gang CE 1
UM1130 3 x 2 gang CE 1
4 Compartment standard floor box
(through) 357 x 257 x 83mm
code description pack
UM5610 1 x 2 gang Std 1
UM5620 2 x 2 gang Std 1
UM5630 3 x 2 gang Std 1
UM5611 1 x 2 gang CE 1
UM5621 2 x 2 gang CE 1
UM5631 3 x 2 gang CE 1
Tap-off (Standard)
• To MT32 connector
code length rating pack
UN8113 3m 32Amp unfused 1
UN8115 5m 32Amp unfused 1
UN8123 3m 13Amp fused 1
UN8125 5m 13Amp fused 1
Tap-off (Clean Earth)
• To MT32 connector
code length rating pack
UN8213 3m 32Amp unfused 1
UN8215 5m 32Amp unfused 1
UN8223 3m 13Amp fused 1
UN8225 5m 13Amp fused 1
MT32 Connectors
The description ‘male’ (white) and ‘female’ (black) does not refer to the connector pins
but describes and identifies the moulded connector housings. For further information
please contact our Technical Team on +44 (0)1424 856688.
