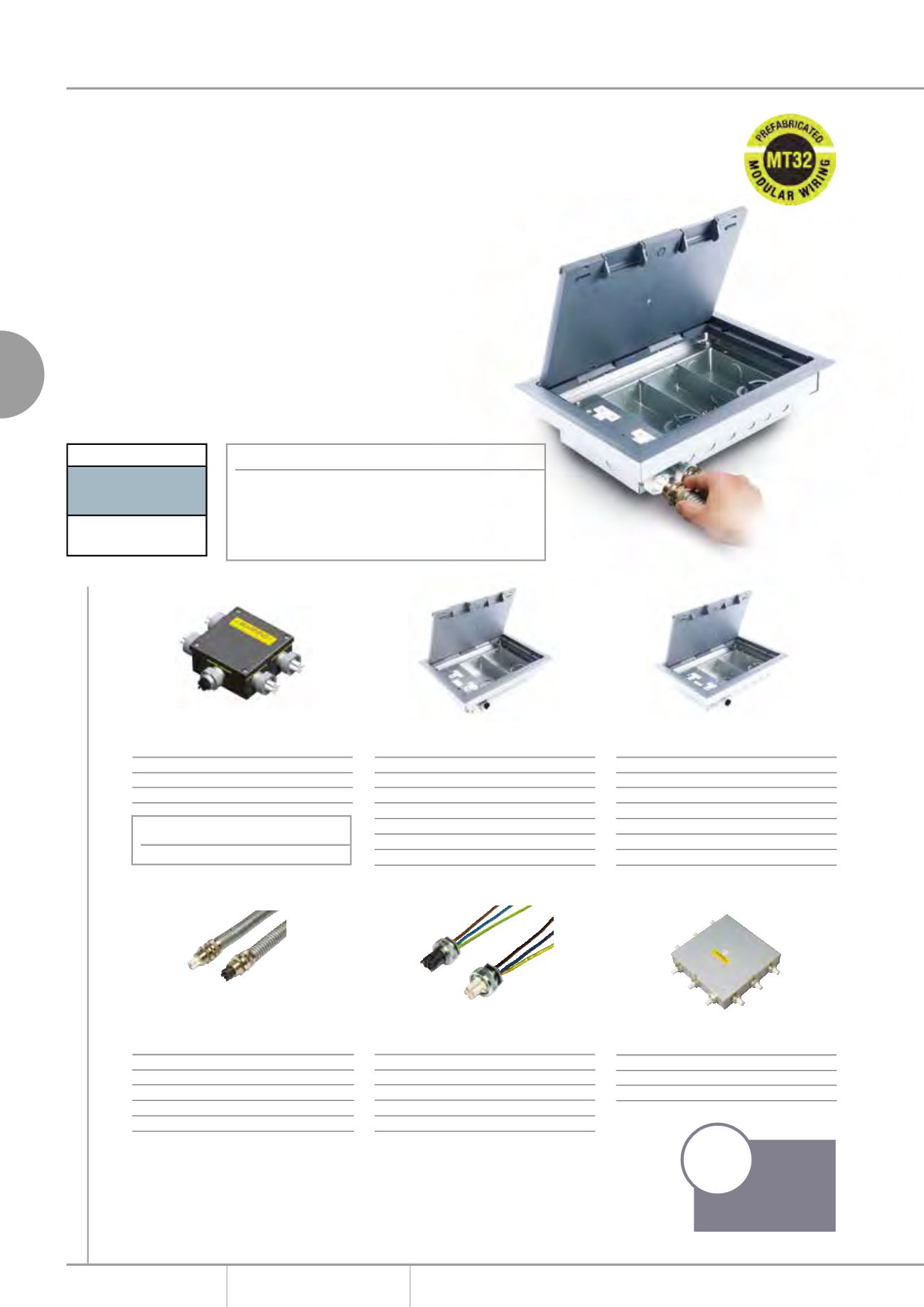

MT32 pre-wired underfloor distribution
MT32 pre-wired underfloor distribution is a prefabricated wiring system that incorporates
32Amp plug and play connector technology. The system provides a range of pre-wired,
pre-tested products which can be used alone or in conjunction with powertrack, desk
modules and other pre-wired systems to accommodate various underfloor layout options.
Product information
•
Distribution from powertrack supply
•
32Amp power distribution
•
Standard and CE systems
•
Greater scope in layout design
•
Wider range of floor distribution
•
Economical and practical for large or high density floor areas
•
Designs, dimensions and cable capacities to meet the latest BS EN ISO standards
and accommodate all building designs and construction parameters
•
Accessory plates manufactured from galvanised steel to match floor boxes
Plate dimensions
•
3 compartment 185 x 95mm
•
4 compartment 185 x 71mm
Slave unit (SU)
32Amp rating
100 x 100 x 55mm
code
description
pack
UM6100
4 way Std
1
UM6101
4 way CE
1
Components
Floor box – through 3 compartment
357 x 257 x 83mm
code
description
pack
UM5210
1 x 2 gang Std
1
UM5220
2 x 2 gang Std
1
UM5230
3 x 2 gang Std
1
UM5211
1 x 2 gang CE
1
UM5221
2 x 2 gang CE
1
UM5231
3 x 2 gang CE
1
Floor box – terminal 3 compartment
357 x 257 x 83mm
code
description
pack
UM1010
1 x 2 gang Std
1
UM1020
2 x 2 gang Std
1
UM1030
3 x 2 gang Std
1
UM1110
1 x 2 gang CE
1
UM1120
2 x 2 gang CE
1
UM1130
3 x 2 gang CE
1
MT32 Four compartment floor boxes
Terminal: Refer to page 85
Interconnecting conduit assembly
To MDU, SU, FBDU and floor boxes
code
length
description pack
UC3353
3m
Std
1
UC3355
5m
Std
1
UC4453
3m
CE
1
UC4455
5m
CE
1
*Male & female adaptors 220mm tail
- fits 20mm knockout
code
description
pack
UA7234
3 pole (male)
1
UA7244
4 pole (male)
1
UA7134
3 pole (female)
1
UA7144
4 pole (female)
1
*For adapting additional equipment and floor
boxes to modular system.
Master distribution unit (MDU) 32Amp
rating 260 x 260 x 55mm
code
description
pack
UM6200
9 way Std
1
UM6201
9 way CE
1
Standard finish
GY
GY
: Grey
RAL7011 (floor box trim)
MT32 Connectors
The description ‘male’ (white) and ‘female’ (black) does not
refer to the connector pins but describes and identifies the
moulded connector housing. For further information please
contact our Technical Team on +44 (0)1424 856688.
