Underfloor to desk solutions
80 |

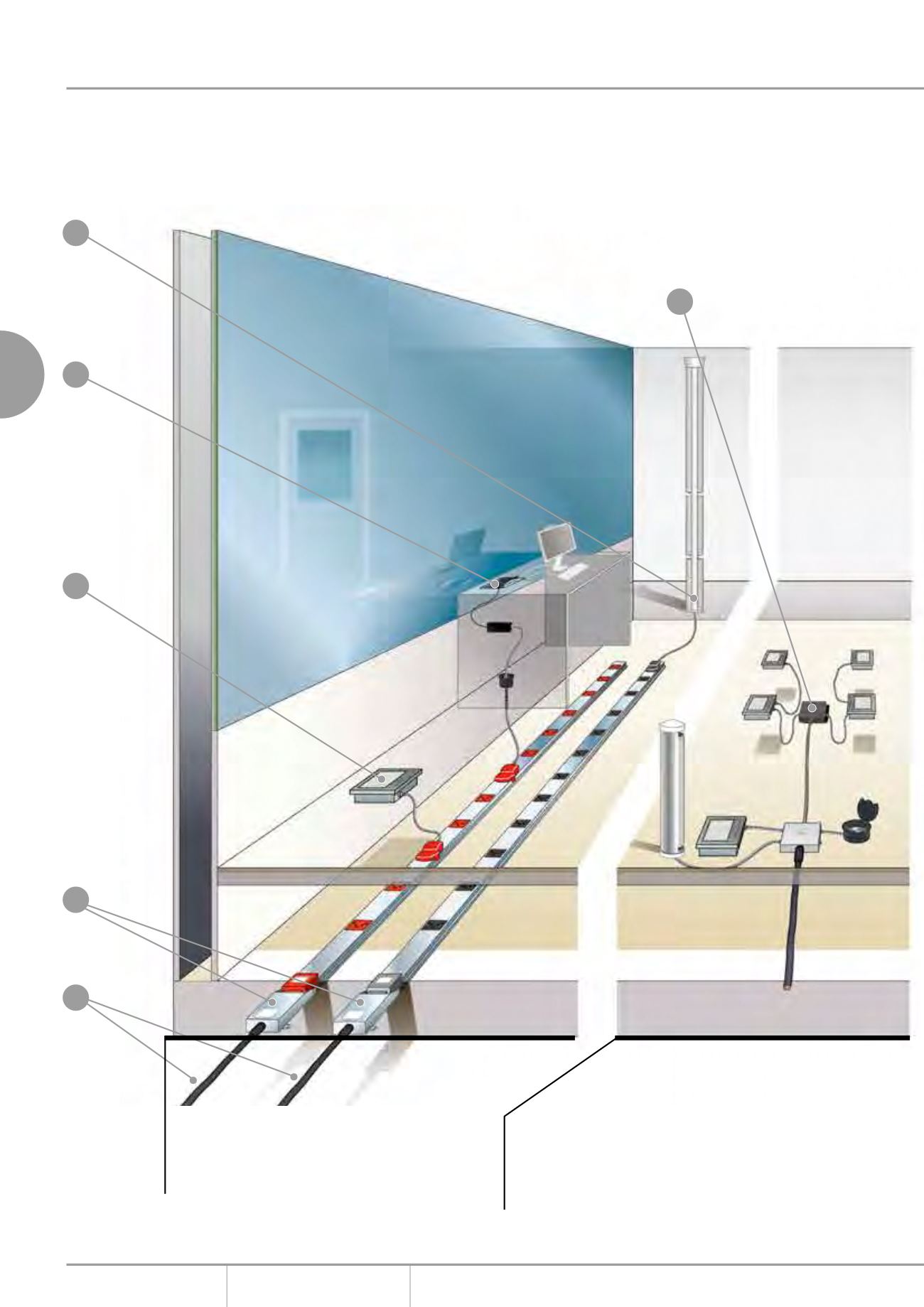

Pre-wired underfloor layouts
A selection of design layouts incorporating MT32 pre-wired technology and powertrack.
AREA 1
Using traditional powertrack and hard-wired floor boxes
•
Standard and Clean Earth (CE) Powertrack
•
63Amp rating
AREA 2 – MT32 PRE-WIRED AND RECONFIGURABLE
INTERCONNECTING SYSTEMS
Using MT32 Slave Unit (SU)
•
Radial or daisy chain options for Standard and CE Systems
•
32Amp rating
Steel Wire
Armoured
cable
(SWA)
Standard
or CE supply
to 3 and 4
compartment
floor box.
Power to desk
unit fed by
tap-off from
powertrack
through floor
grommet and via
RCBO module.
Tap-off from
floor system to
powerpost/pole.
MT32 Slave Unit (SU) - a 4-way
underfloor distribution unit fed from
an MT32 Slave Unit (SU) and providing
power to two MT32 floor boxes. Two
further boxes are daisychained.
Feed unit
