Underfloor to desk solutions
Pre-wired underfloor layouts
| 81
AREA 3 – MT32 PRE-WIRED AND RECONFIGURABLE
INTERCONNECTING SYSTEMS
Using MT32 Slave Unit (SU)
•
Radial or daisy chain options for Standard and CE Systems
•
32Amp rating
AREA 4 – A COMBINATION OF POWERTRACK AND MT32
Using 63Amp Standard or CE Powertrack with the
MT32 32Amp Underfloor Distribution system.
•
A combination that permits greater floor coverage
•
32Amp rating

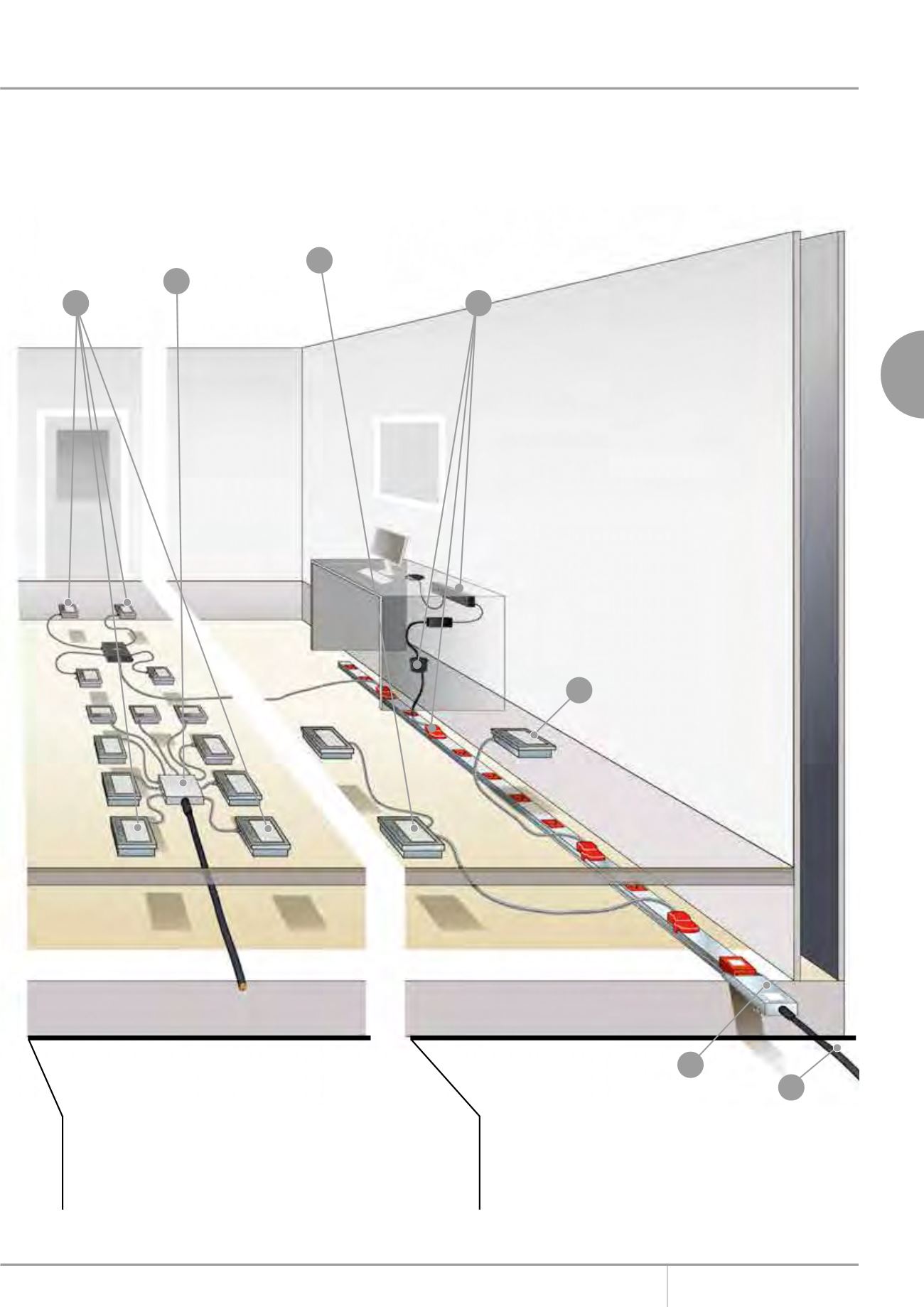

Master distribution unit
(MDU) feeding 9 floor
boxes.
MT32
Through box.
Tap-off from powertrack gives
direct feed through a floor
grommet via a RCBO to a
power and data module.
MT32 Through
and terminal
boxes servicing
independent
zones.
MT32
Terminal Box
SWA
Feed unit
