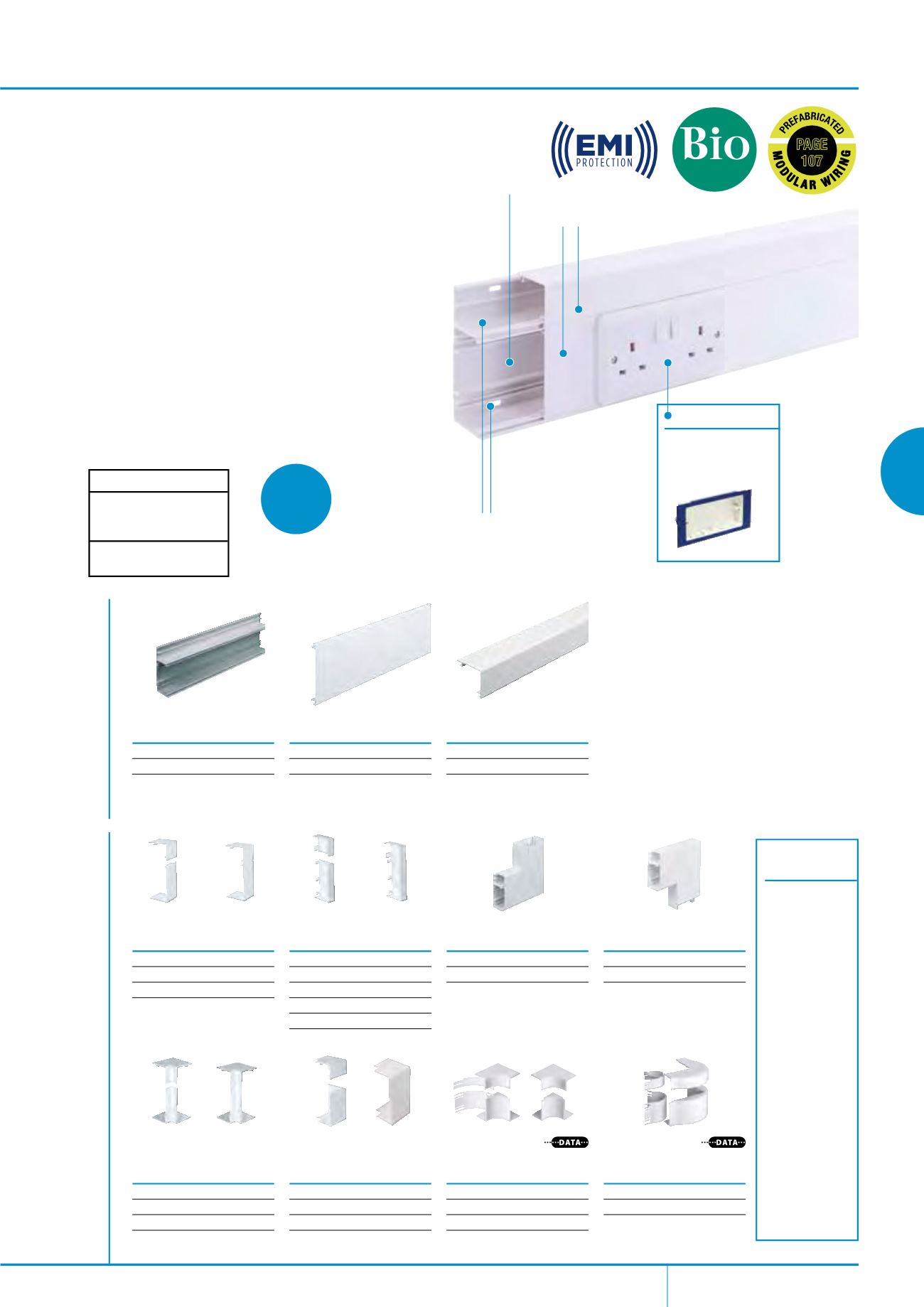

PVC-U perimeter trunking systems
PVC-U PERIMETER TRUNKING SYSTEMS
Compact 2 is a small, fully segregated two compartment
trunking system with a square top profile. This trunking
is suited to fit within areas where physical outside
dimensions are important, for example, to negotiate
above or below radiators and window sills.
Product information
• 130 x 50mm
• 2 full size compartments
• For dado and skirting installation
• Note: where Compact 2 is ftted at skirting level, it is
recommended that the larger compartment is installed uppermost.
• Can be subdivided
Compact 2 trunking | 119
Data information
• Standard bend radius 25mm
• Data fttings available for bend radius up to 50mm
• Compact 1 and 2 small compartment can be screened against
EMI with no reduction in cable capacity
• Adjustable data box 32-40mm
• Screened divider and data boxes
• Steel divider available
Basic components
Fittings
Dividing fllet option for
large compartment
Separate access to
each compartment
Compact 2
Couplers
code description pack
ECC2WH 2 piece 5
ECHC2WH 1 piece 5
Compact 2
End caps LH & RH
code description pack
EECC2LHWH 2 piece 5
EECC2RHWH 2 piece 5
EECHC2LHWH 1 piece 5
EECHC2RHWH 1 piece 5
Compact 2
Flat angle – upward
code pack
EFAC2UWH 1
Compact 2
Flat angle – downward
code pack
EFAC2DWH 1
Part M
For box assemblies that
meet the requirements
of Part M (DDA) please
refer to page 106. Standard colour
WH
WH: White
Two separate covers
Compact 2
flat tees
Compact 2 flat
tees are handed
to the left or to
the right side.
For the product
you require,
please order the
following:
Left upward
= EFTC2ULWH
Left downward
= EFTC2DLWH
Right upward
= EFTC2URWH
Right downward
= EFTC2DRWH
For further
advice please
call the Technical
Team on +44
(0)1424 856688.
Base unit
code pack
ETB2WH 4 x 3m
Main compartment cover
code pack
ETL1WH 8 x 3m
Square cover
code pack
ETSC1WH 8 x 3m
Compact 2
External bend
code description pack
EL0BCD2WH assemblies 1
Compact 2
Internal bend
code description pack
EIBC2WH 2 piece 5
EIBHC2WH 1 piece 5
Compact 2
External bend
code description pack
EXBC2WH 2 piece 5
EXBHC2WH 1 piece 5
Compact 2 Internal bend
assembly and cover only
code description pack
ELIBCD2WH assemblies 1
EIBCD2WH covers only 1
PAGE
107
antimicrobial trunking
‘Biooption’available
tospecialorder
See
page 123
for quick
reference
chart
