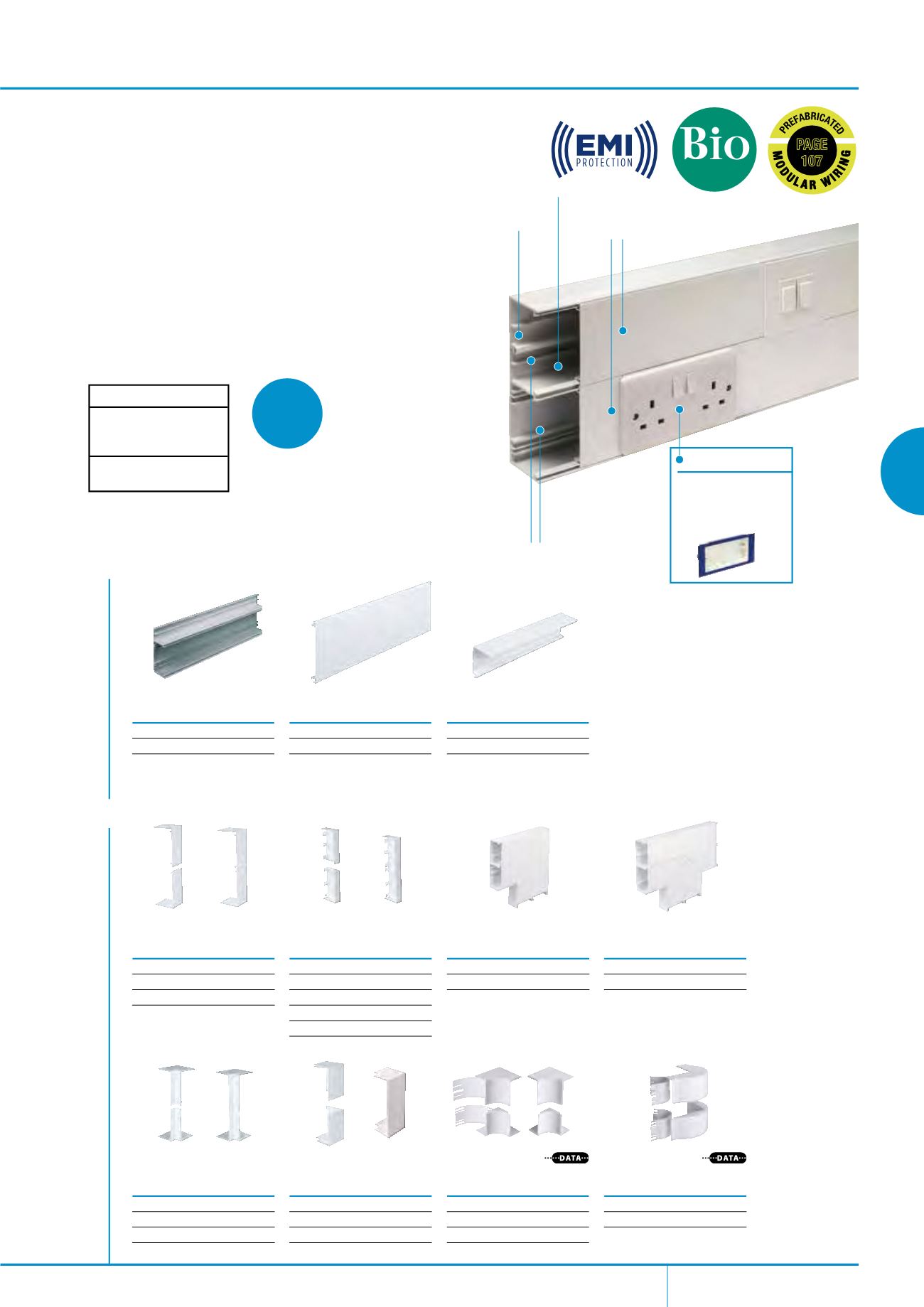

PVC-U perimeter trunking systems
PVC-U PERIMETER TRUNKING SYSTEMS
www.marshall-tufflex.comCompact 3 trunking
| 121
Compact 3 is a fully segregated trunking system with two
main compartments suited for installations requiring
larger cable capacity.
Product information
•
181 x 50mm
•
2 full size covers
•
For dado and skirting installation
•
Can be subdivided
Data information
•
Standard bend radius 25mm
•
Data fttings available for bend radius up to 50mm
•
Adjustable data box 32-40mm
•
Screened divider and data boxes
•
Steel divider available
Basic components
Fittings
Dividing fllet option
Separate access to
each compartment
Compact 3
Coupler
code
description pack
ECC3WH
2 piece
5
ECHC3WH
1 piece
5
Compact 3
Flat angle – up/down
code
pack
EFAC3WH
1
Compact 3
Flat tee – up/down
code
pack
EFTC3WH
1
Compact 3
End caps LH & RH
code
description pack
EECC3LHWH
2 piece
5
EECC3RHWH
2 piece
5
EECHC3LHWH
1 piece
5
EECHC3RHWH
1 piece
5
Part M
For box assemblies that
meet the requirements
of Part M (DDA) please
refer to page 106.
Standard colour
WH
WH
: White
Two separate covers
Base extension
Base unit
code
pack
ETB2WH
4 x 3m
Base extension
code
pack
EBE1
4 x 3m
Main compartment cover
code
pack
ETL1WH
8 x 3m
Compact 3
Internal bend
code
description pack
EIBC3WH
2 piece
5
EIBHC3WH
1 piece
5
Compact 3
External bend
code
description pack
EXBC3WH
2 piece
5
EXBHC3WH
1 piece
5
Compact 3
External bend assembly
code
description pack
EL0BCD3WH
assemblies
1
Compact 3 Internal bend
assembly and cover only
code
description pack
ELIBCD3WH
assemblies
1
EIBCD3WH
covers only
1
antimicrobial trunking
PAGE
107
‘Biooption’available
tospecialorder
See
page 123
for quick
reference
chart
