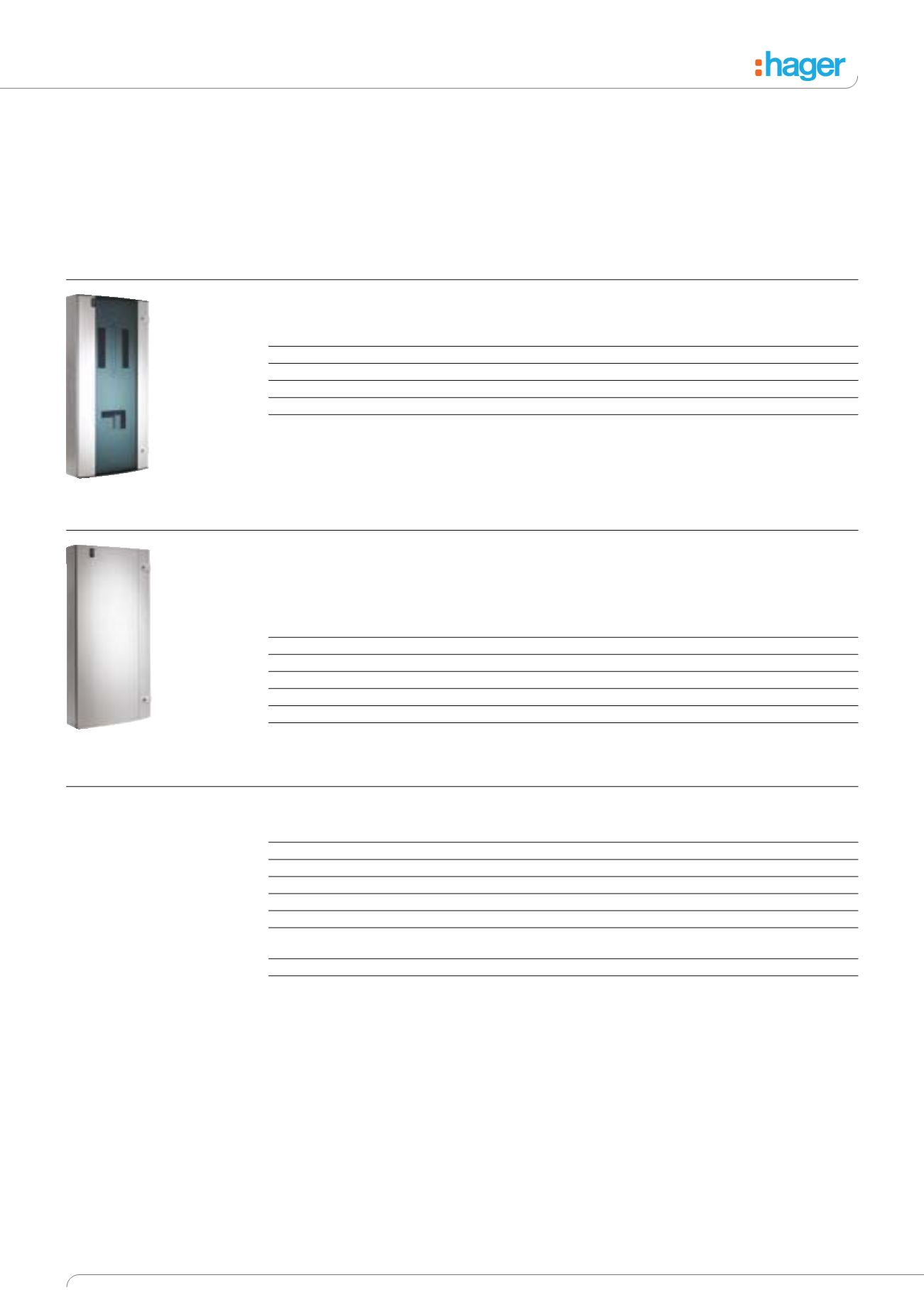

General Catalogue • Commercial Distribution
Invicta 3 Type B Distribution Boards
250A Incoming 63A Outgoing
Invicta 3 (250A Incoming 63A Outgoing)
Description
Cat ref.
Cat ref.
Plain door
Glazed door
8 Triple Pole Ways
JK208B
JK208BG
12 Triple Pole Ways
JK212B
JK212BG
16 Triple Pole Ways
JK216B
JK216BG
18 Triple Pole Ways
JK218B
JK218BG
24 Triple Pole Ways
JK224B
JK224BG
Invicta 3 Amendment 3 Compliant (250A Incoming 63A Outgoing)
Full metal cover & door to comply with BS EN 61439-3 including annex ZB.
Description
Cat ref.
8 Triple Pole Ways
JK208BA3
12 Triple Pole Ways
JK212BA3
16 Triple Pole Ways
JK216BA3
18 Triple Pole Ways
JK218BA3
24 Triple Pole Ways
JK224BA3
16 Module DIN Rail Box
JK216EA3
16 Module DIN Rail Box
JK232EA3
250A Incomer Kits (
note: these incomer kits will only fit the 250A board(s)
Description
Cat ref.
3 Pole 250A MCCB Incomer Kit (fits within distribution board)
JK22503M
4 Pole 250A MCCB Incomer Kit (fits within distribution board)
JK22504M
3 Pole 250A Switch Disconnector Incomer Kit (fits within distribution board)
JK22503S
4 Pole 250A Switch Disconnector Incomer Kit (fits within distribution board)
JK22504MCS
4 Pole 250A Direct Connection Kit (fits within distribution board)
JK22504D
4 Pole 160A Contactor Incomer Kit includes Switch Disconnector
JK21604C
1
(fits below distribution board, 450mm high) 1
3 Pole 125A MCCB Incomer Kit (fits within distribution board)
JK21253M
4 Pole 125A MCCB Incomer Kit (fits within distribution board)
JK21254M
¹ A 450mm space is required below the board for fitting, see page 3.41 for dimensions
Invicta 3 250A TP&N Distribution Boards
Surface mounted steel
enclosures.
Enclosure degree of protection:
IP3X
Enclosures are available with
plain or glazed doors.
Fully shrouded copper busbar,
rated 25kA short circuit
conditional current.
Supplied without incoming
and outgoing devices. A Hager
incoming kit must be used.
Complies with BS EN 61439-3
Annex ZB.
For dimensions see page 3.41.
For a full list of protection
devices see section 4 of this
catalogue (Protection Devices).
JK208BG
JK216BA3
