General Catalogue • Commercial Distribution

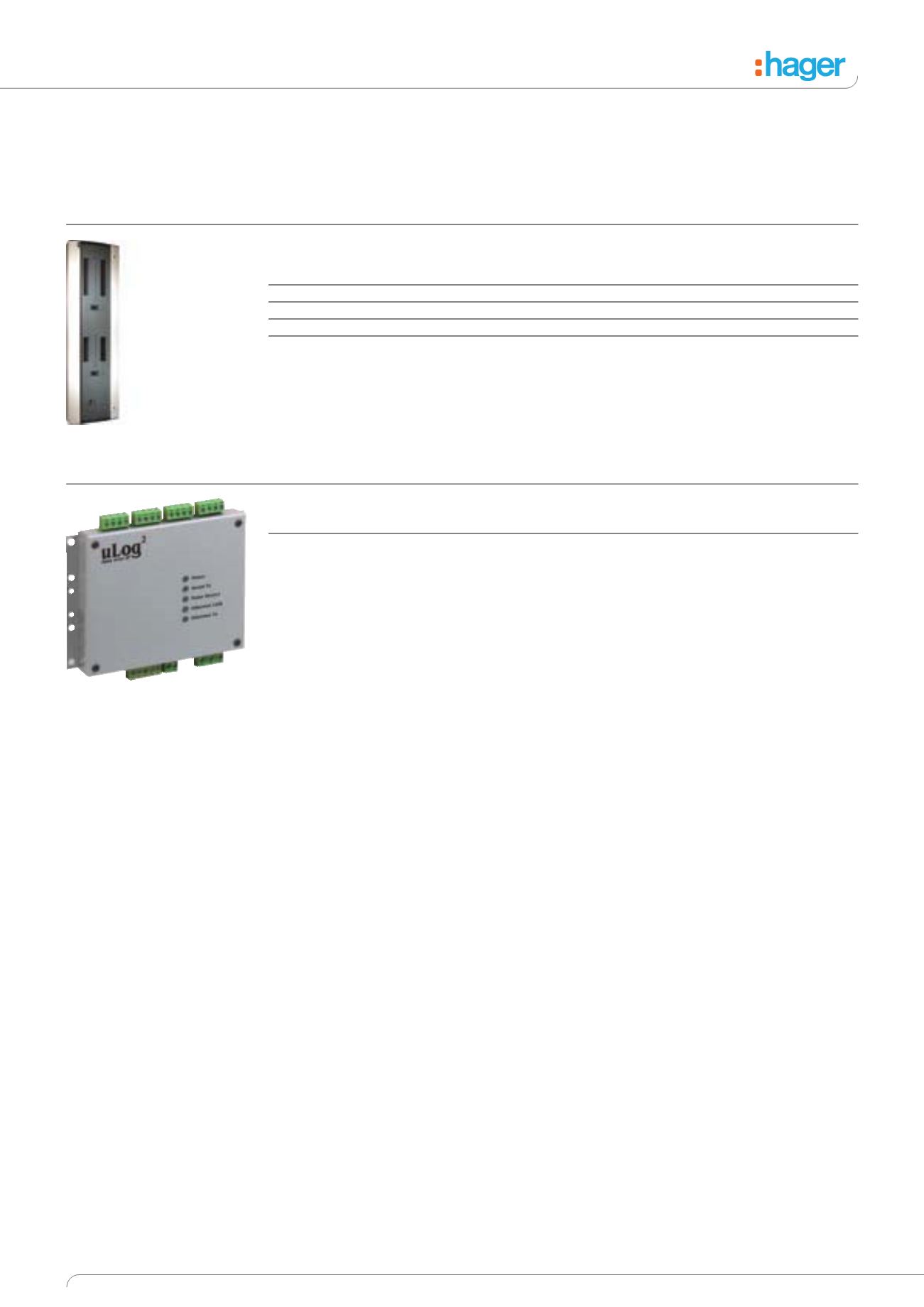

Invicta 3 Type B Distribution Boards
125A Dual Metered Boards & Data Logger
125A Dual Metered Boards
Description
Cat ref.
Cat ref.
Pulsed
Modbus
Composite Split Lighting / Power Metered Board 4 / 6
JKD146B
JKD146BM
Composite Split Lighting / Power Metered Board 6 / 8
JKD168B
JKD168BM
Composite Split Lighting / Power Metered Board 4 / 16
JKD1416B
JKD1416BM
Composite Split Lighting / Power Metered Board 8 / 12
JKD1812B
JKD1812BM
Data Logger
Description
Cat ref.
ULog allows collection of data from up to 8 pulsed output meters
JK107DL
allowing data to be analysed by a remote PC (.csv file output into
spreadsheets / database).
• Instant access and data logging plus 1 temperature input.
• Up to 8 pulsed inputs (CP1 - CP8).
• Transfer data via Ethernet, RS232/485.
• Logs up to 100 days of data from every 1 to 60 second intervals.
• DIN or direct fixing.
• 2 part terminals for easy conneciton.
• Works seamslessly on an Intranet with a fixed IP address.
The lighting and power meter
board is a compact solution to
meet the demands of energy
metering within non-dwelling
buildings.
The metered boards are
supplied with meters that offer a
pulsed or modbus output.
Cable size
50mm
2
The board is provided with the
125A incomer pre-fitted helping
to save on installation time.
For metered board dimensions
see page 3.45.
JKD1812B
JK107DL
