General Catalogue • Commercial Distribution
Invicta 3 Type B Distribution Boards
125A & 250A Side DIN Boxes

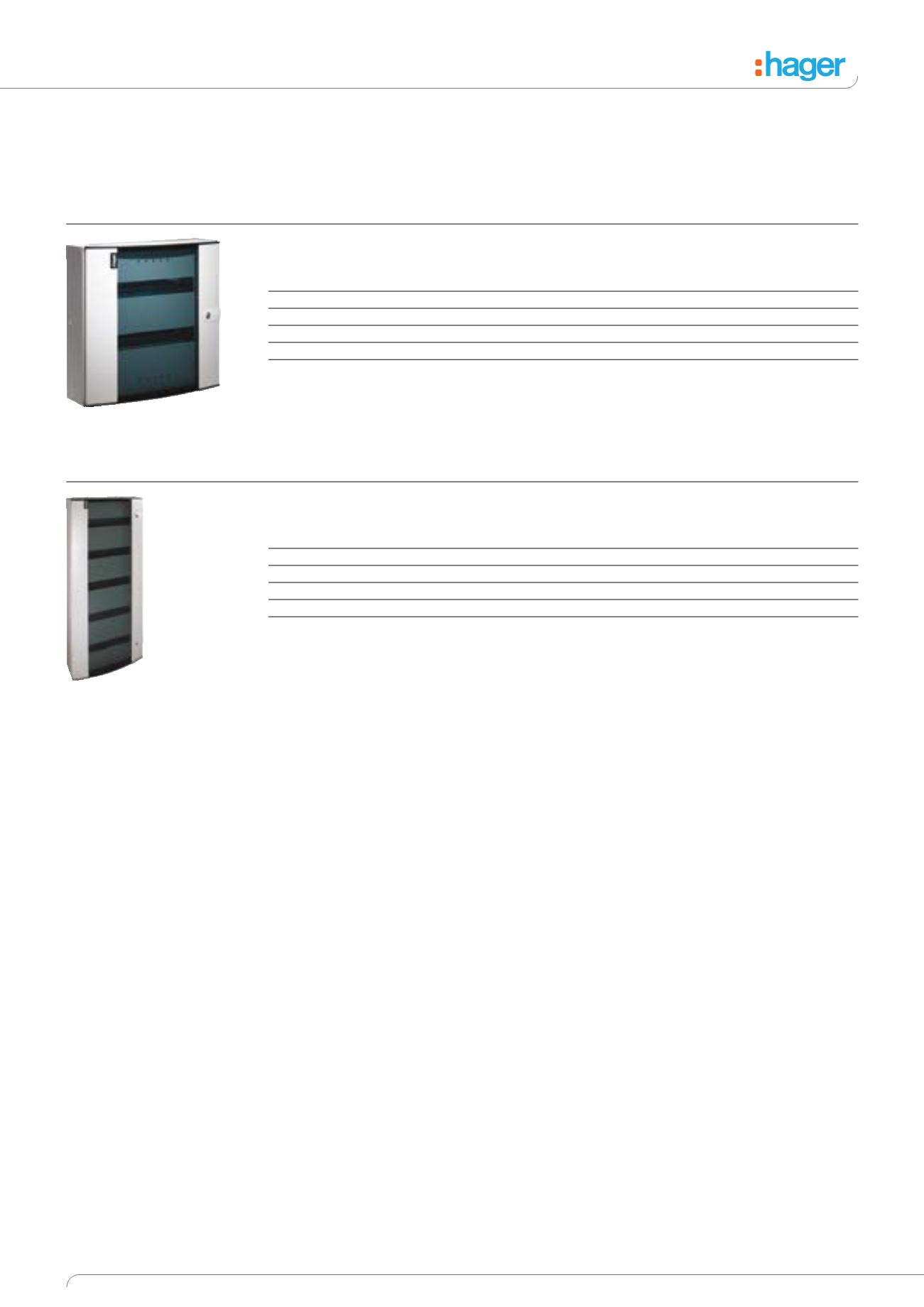

Side DIN Boxes for 125A Primary Boards
Description
Number
Number of DIN
Cat ref.
of Rows
Module Ways
Glazed door
32 Way Side DIN Box for JK104B
2
32
JK104BDFG
32 Way Side DIN Box for JK106B
2
32
JK106BDFG
48 Way Side DIN Box for JK108B
3
48
JK108BDFG
64 Way Side DIN Box for JK112B
4
64
JK112BDFG
80 Way Side DIN Box for JK116B
5
80
JK116BDFG
Side DIN Boxes for 250A Primary Boards
Description
Number
Number of DIN
Cat ref.
of Rows
Module Ways
Glazed door
80 Way Side DIN Box for JK208B
5
80
JK208BDFG
80 Way Side DIN Box for JK212B
5
80
JK212BDFG
96 Way Side DIN Box for JK216B
6
96
JK216BDFG
112 Way Side DIN Box for JK218B
7
112
JK218BDFG
128 Way Side DIN Box for JK224B
8
128
JK224BDFG
Side extension boxes provide
a new concept for distribution
boards to allow DIN rail mounted
modular devices.
Complies with BS EN 62208.
They can be horizontally or
vertically attached to distribution
boards.
* All Side DIN Boxes supplied
with 2x removable gland plates.
For dimensions see page 3.41.
JK104BDFG
JK208BDFG
