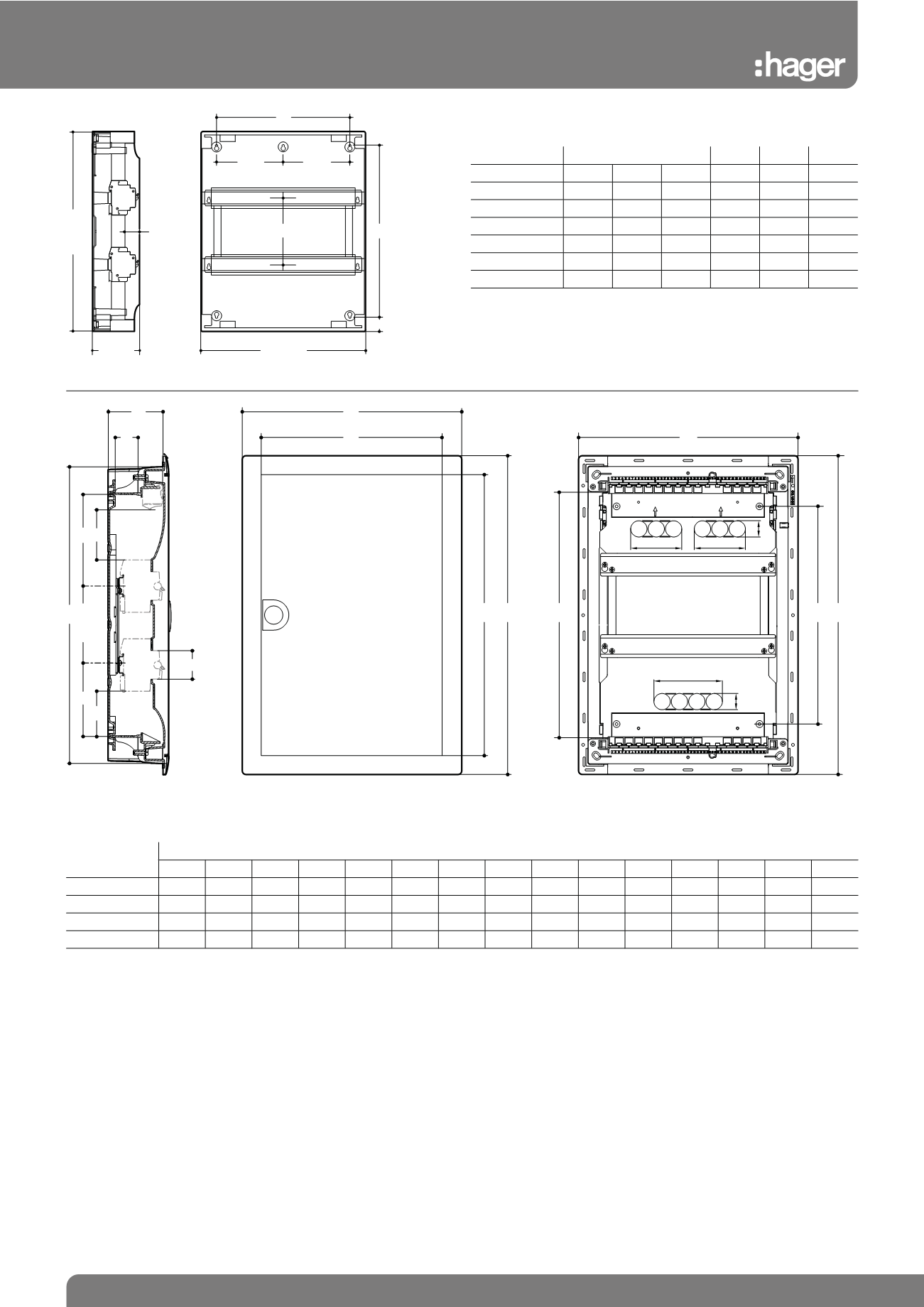

General Catalogue • Enclosures • Technical
Dimensions
Vega & Volta II
Volta II Enclosures
Dimensions (mm)
A B C D E F
G H L
M N O P Q R
VU12EP
348 288 296.5 356.5 335 185 224 330 321 130 104 56 64 89 40
VU24EP
348 288 445.5 505.5 484 334 373 330 470 144 114 66 79 89 40
VU36EP
348 288 570.5 630.5 609 459 498 330 595 144 114 66 79 89 40
VU48EP
348 288 695.5 755.5 734 584 623 330 720 144 114 66 79 89 40
Vega Enclosures
Dimensions (mm)
Width Height Depth A B C
VB18B
370 300 145 300 236 32
VB18R
370 300 145 300 236 32
VB36B
370 450 145 300 386 32
VB36R
370 450 145 300 386 32
VB54B
370 600 145 300 536 32
VB54R
370 600 145 300 536 32
Ø25
78
78
Ø25
104,5
top
A
B
C
D
H
G
EF
Q
125 mm
L
N
M
46
R
O
P
Depth
Width
Height
A
B
C
150
150
25
