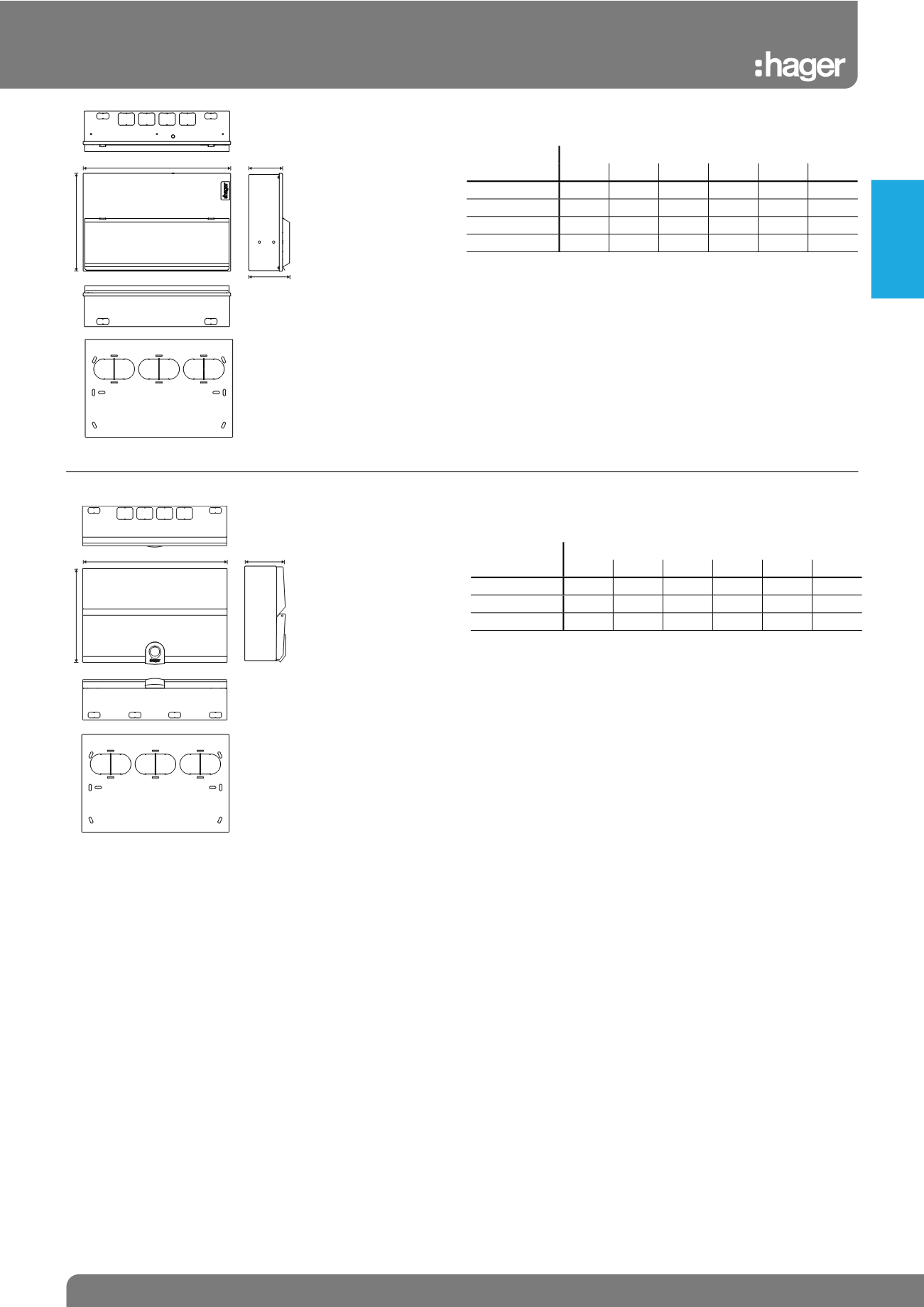

DIN Rail Enclosure Dimensions
Design 10
Dimensions
(mm)
Enclosure Size
2
3
4
5
6
7
A
147 219 290 362 398 470
B
240 240 240 240 240 240
C
83
83
83
83
83
83
D
100 100 100 100 100 100
Design 30
Dimensions
(mm)
Enclosure Size
2
3
4
5
6
7
A
168 220 290 360 400 480
B
240 240 240 240 240 240
C
102 102 102 102 102 102
B
A
D
C
B
A
C
Enclosures
