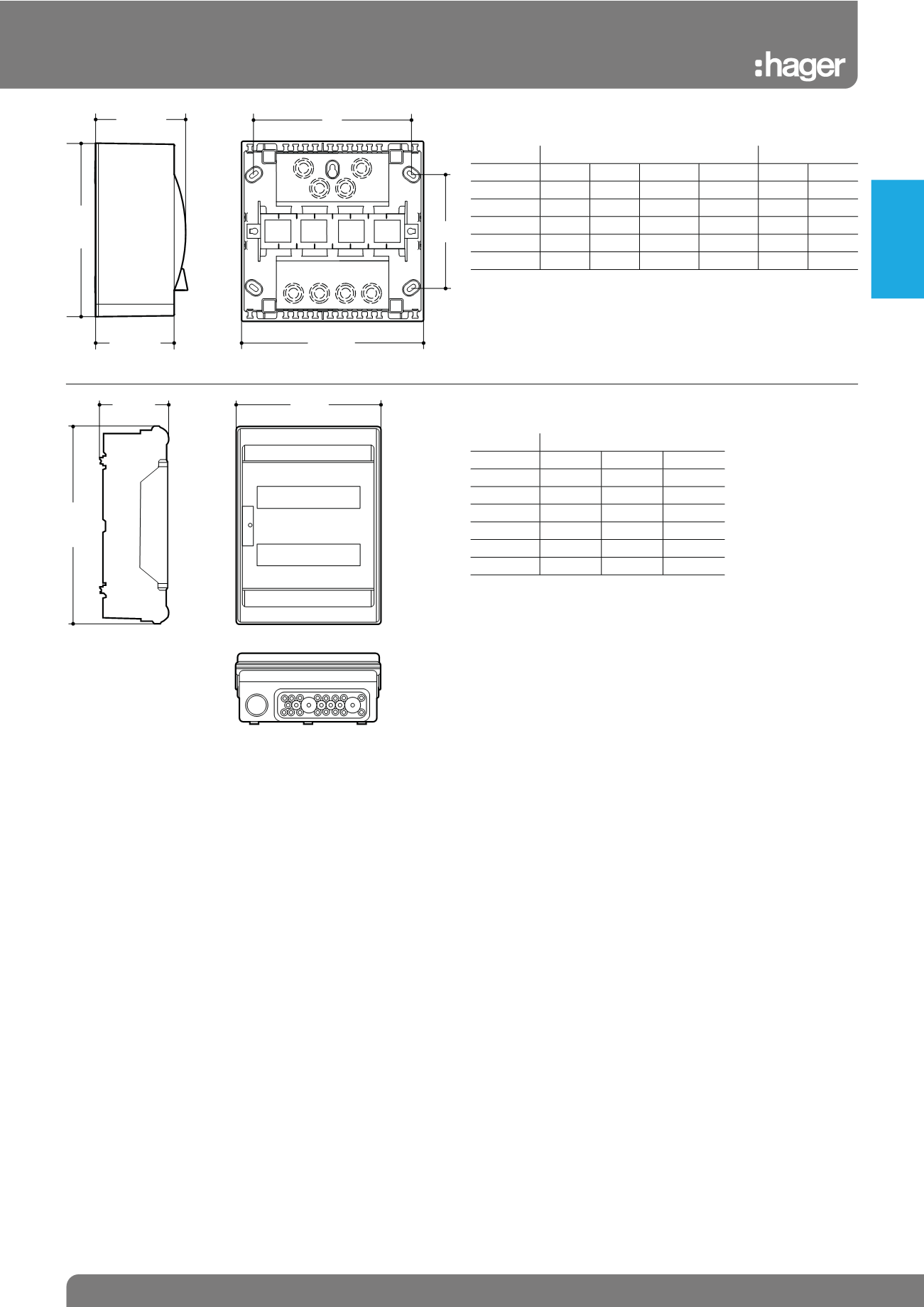

Dimensions

Mini Gamma & Vector II

Vector II Weatherproof Enclosures

Dimensions (mm)

Width Height

Depth

VE103U

110

175

93

VE106U

164

190

113

VE110U

236

210

114

VE112U

310

302

151

VE212U

310

427

151

VE312U

310

552

151

Mini Gamma

Dimensions (mm)

Fixing Centres

Width Height Depth A Depth B A B

GD102E

55

160 94

82

N/A N/A

GD104E

110 180 94

82

86

114

GD106E

146 180 94

82

122 114

GD108E

182 180 94

82

159 114

GD110E

218 180 94

82

195 114

Height

Depth A

Depth B

B

Width

A

Width

Depth

Height
