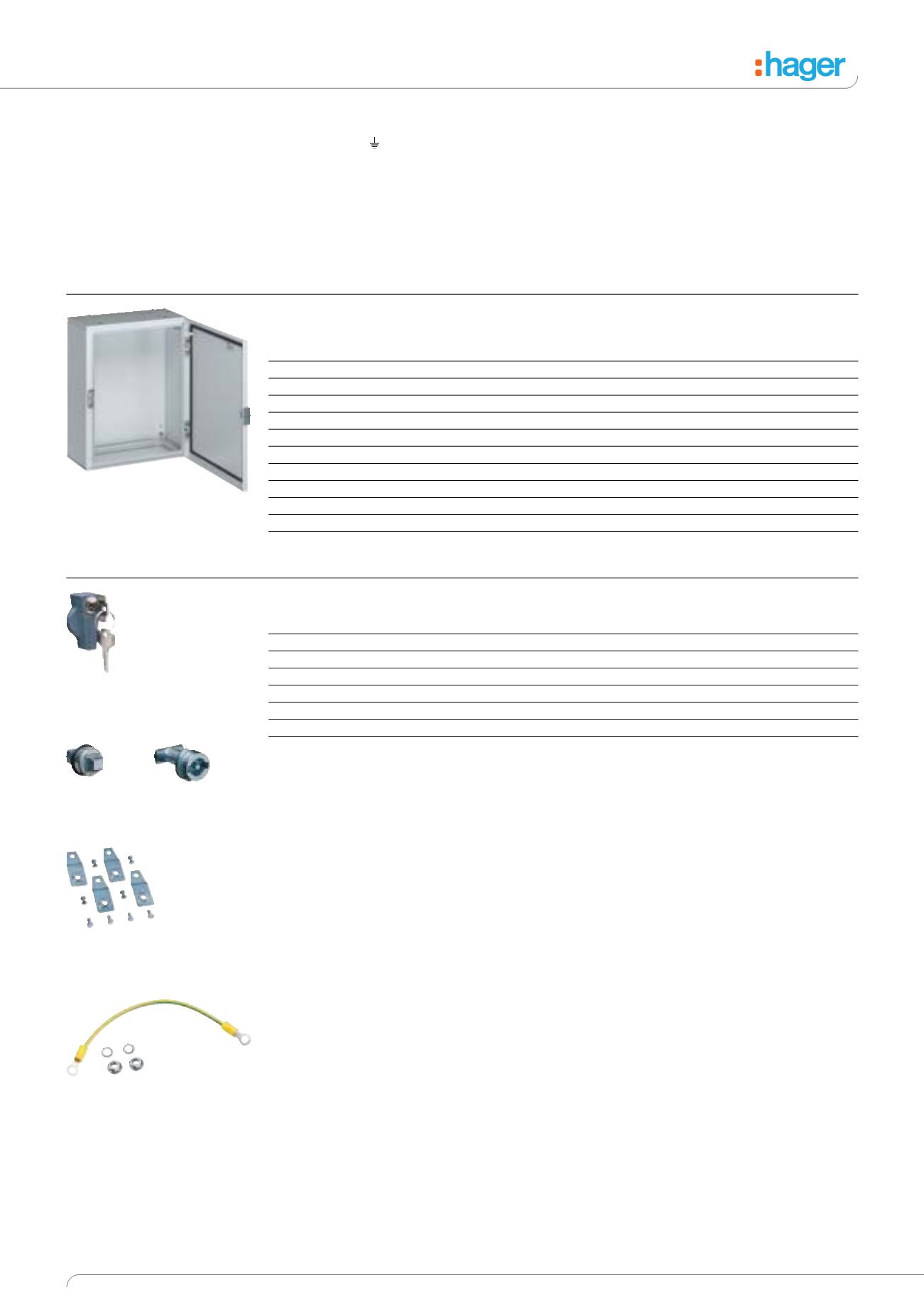

General Catalogue • Enclosures
Orion Plus Metal IP65 Enclosures & Accessories
Enclosures with plain door
steel colour RAL 7035
insulation class : I
IP 65
/ door closed
according to BS EN 60529
1.5mm thick sheet steel for
body and door
These enclosures feature:
• 2 removable gland plates for
cable entry on top and
bottom
• Earth studs on both body and
door
• Door easily removable
• Plain door equipped with one
or two locks with triangular
8mm bit centres, located out
of the sealed area
Options:
• Key lock
• Wall fixing brackets
• Mounting plate
• Equipment kits for modular
devices
For full dimensions see page
2.22.
Orion Plus Metal Enclosures
Dimensions
No. of
Cat ref.
Cat ref.
Height x Width x Depth (mm)
locks
Plain door
Glazed door
300 x 250 x 160
1
FL102A
-
350 x 300 x 160
1
FL104A
FL154A
350 x 300 x 200
1
FL105A
FL155A
500 x 300 x 200
1
FL110A
FL160A
500 x 400 x 200
1
FL112A
FL162A
650 x 400 x 200
2
FL117A
FL167A
650 x 400 x 250
2
FL118A
FL168A
650 x 500 x 250
2
FL120A
FL170A
800 x 600 x 300
2
FL124A
FL174A
950 x 600 x 300
2
FL126A
FL176A
950 x 800 x 300
2
FL128A
FL178A
Orion Plus Metal Enclosure Accessories
Description
Cat ref.
Key lock to be mounted on the triangular lock
FL96Z
1 set of 2 key locks with male square 8mm, with 1 key
FL80Z
Key lock for FL201B
FL94Z
1 set of 2 locks doublebars 3mm with 1 key
FL95Z
Metallic wall fixing brackets with screws (set of 4)
FL85Z
Kit for earth connection (for metal enclosures)
FL874A
Orion Plus spray paint kit (RAL7035)
FL672Z
FL110A
FL96Z
FL80Z
FL95Z
FL85Z
FL874A
